Economic Policy Visualization
Income · Geometries
October 28, 2024
Income accounts in the System of National Accounts show primary (from production) and secondary (from redistribution) income flows. It is also the base for functional distribution:
Gross domestic product (GDP) at market prices
\(+\) Primary incomes receivable from the rest of world
\(-\) Primary incomes payable to the rest of world
\(=\) Gross national income (GNI) at market prices
\(-\) Consumption of fixed capital
\(=\) Net national income at market prices
\(-\) Taxes on products
\(+\) Subsidies on products
\(=\) Net national income at factor cost
← Rest of World
← Depreciation
← Government
← Production factors

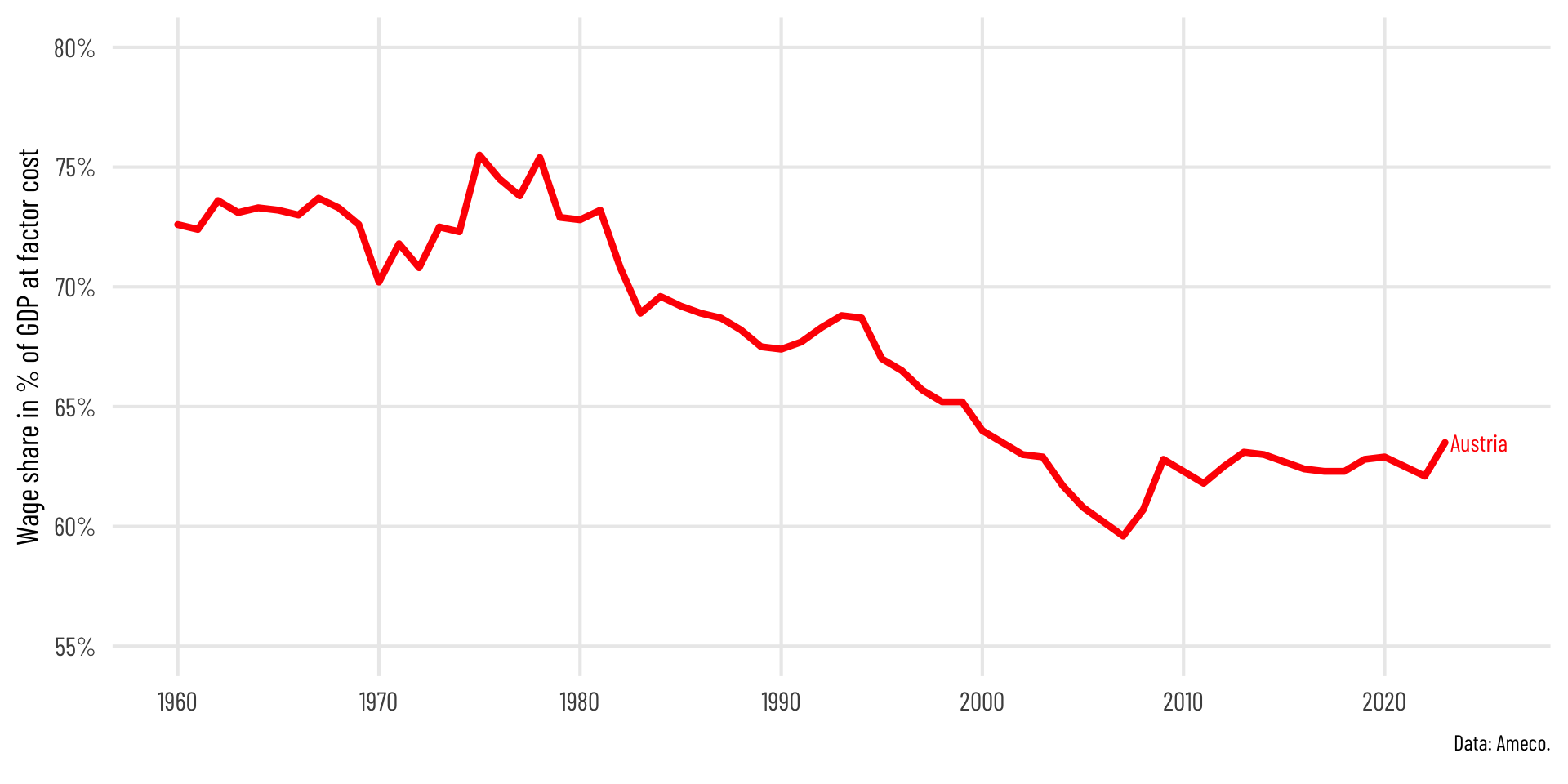

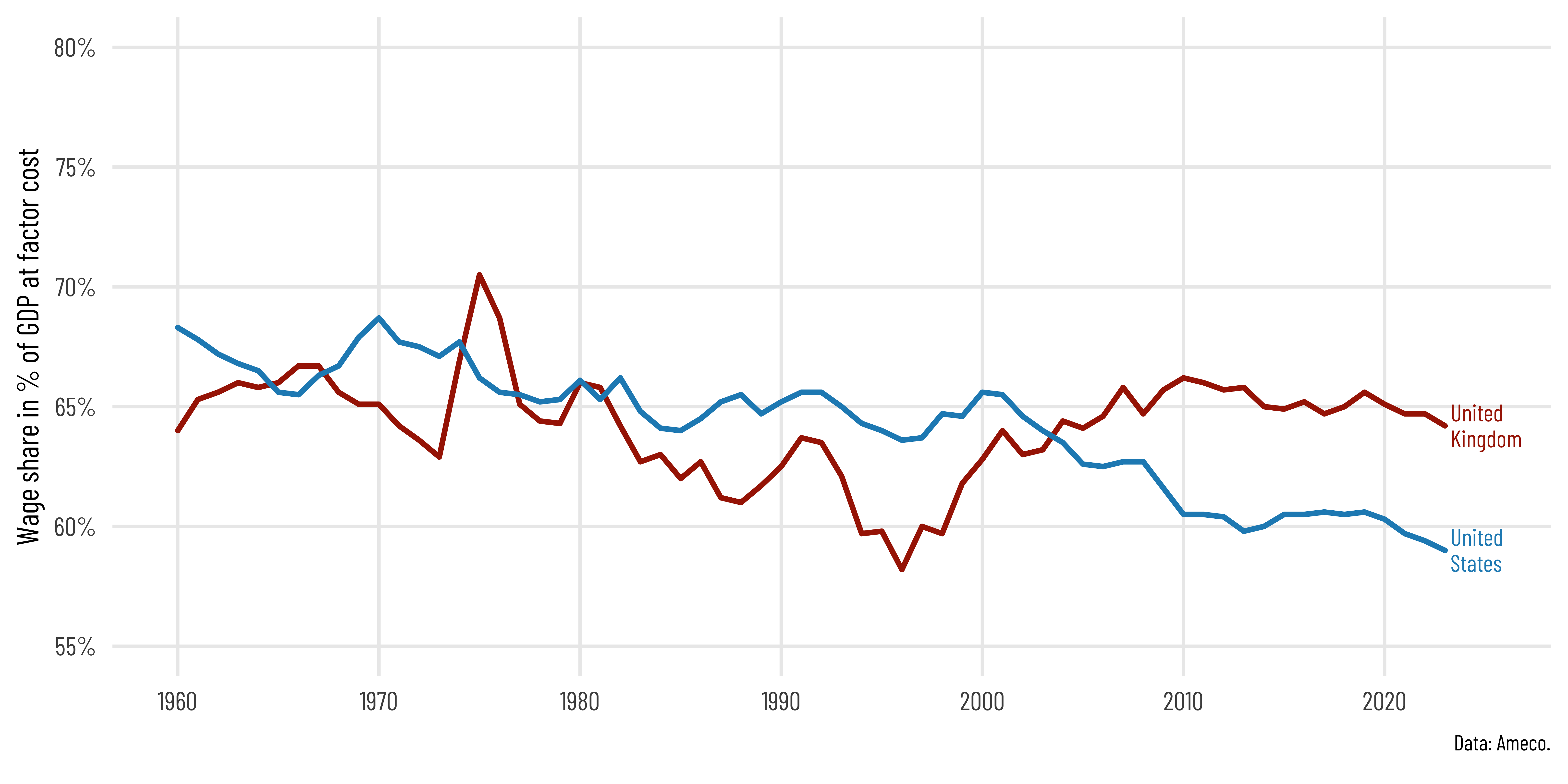

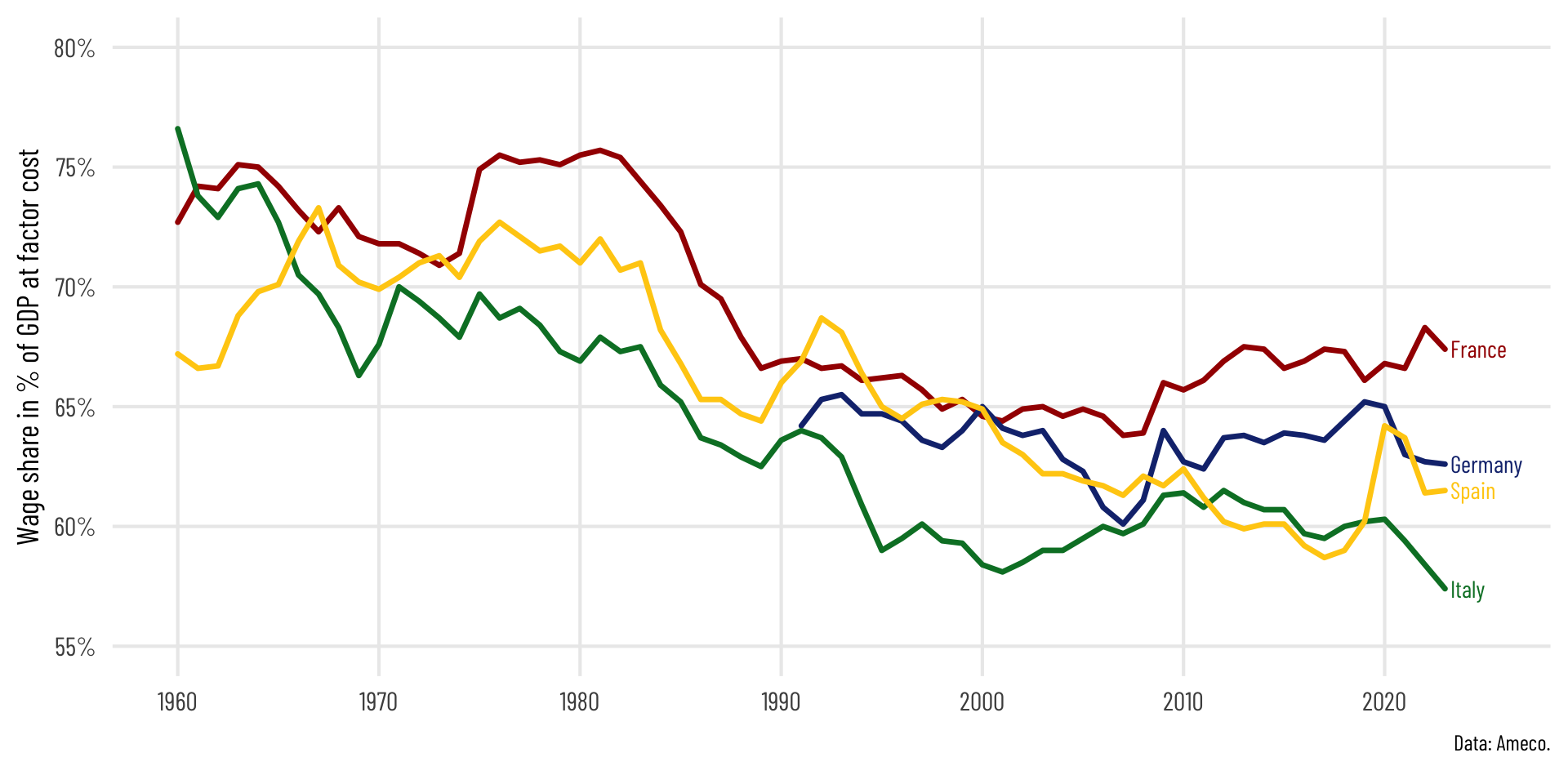

Wage share = Compensation of Employees / Net national income at factor cost
Geometry | Explanation | |
---|---|---|

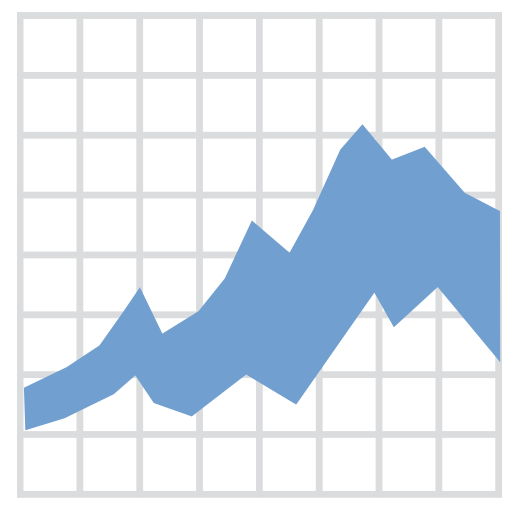

area, ribbon | An area plot is the continuous analogue of a stacked bar chart. | |

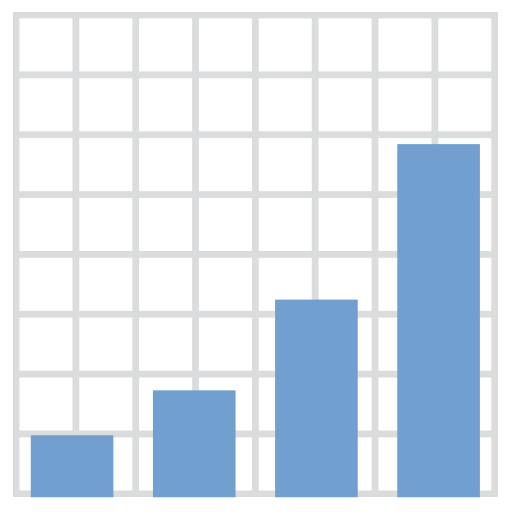

bar, col | Bar charts may be proportional (bar) or with absolute values (col). | |
boxplot | The boxplot compactly displays the distribution of a continuous variable. | |

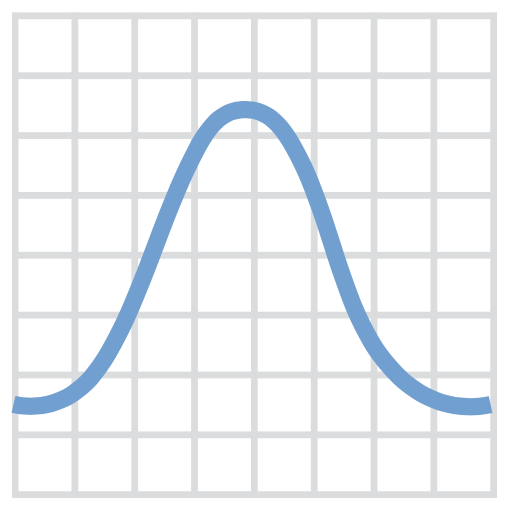

density, histogram | Kernel density plot, which is a smoothed version of the histogram. | |

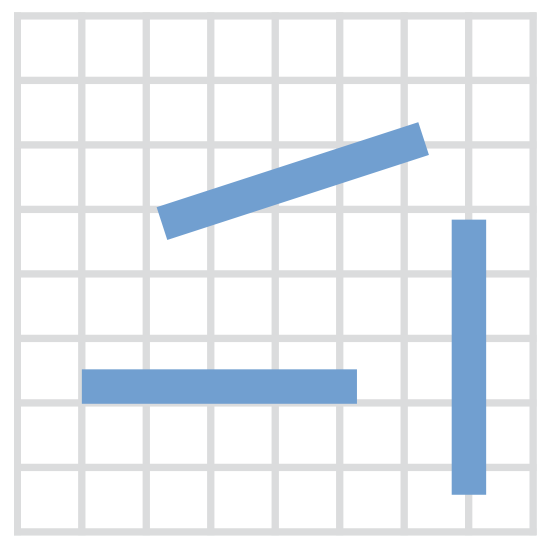

hline, vline, abline | Draws a horizontal or vertical line with an intercept or a line with a slope. | |

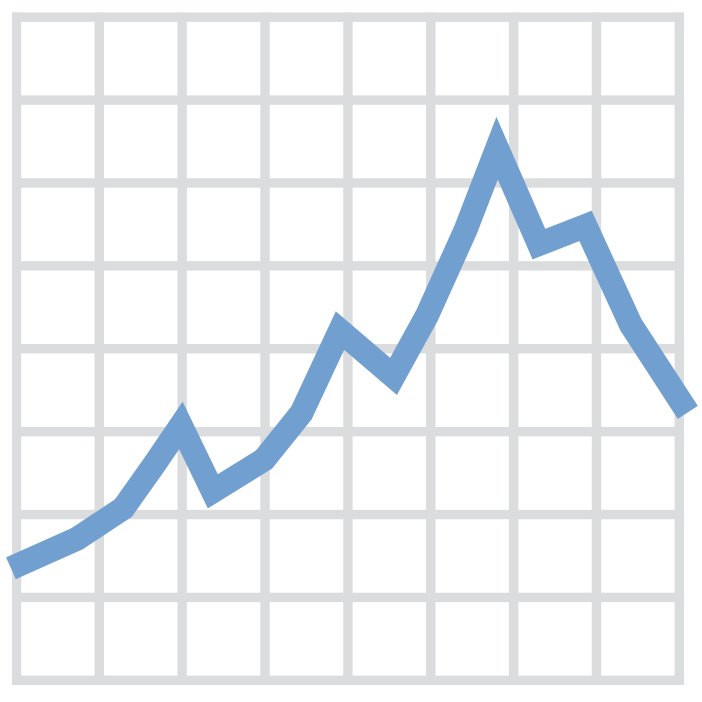

line, path | Line between observations in order of variable (line) or appearance (path) | |
linerange, errorbar | Various ways of representing a vertical interval defined by x, ymin and ymax. | |

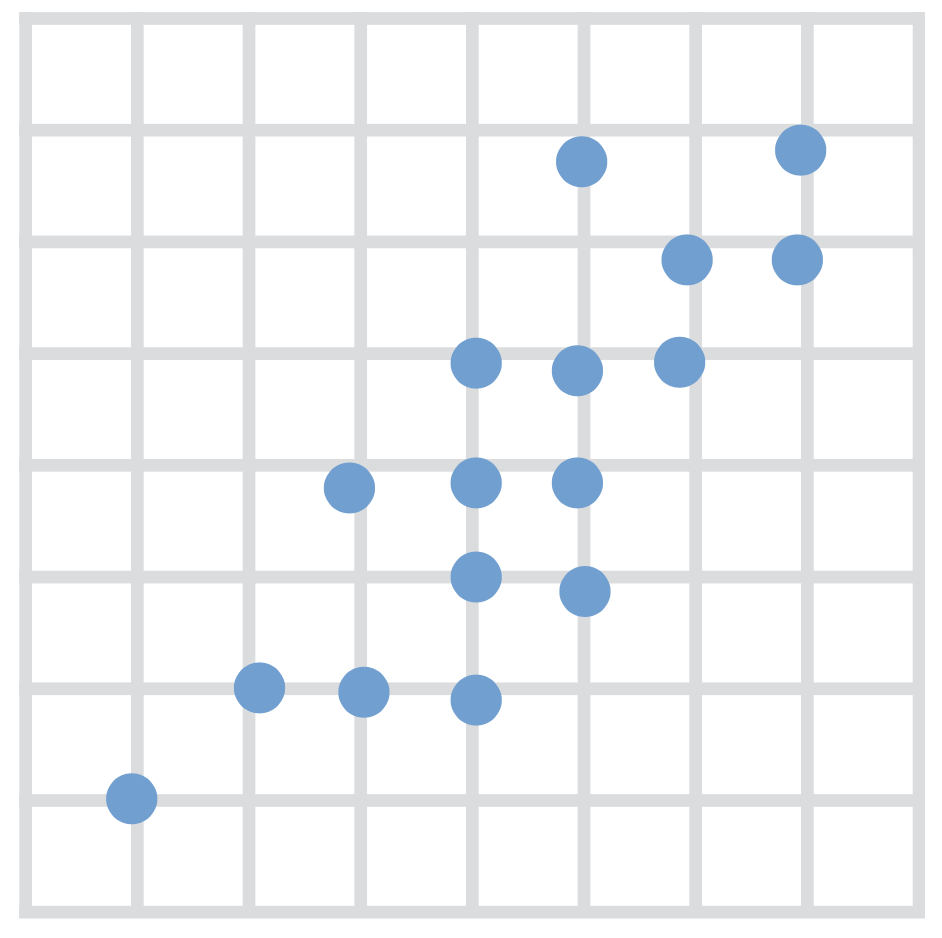

point, jitter | The point geom is used to create scatterplots and jitter avoids overplotting. | |
segment, curve | Draws a straight or curved line between points (x,y) and (xend, yend). | |
smooth | Smoothed line with standard error bounds across a scatterplot. | |

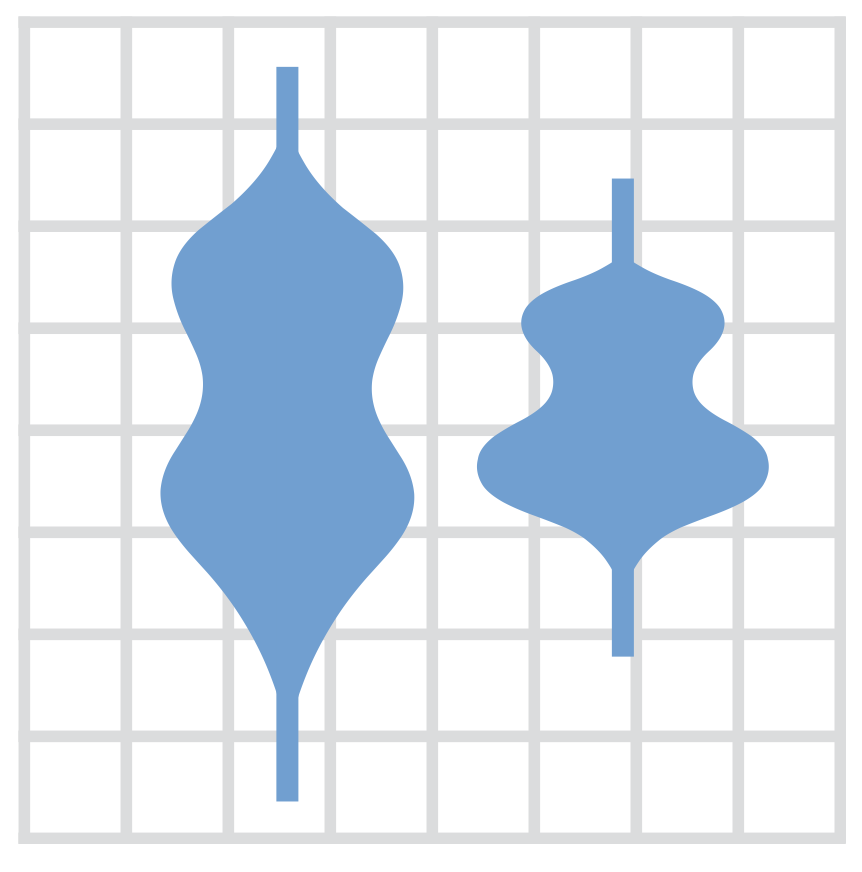

violin | A violin plot is a compact display of a continuous distribution. |

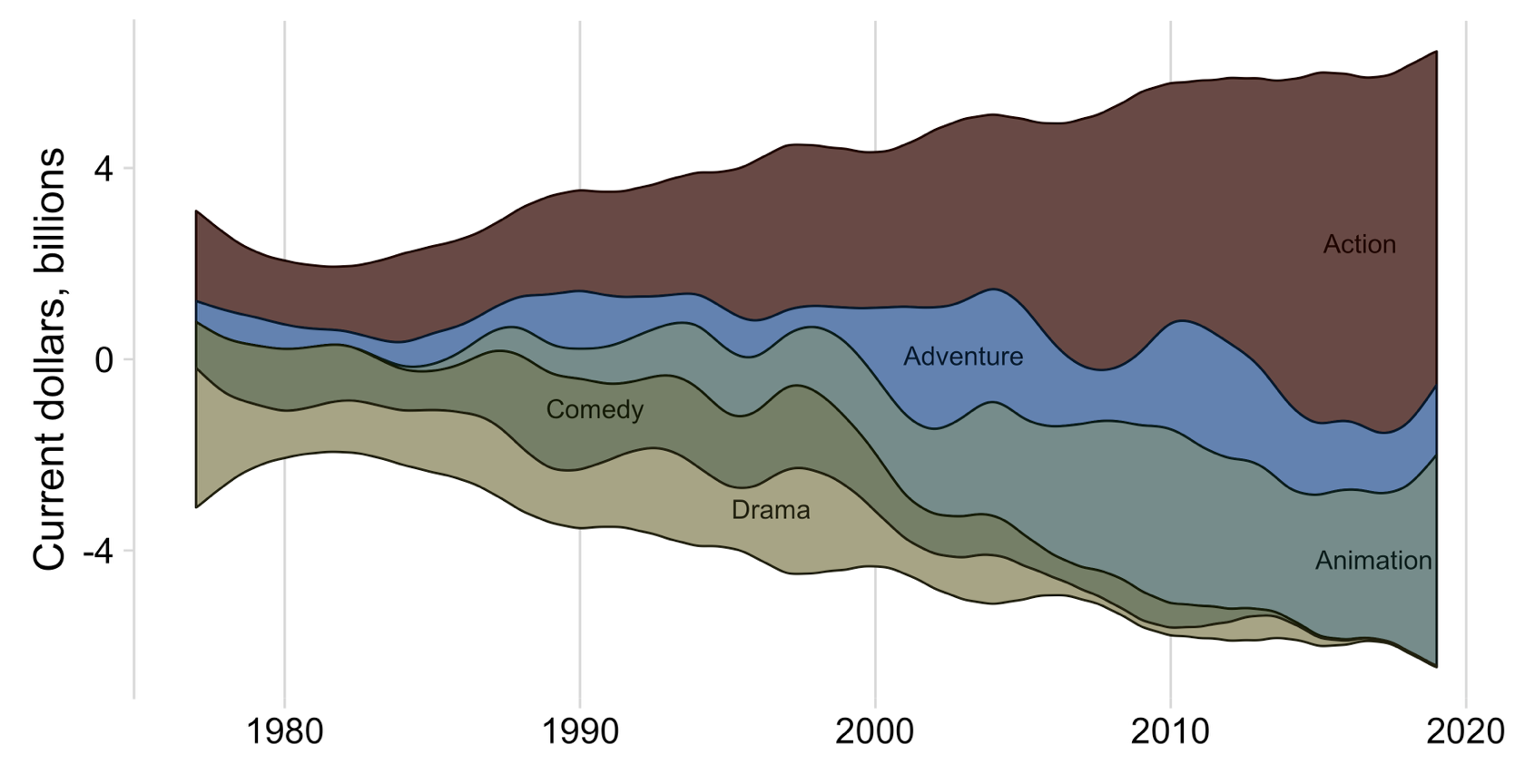

ggstream::geom_stream()

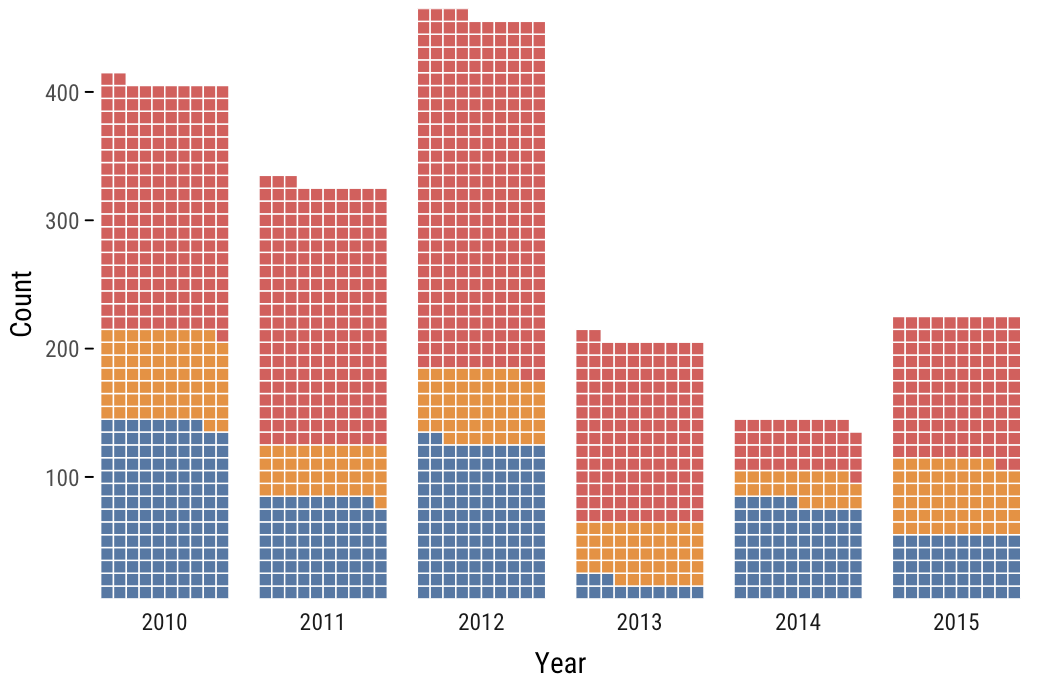

waffle::geom_waffle()

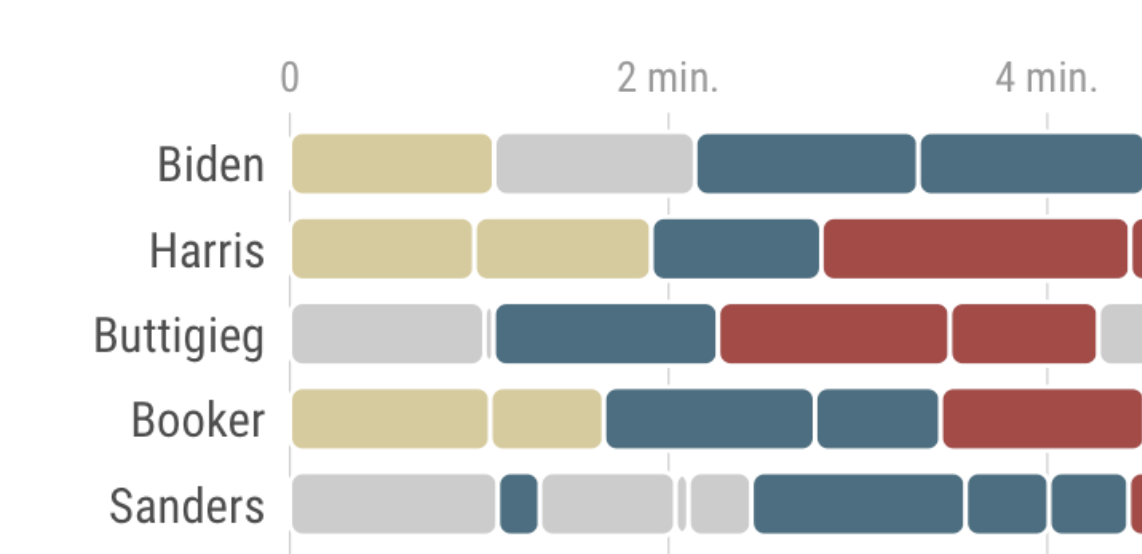

ggchicklet::geom_chicklet()

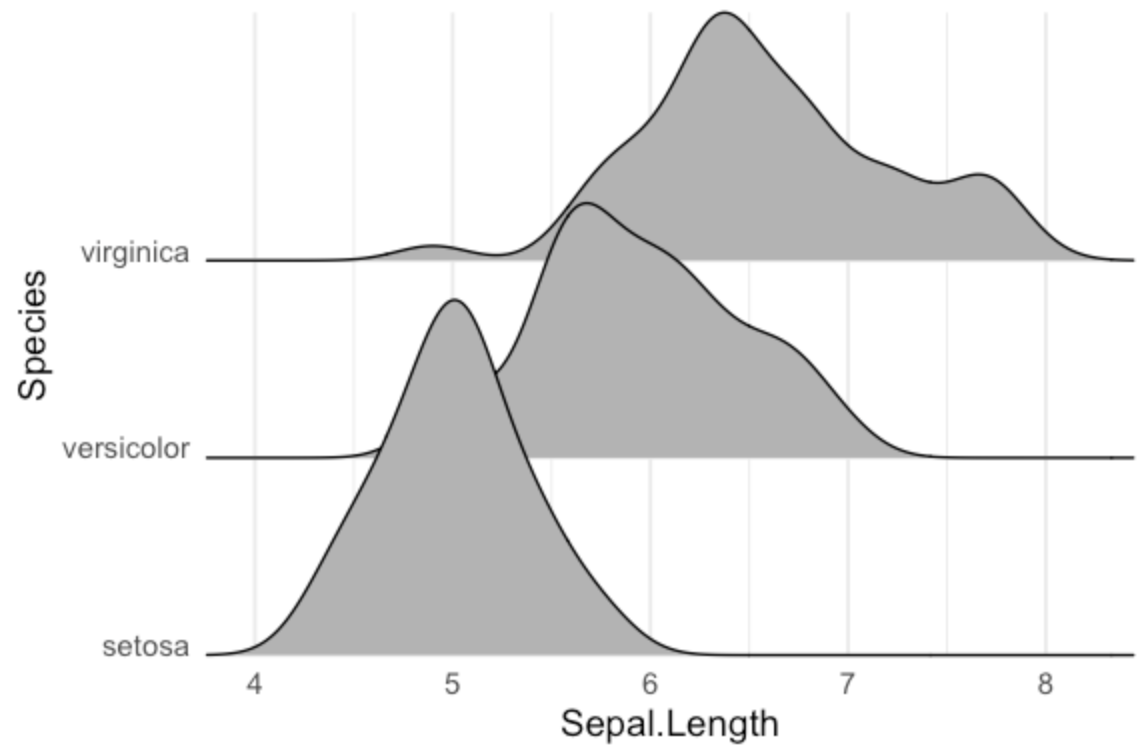

ggridges::geom_density_ridges()

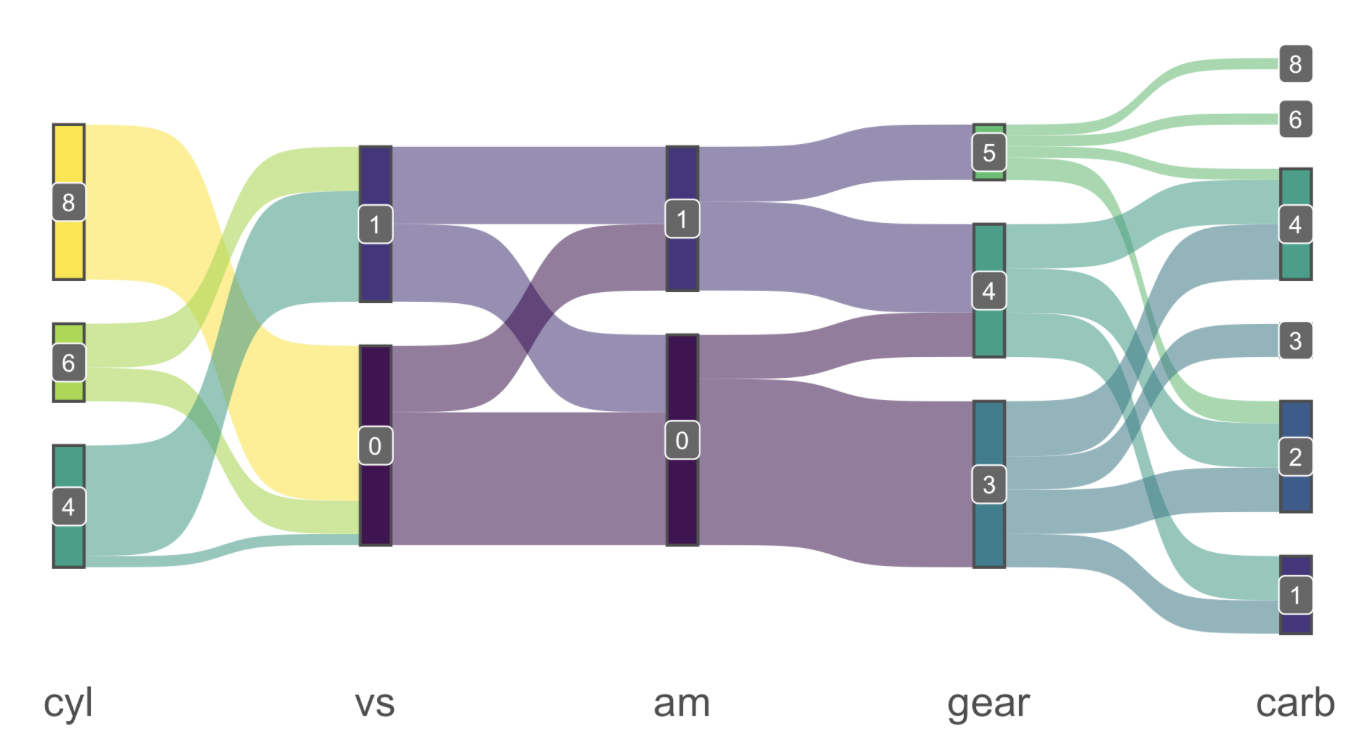

ggsankey::geom_sankey()

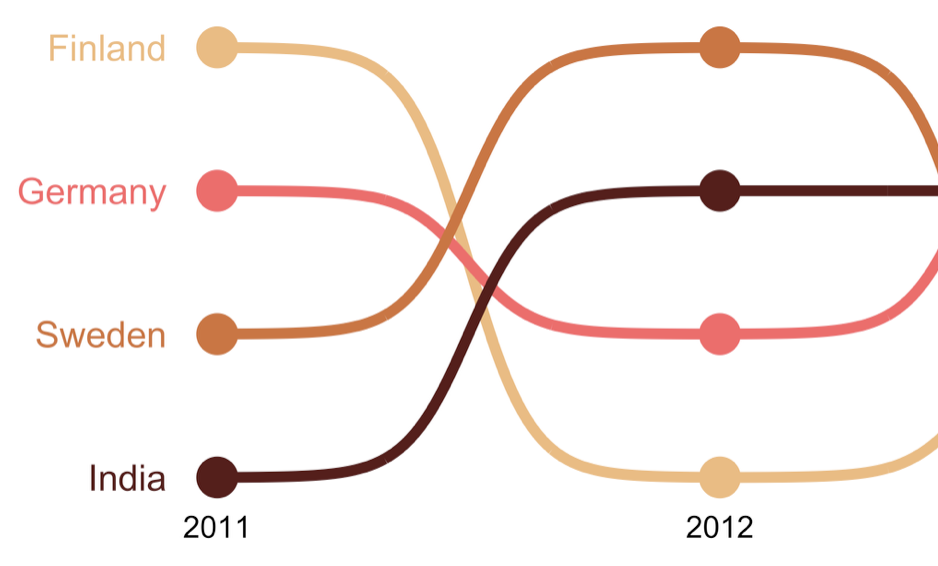

ggbump::geom_bump()
