Economic Policy Visualization

Visualization

Dr. Matthias Schnetzer

October 21, 2024

Pioneers of data visualization

William Playfair (1759-1823)

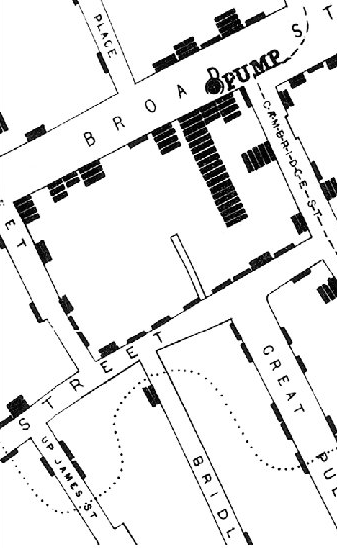

John Snow (1813-1858)

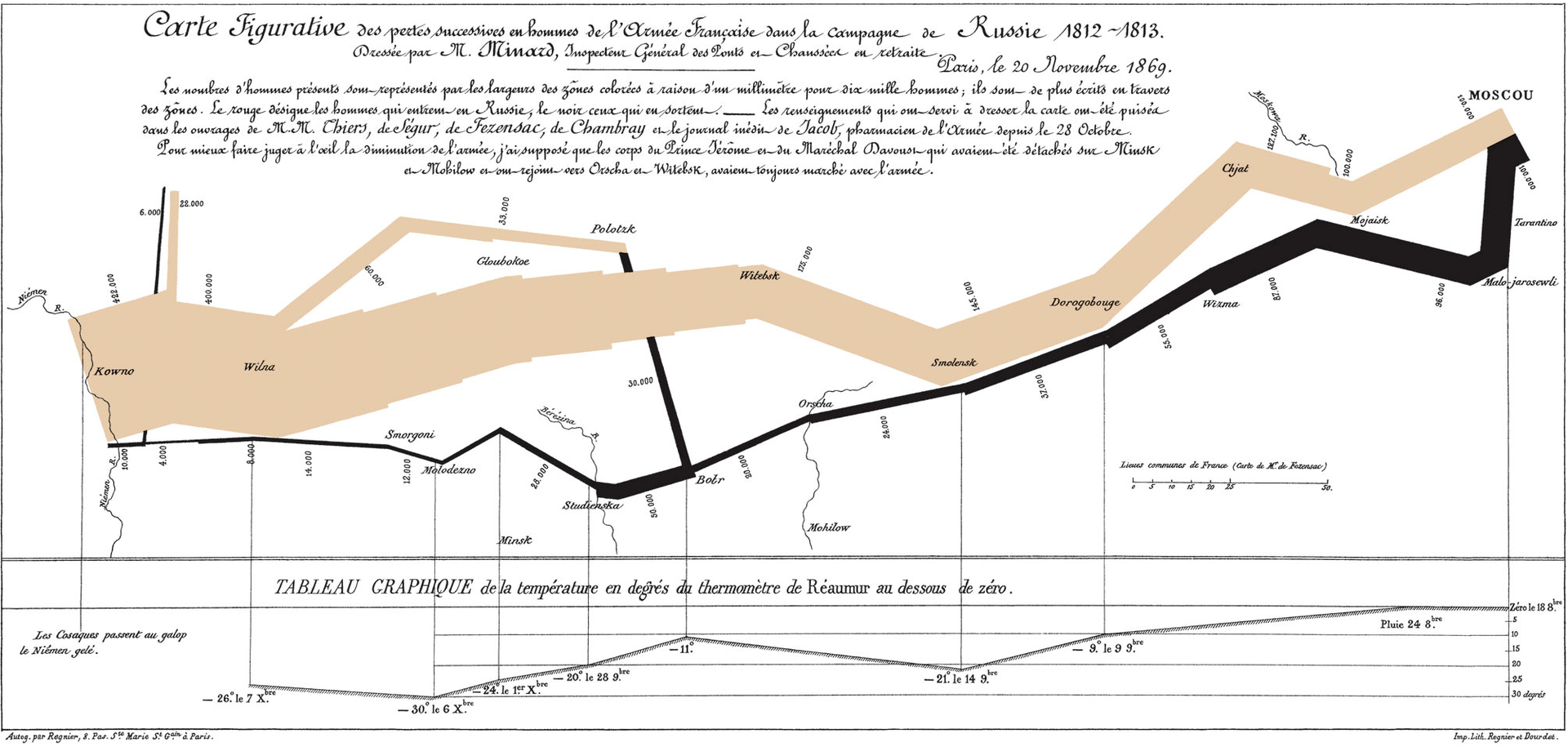

Charles Joseph Minard (1781-1870)

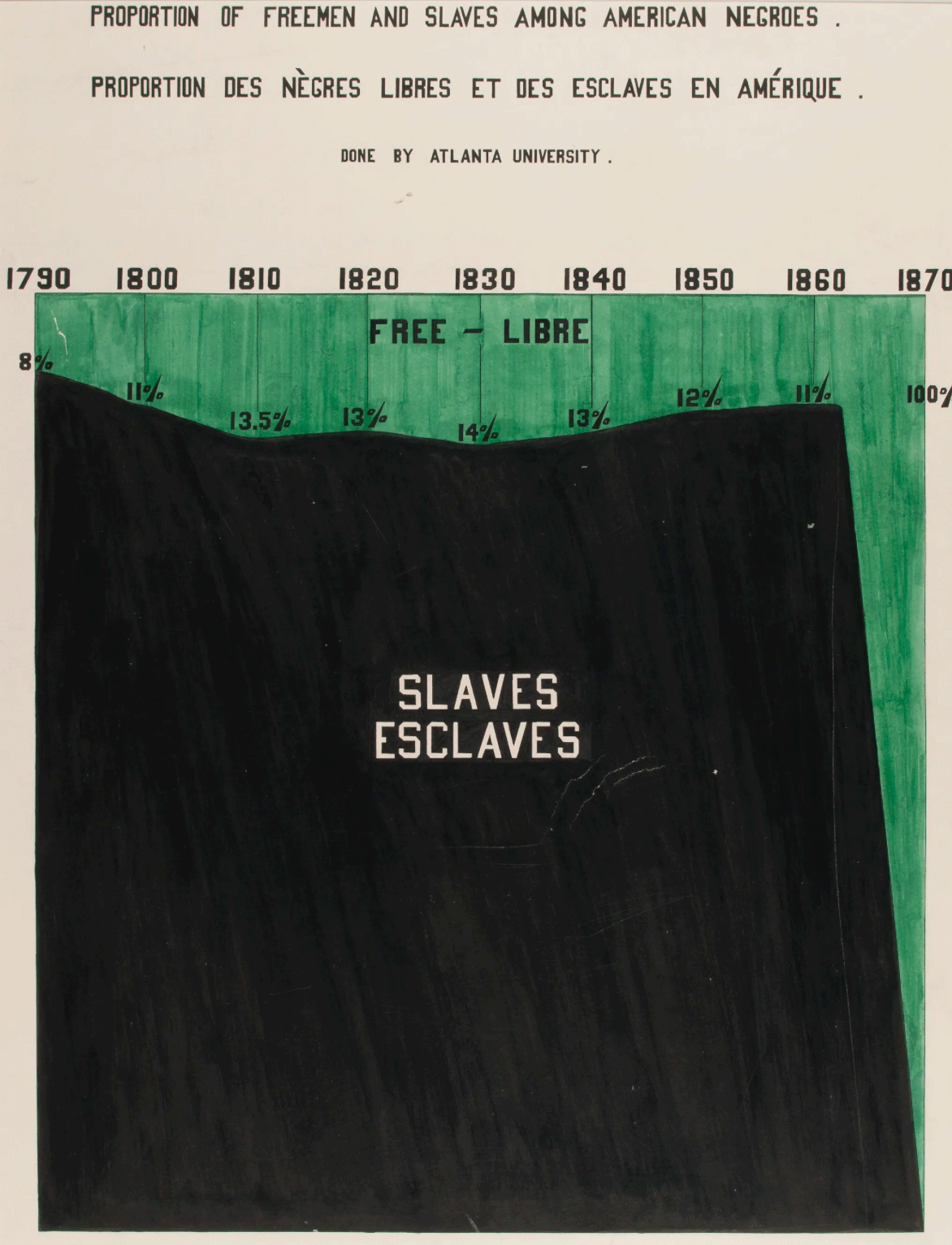

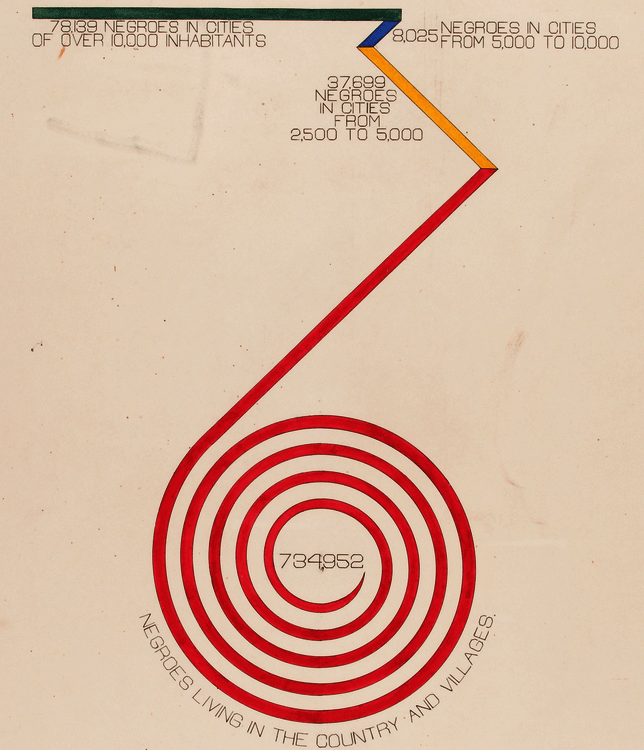

W.E.B. Du Bois (1868-1963)

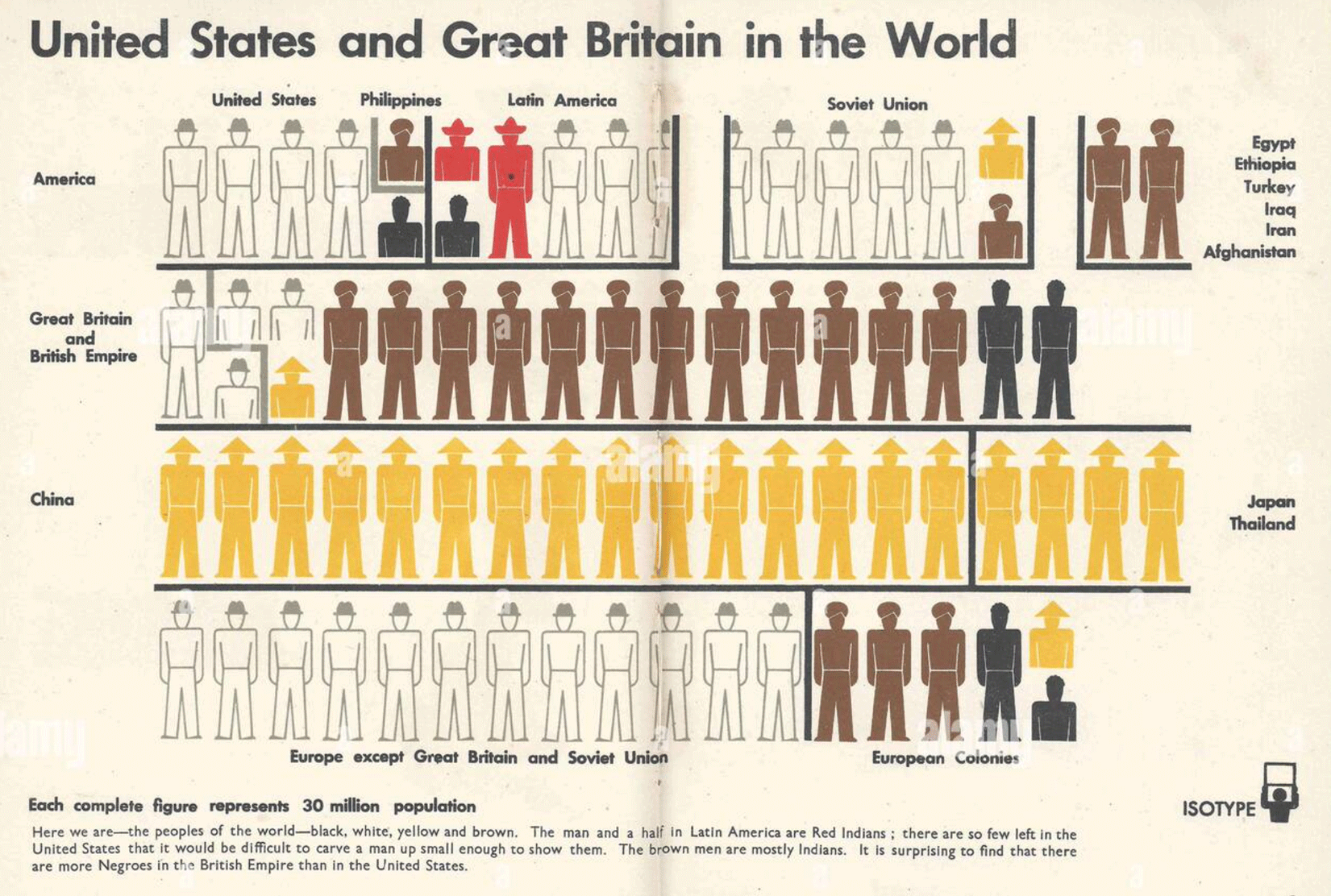

Otto Neurath (1882-1945)

Five guidelines for better visualization

1. Choose the adequate type of graph

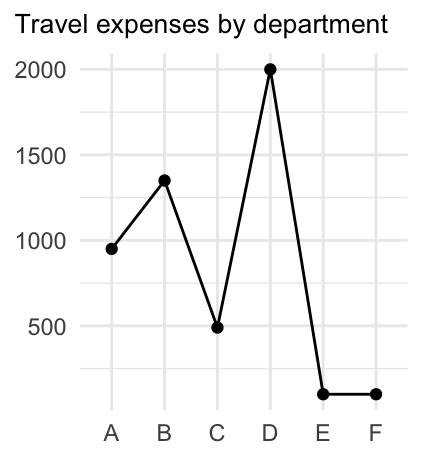

Bad:
── Attaching core tidyverse packages ──────────────────────── tidyverse 2.0.0 ──
✔ dplyr     1.1.4     ✔ readr     2.1.5
✔ forcats   1.0.0     ✔ stringr   1.5.1
✔ ggplot2   3.5.1     ✔ tibble    3.2.1
✔ lubridate 1.9.3     ✔ tidyr     1.3.1
✔ purrr     1.0.2
── Conflicts ────────────────────────────────────────── tidyverse_conflicts() ──
✖ dplyr::filter() masks stats::filter()
✖ dplyr::lag()    masks stats::lag()
ℹ Use the conflicted package (<http://conflicted.r-lib.org/>) to force all conflicts to become errors








Good:

  • Choose a chart type with respect to your data (numeric, categorical, ranking, time series etc.)
  • What would you like to show: comparison, distribution, composition, relationship?
  • To help you find the adequate type from a myriad of alternatives, you can also take a look at https://www.data-to-viz.com and https://datavizproject.com

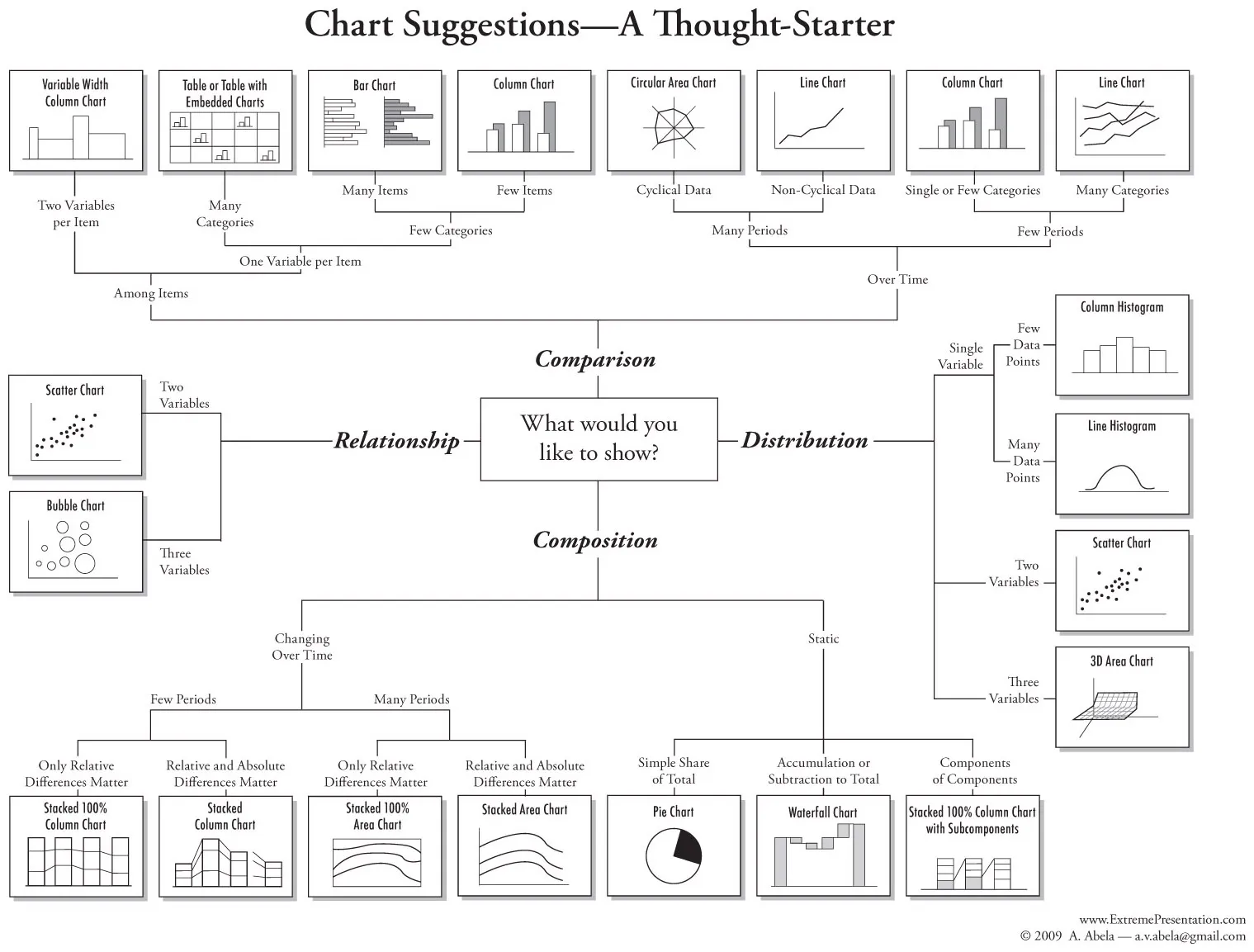

A simple decision tree of chart types

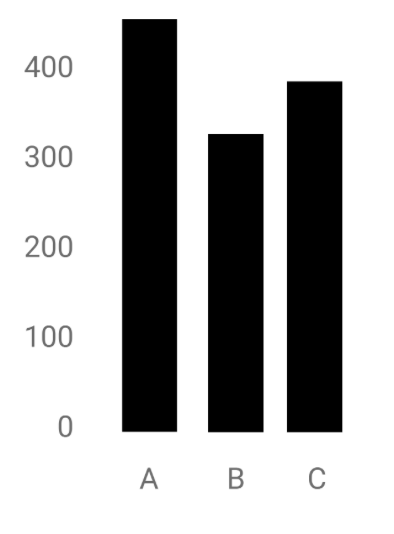

2. Visualize data accurately and faithfully

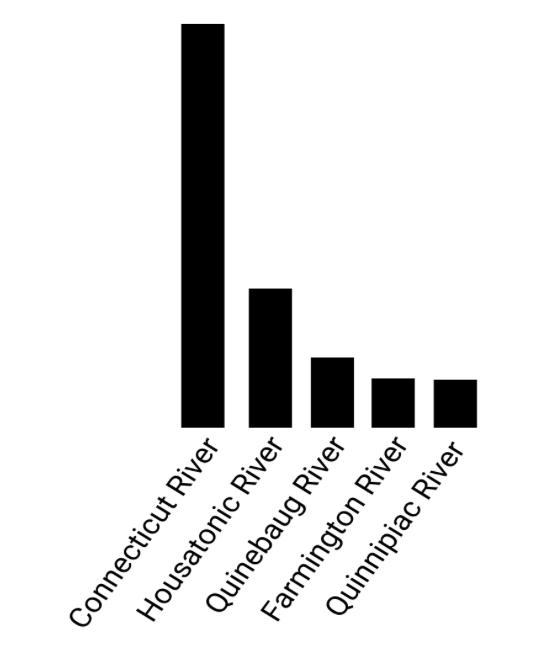

Bad:
Good:

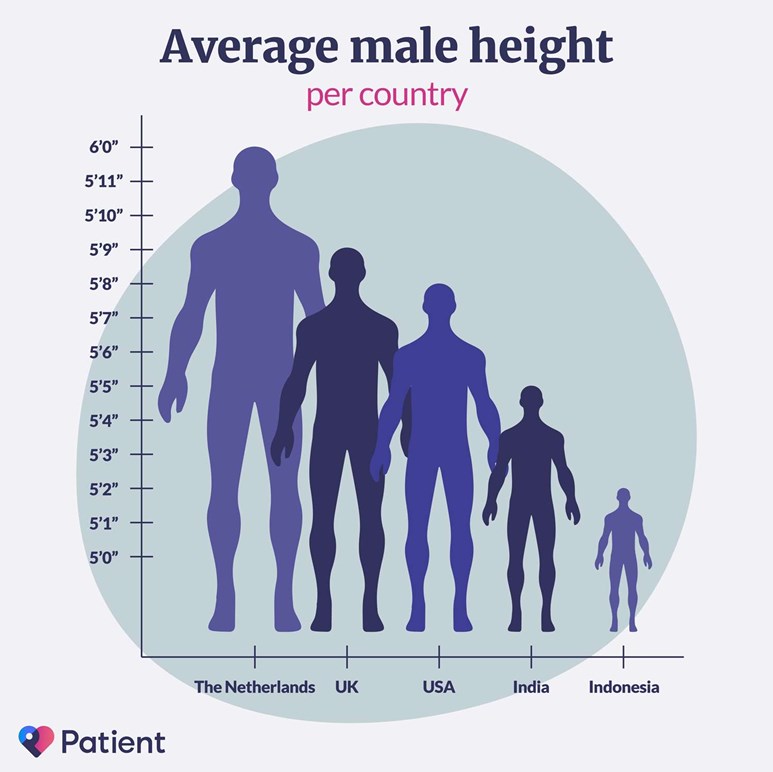

  • Prioritize data accuracy, clarity, and integrity

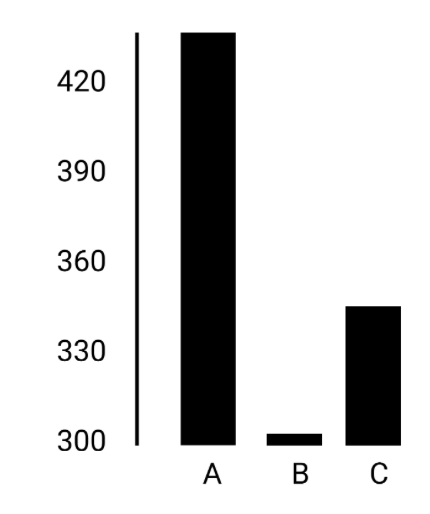

  • Avoid misleading the reader by truncating the y-axis, using two different y-axis, cherry-picking data, not providing context, etc.
  • A good story based on data visualization does not involve deceptive manipulation of the data!

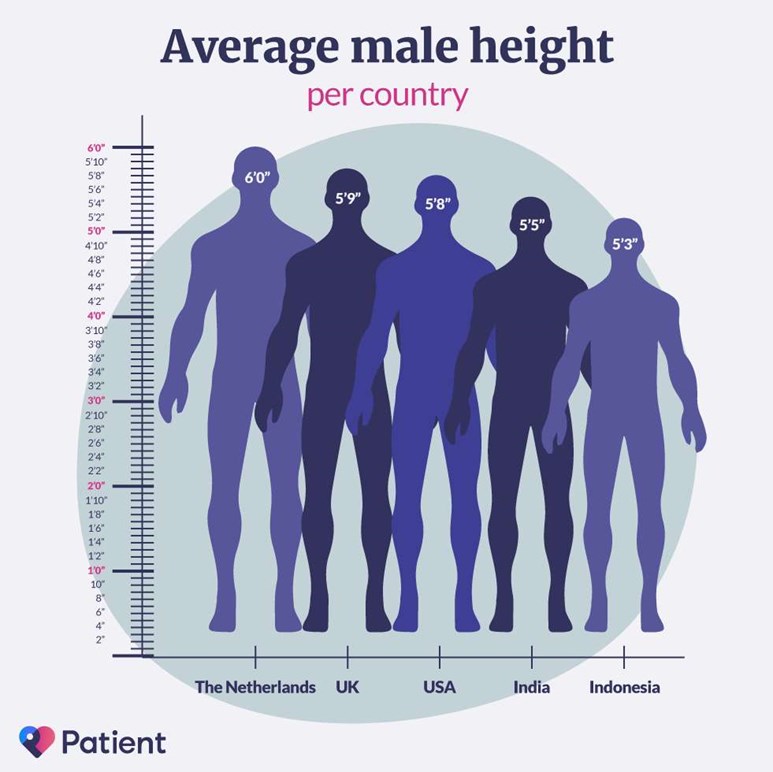

Example

Another example


A third example

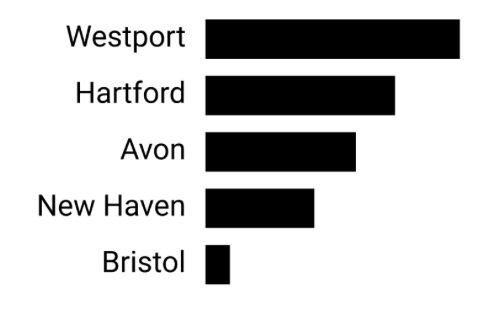

3. Integrate graphics and text

Bad:
Good:

  • Don’t make people turn their head to read labels
  • Think about a logical order of the chart (alphabetical, values)
  • Add direct labels rather than a legend

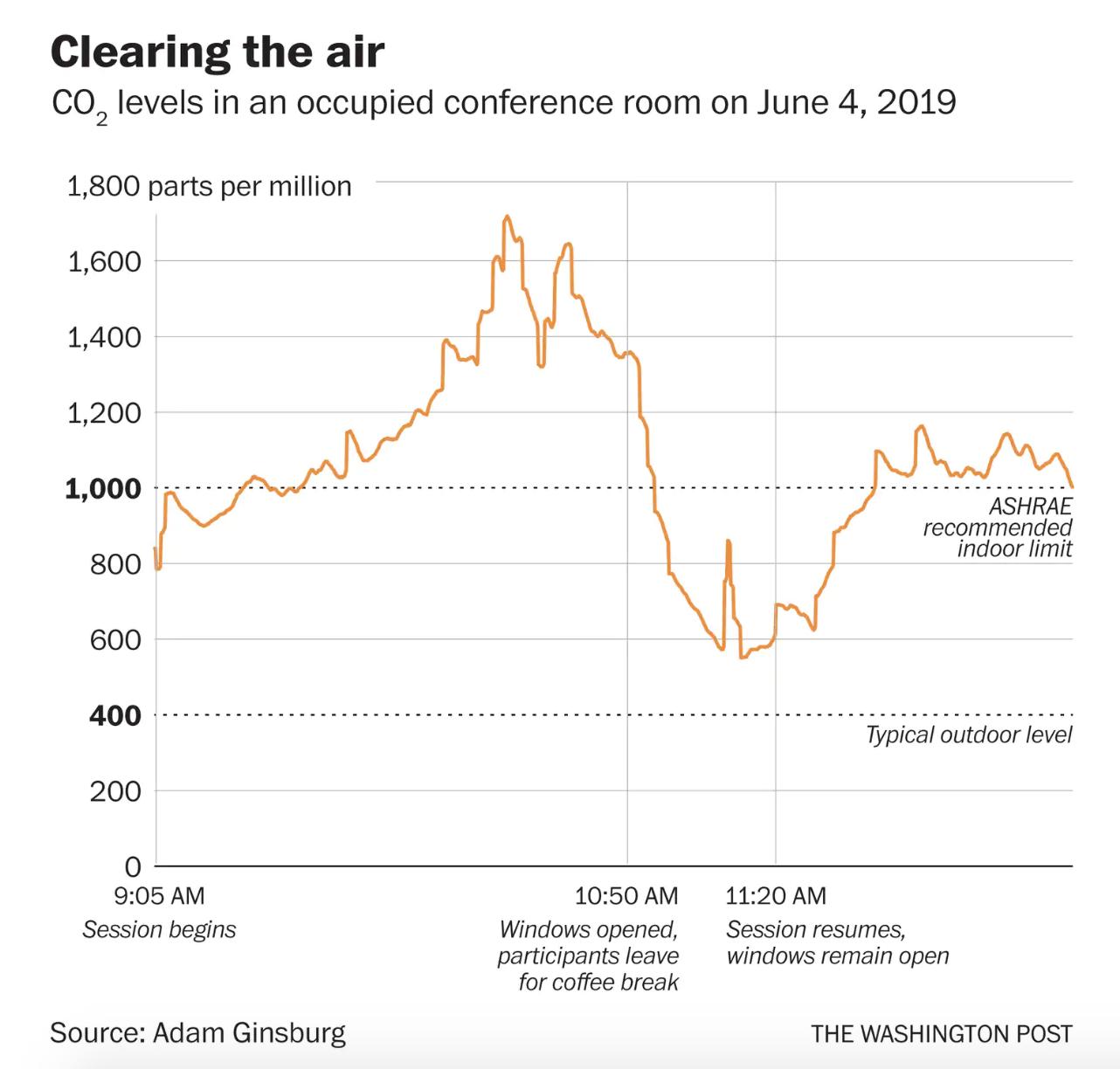

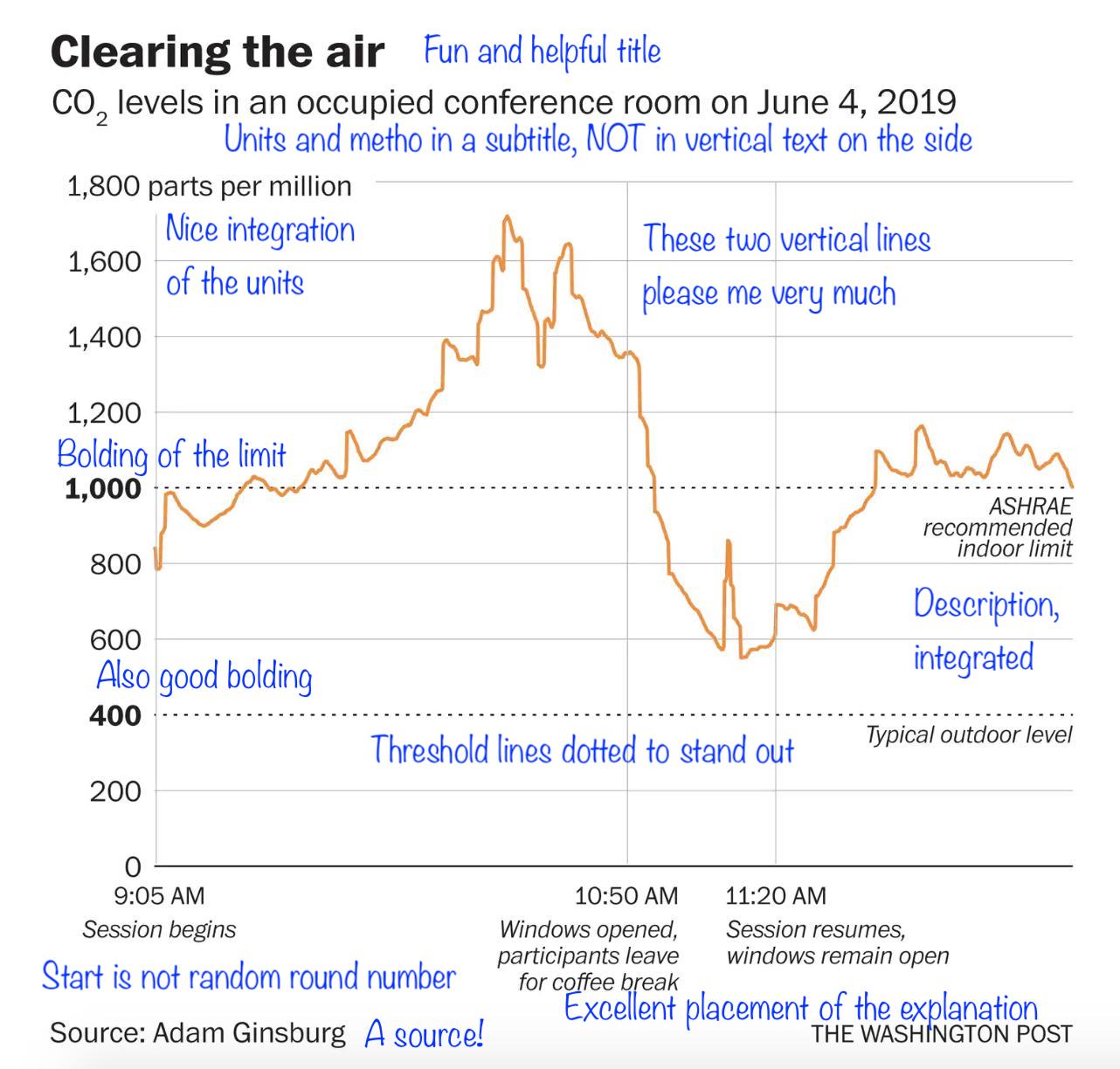

  • Choose a meaningful title that focuses on your message

Best practice

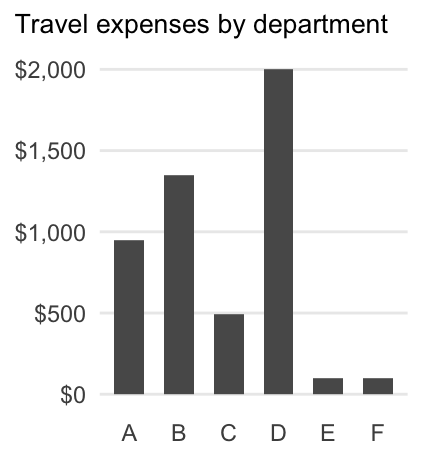

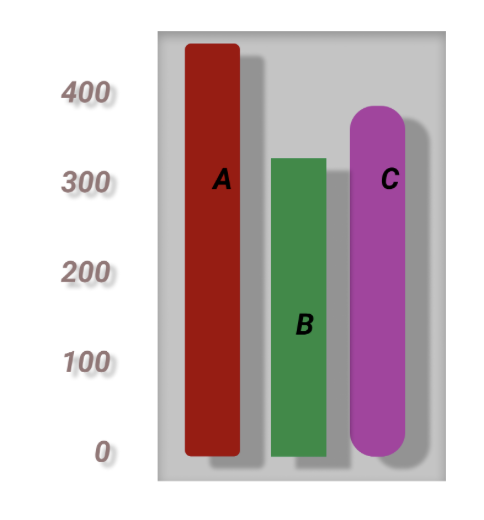

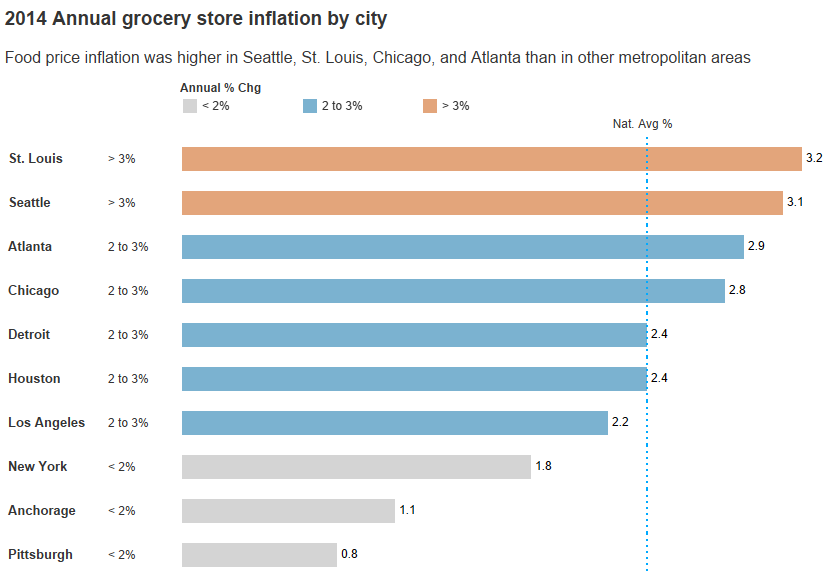

4. Reduce the clutter

Bad:
Good:

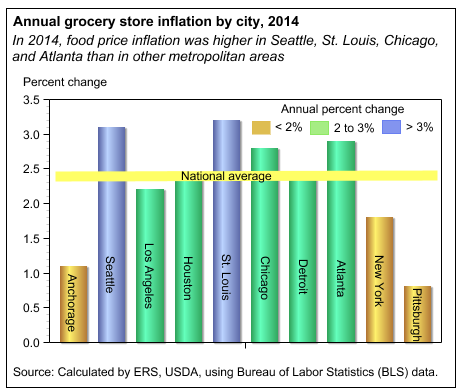

  • Unnecessary visual elements distract the readers from the central data
  • Avoid elements that do not contain information!
  • Basic elements like heavy tick marks or gridlines should be removed
  • Think carefully which visual elements are really needed to read the chart

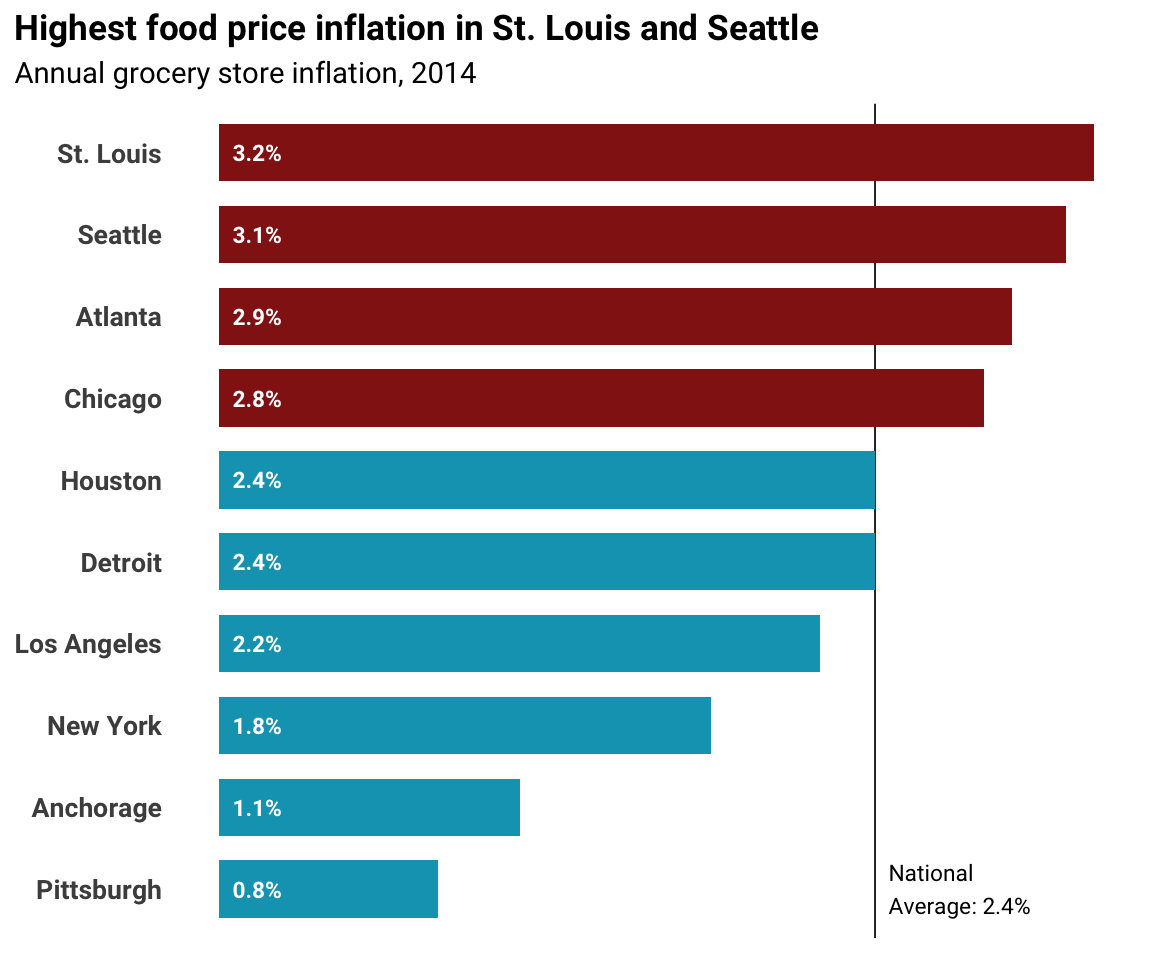

Best practice

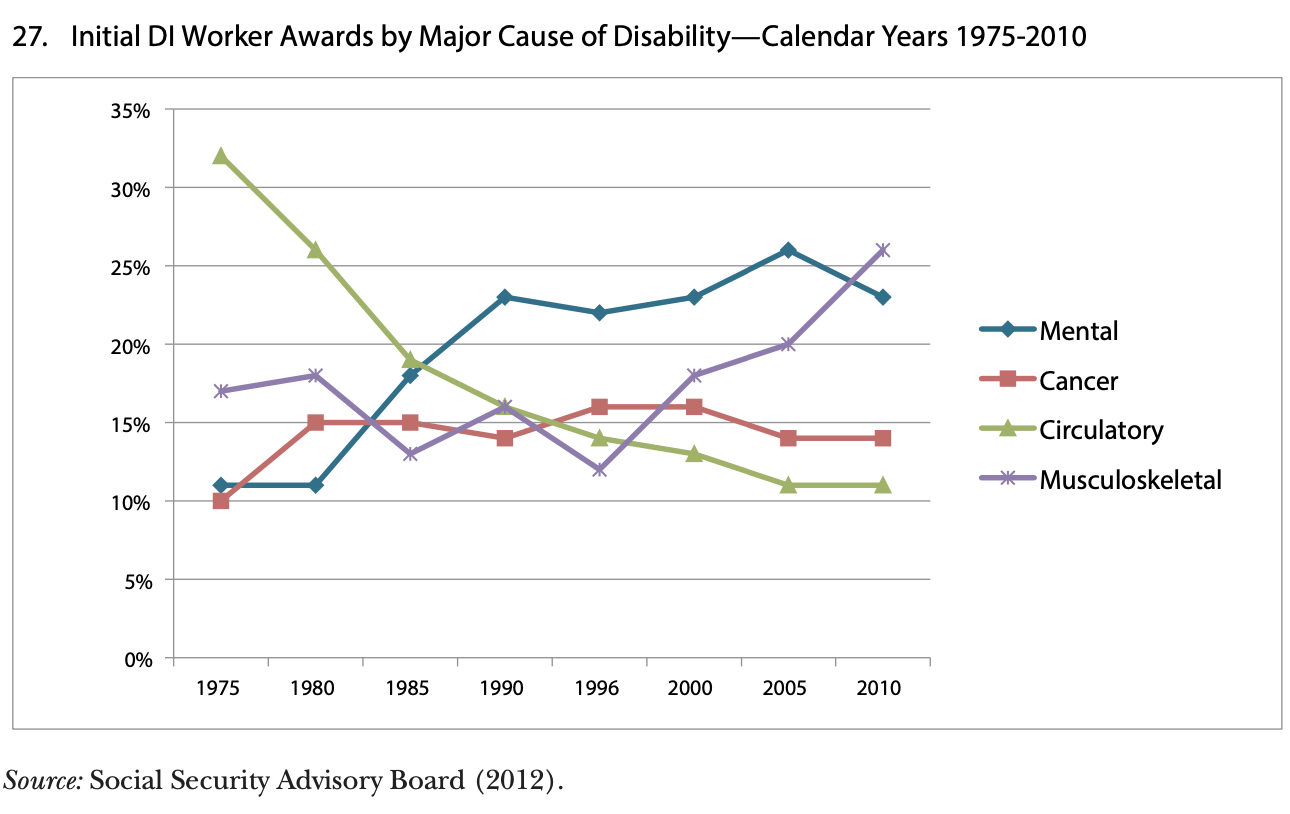

5. Avoid the spaghetti chart and start with gray

Bad:








Good:
Warning: Using `size` aesthetic for lines was deprecated in ggplot2 3.4.0.
ℹ Please use `linewidth` instead.

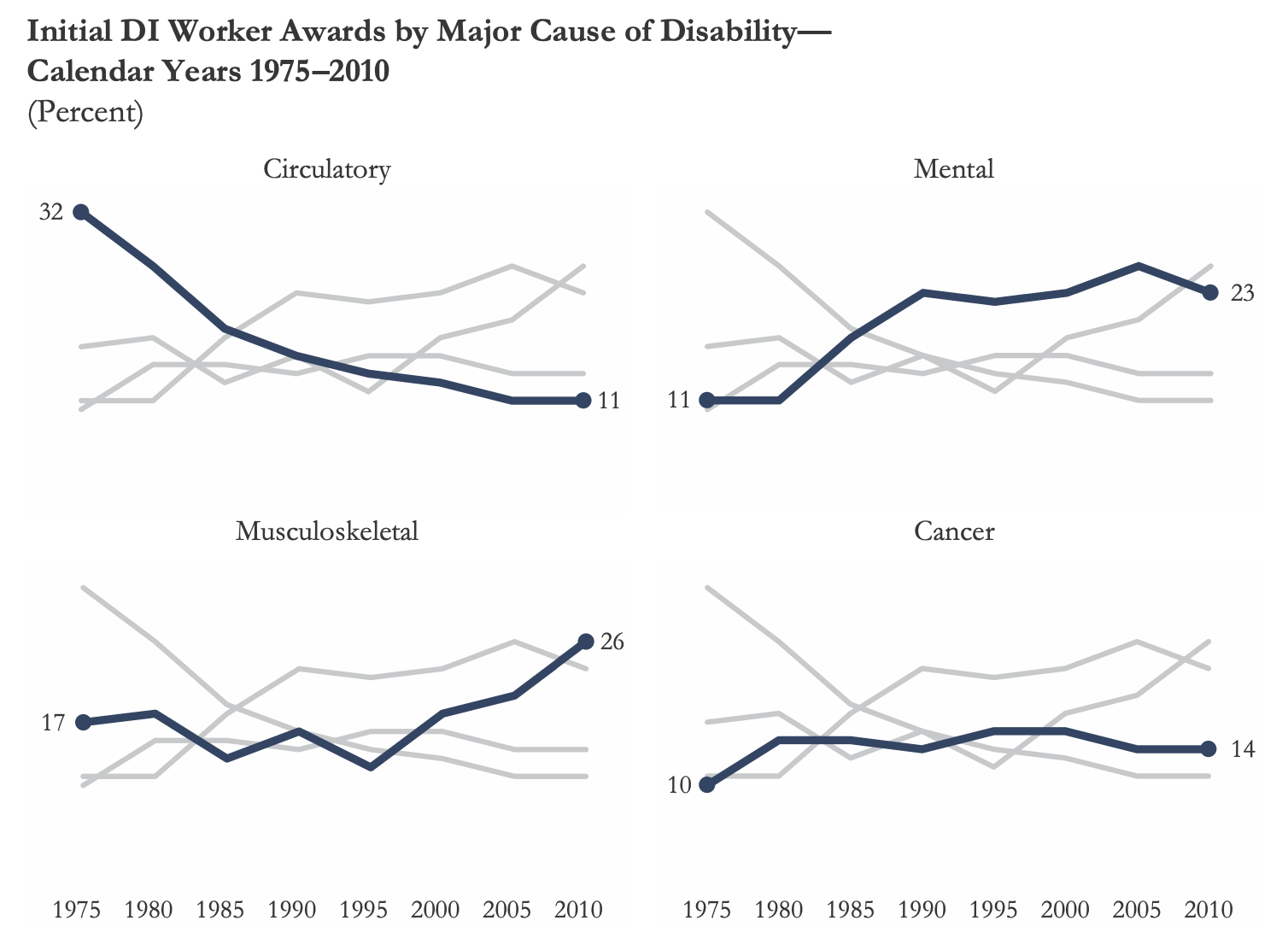

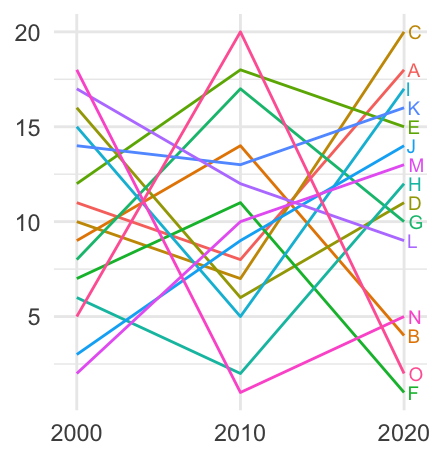

  • When the graph contains too much information, it looks like spaghetti
  • Try to break overloaded single charts into smaller parts (facets, small multiples) or highlight the relevant information

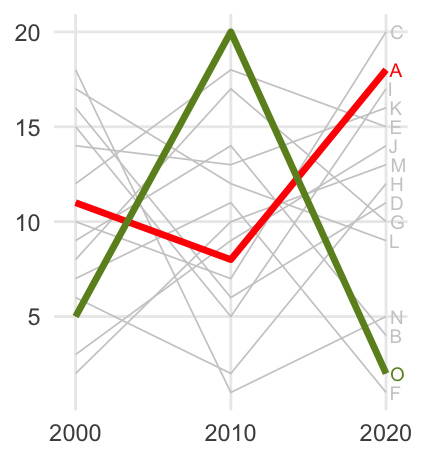

  • Start with gray: you are forced to be strategic in the use of color, labels, etc.

Best practice

Deceptive graphs

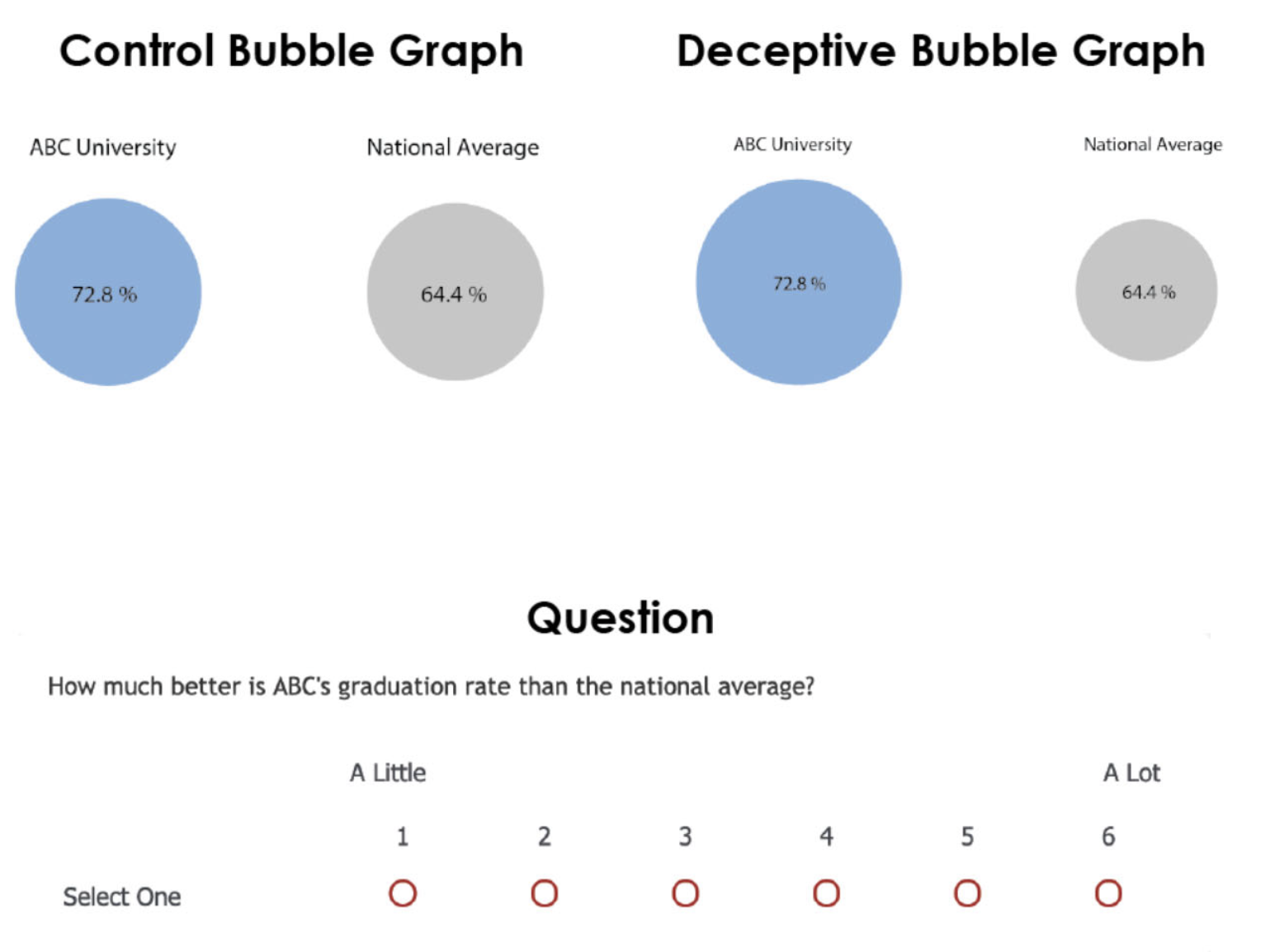

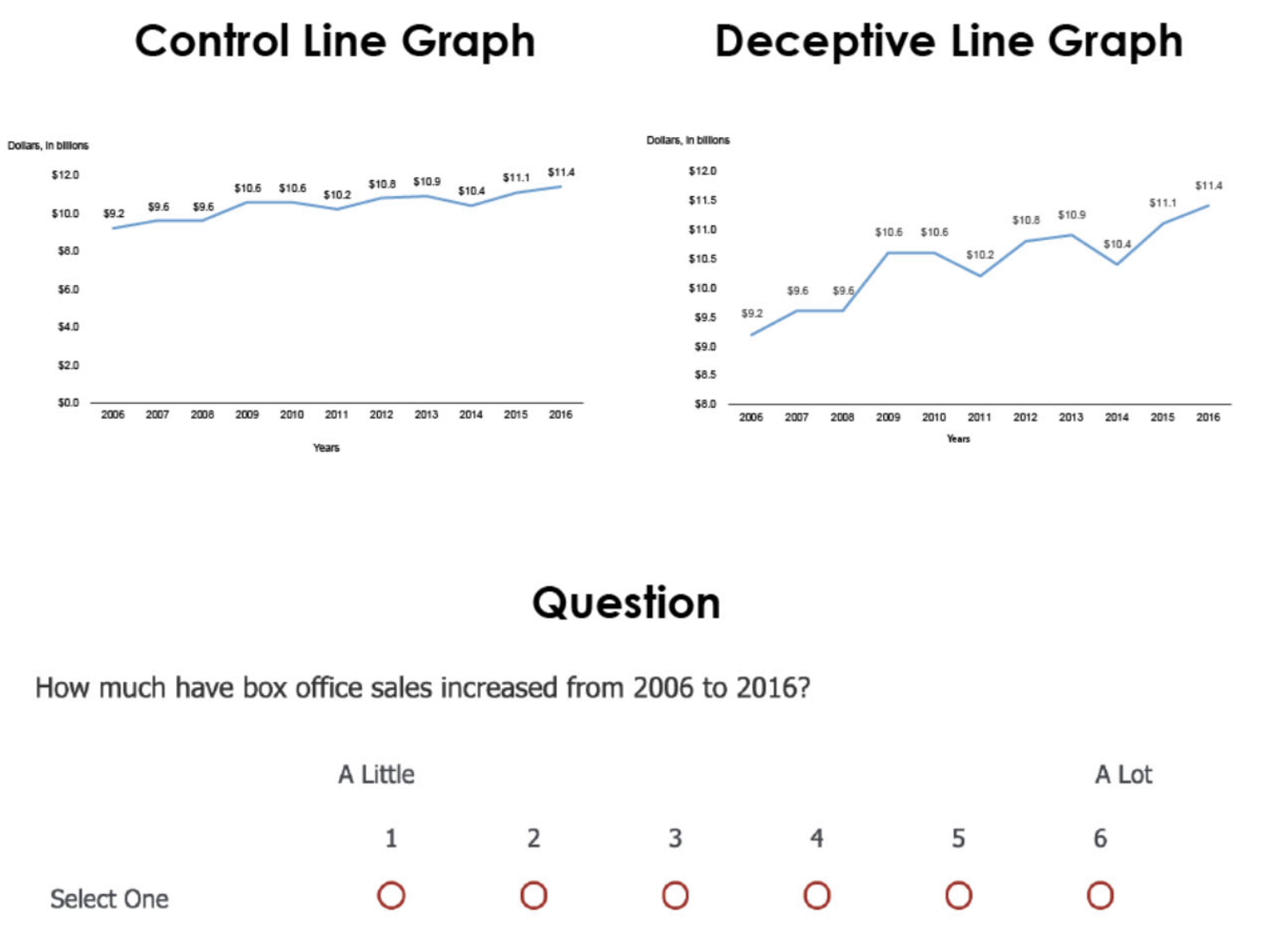

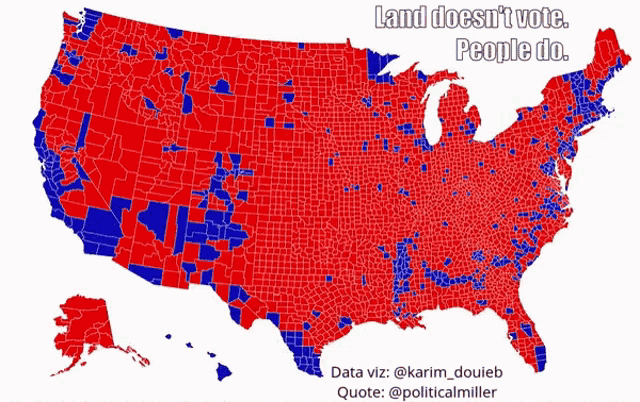

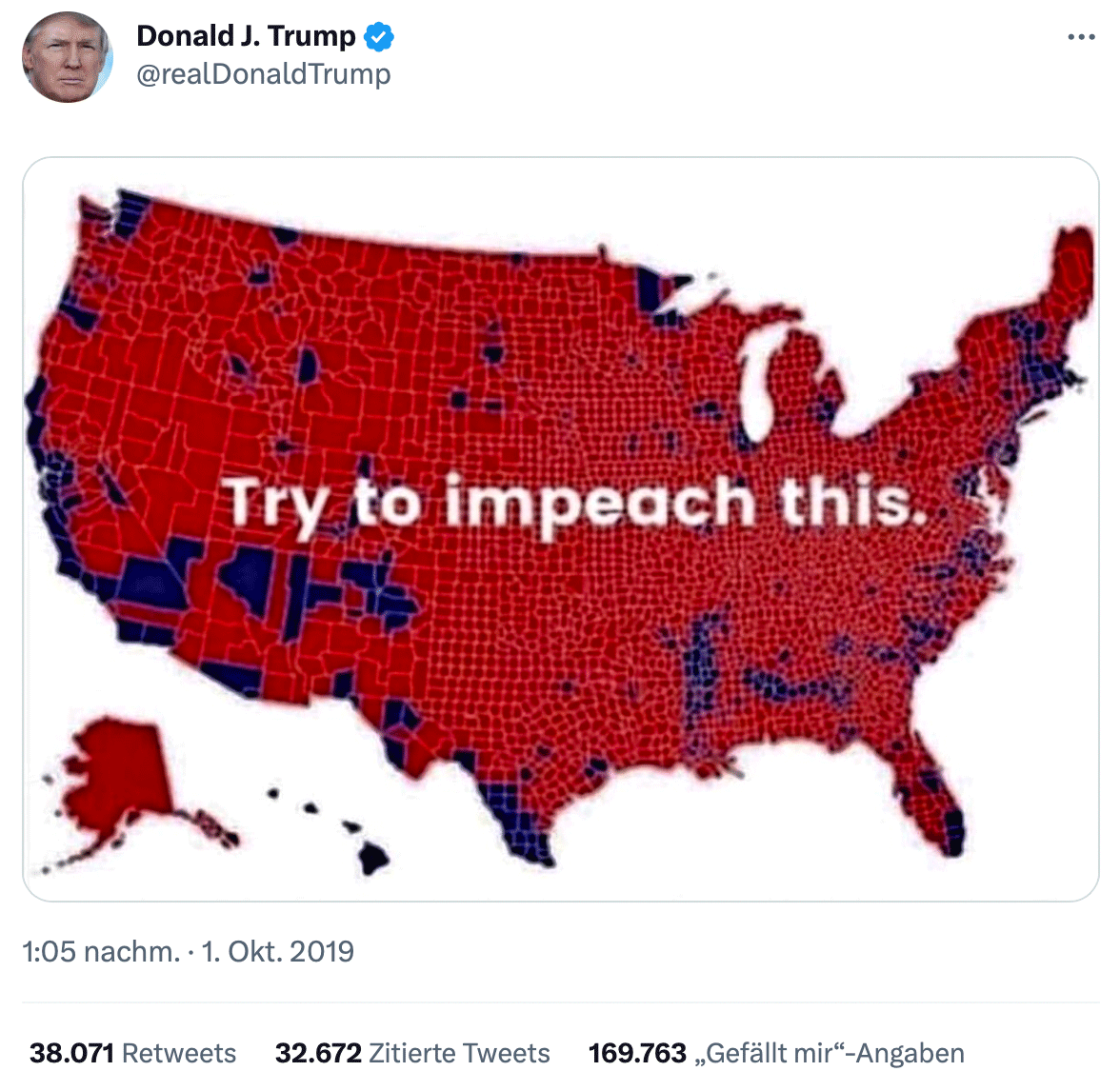

Deceptive graphs

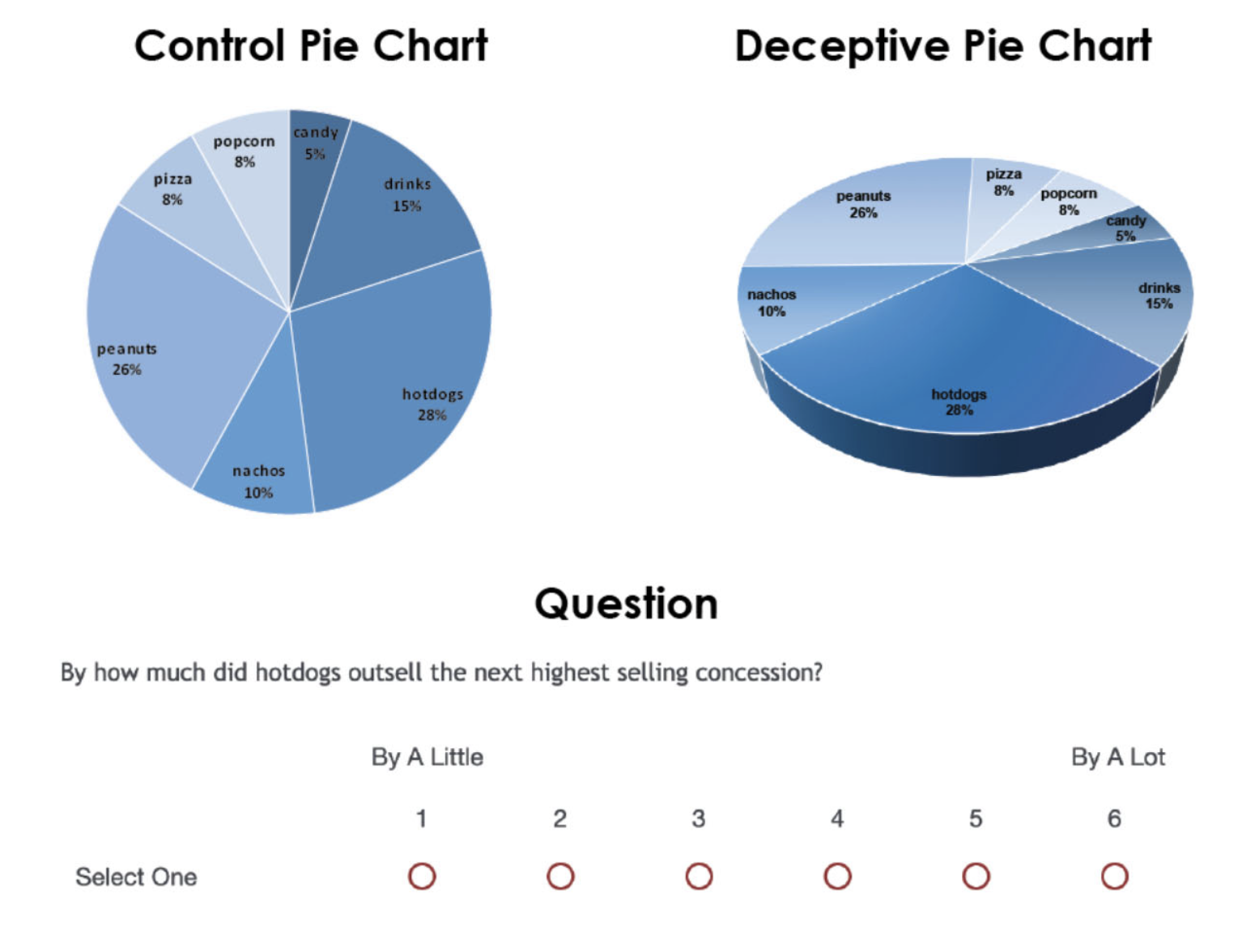

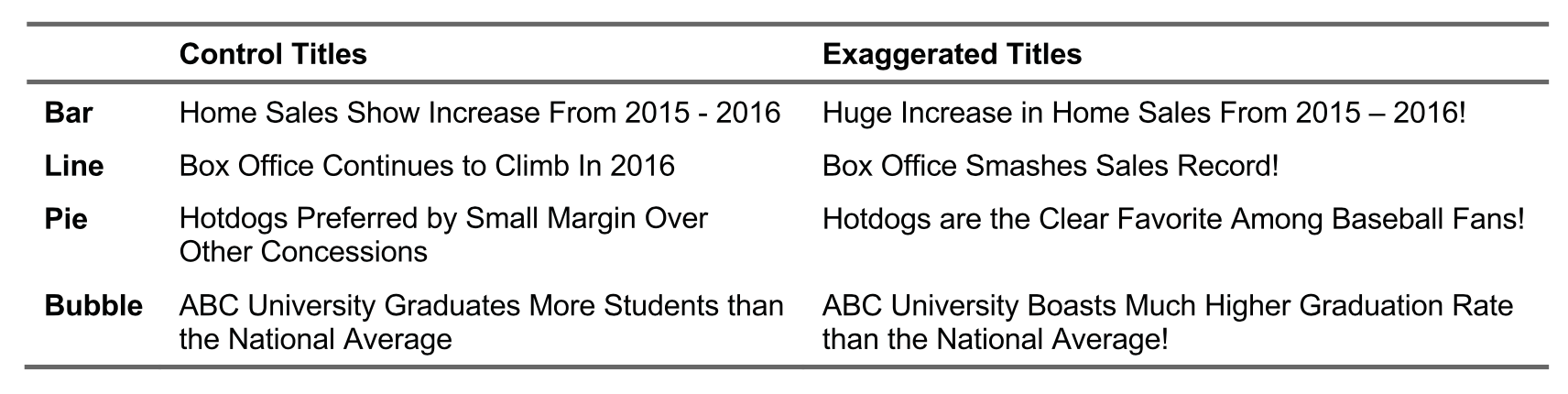

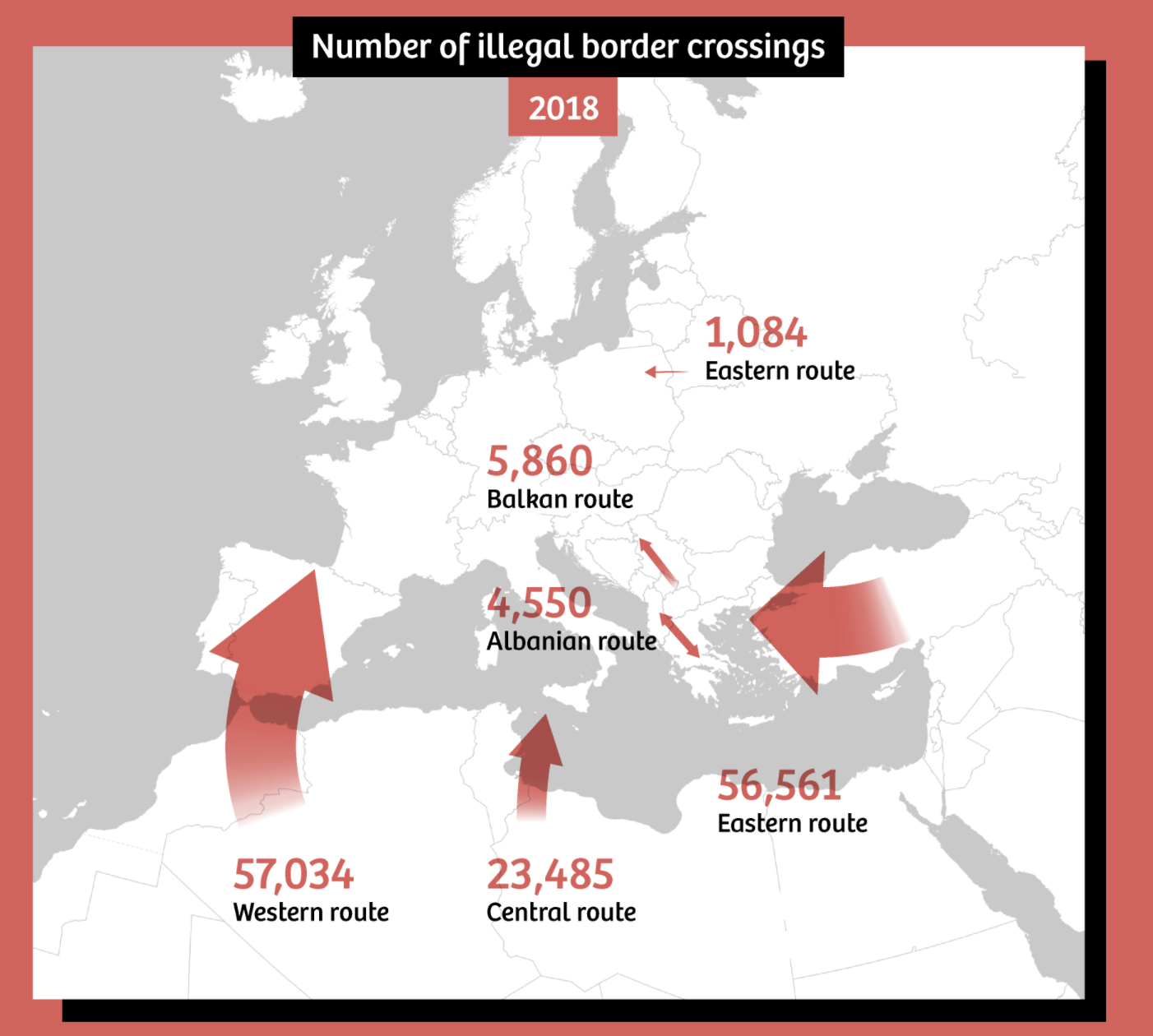

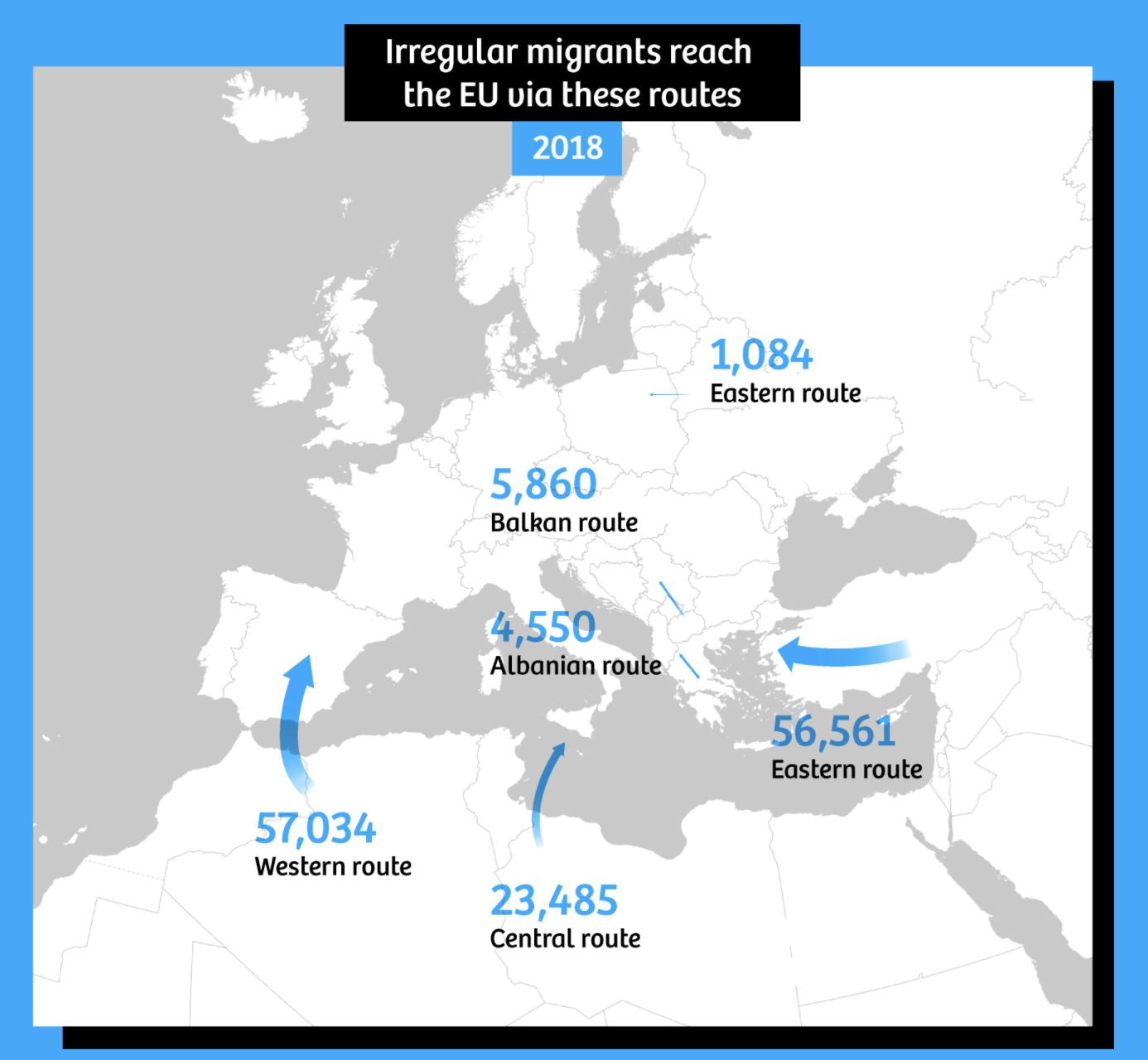

Misleading titles

Deceptive graphs meet their goal

The Gestalt Principles

What are the Gestalt Principles?

Gestalt Principles describe how humans group similar elements, recognize patterns and simplify complex images. “Gestalt” is German for “unified whole”.

The question is how humans typically gain meaningful perceptions from the chaotic stimuli around them. The idea is that the mind “informs” what the eye sees by perceiving a series of individual elements as a whole.

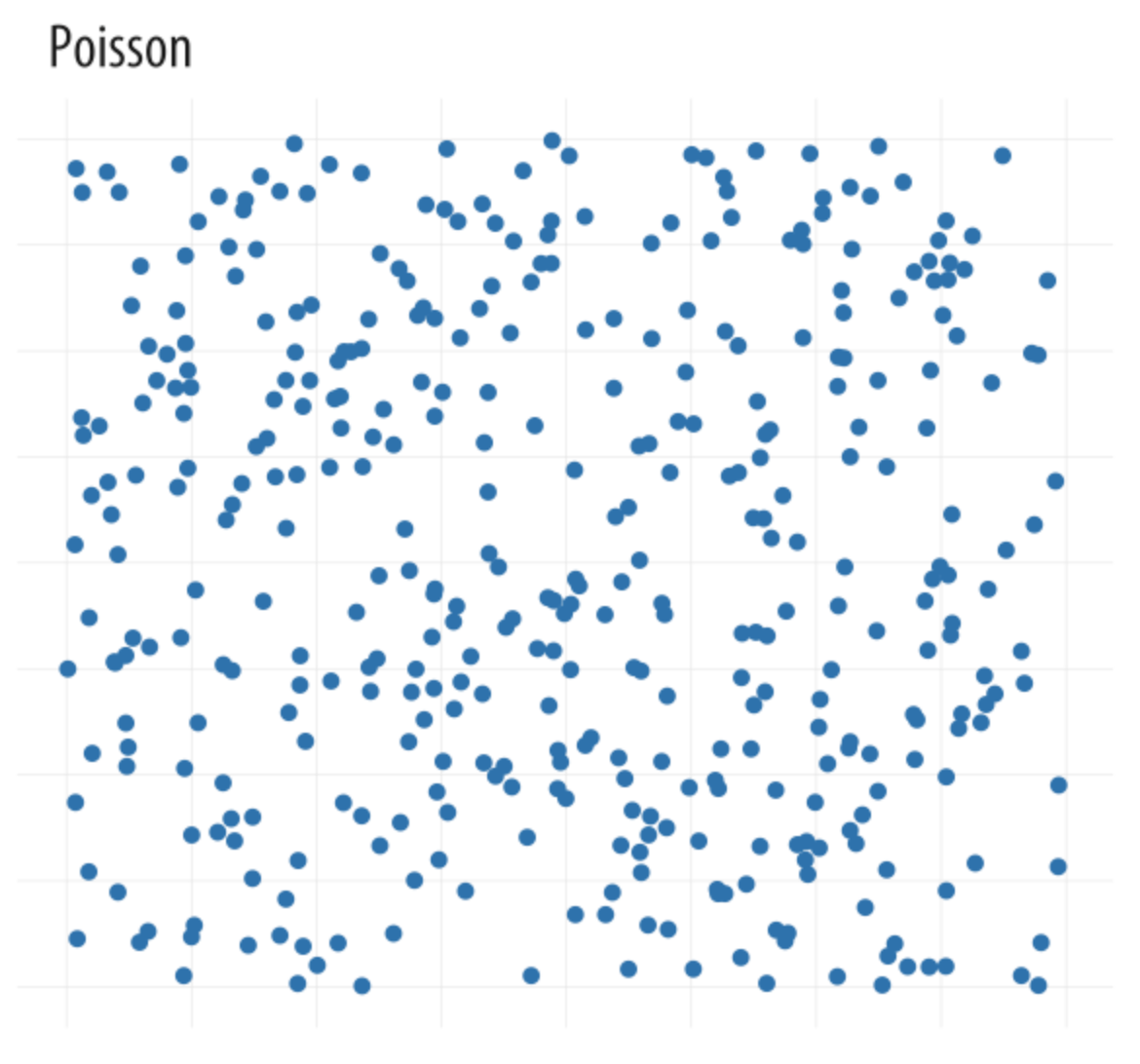

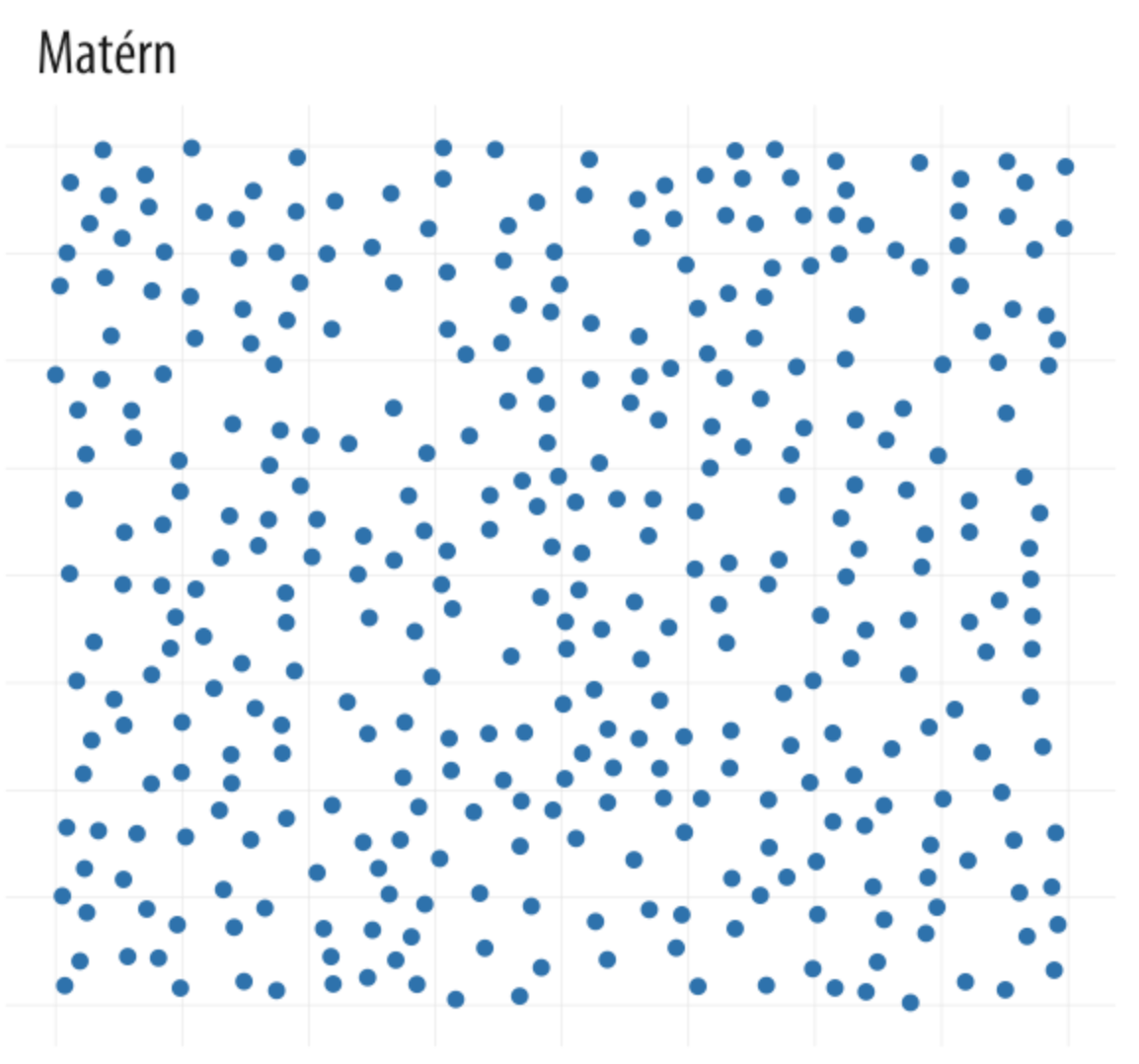

Which chart is random and which has structure in it?

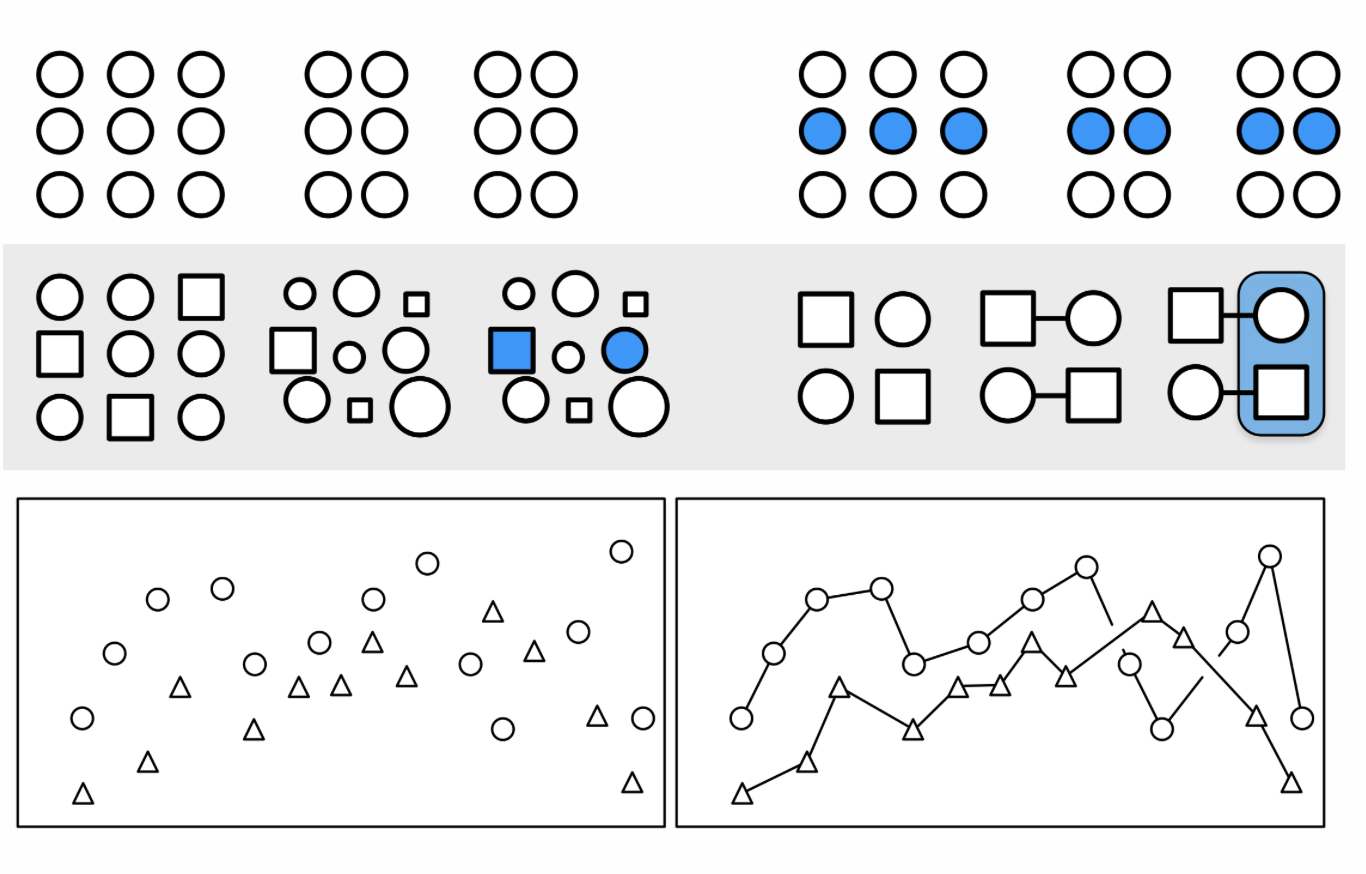

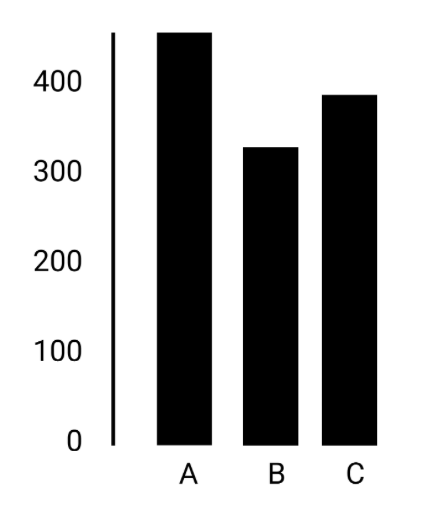

Gestalt rules

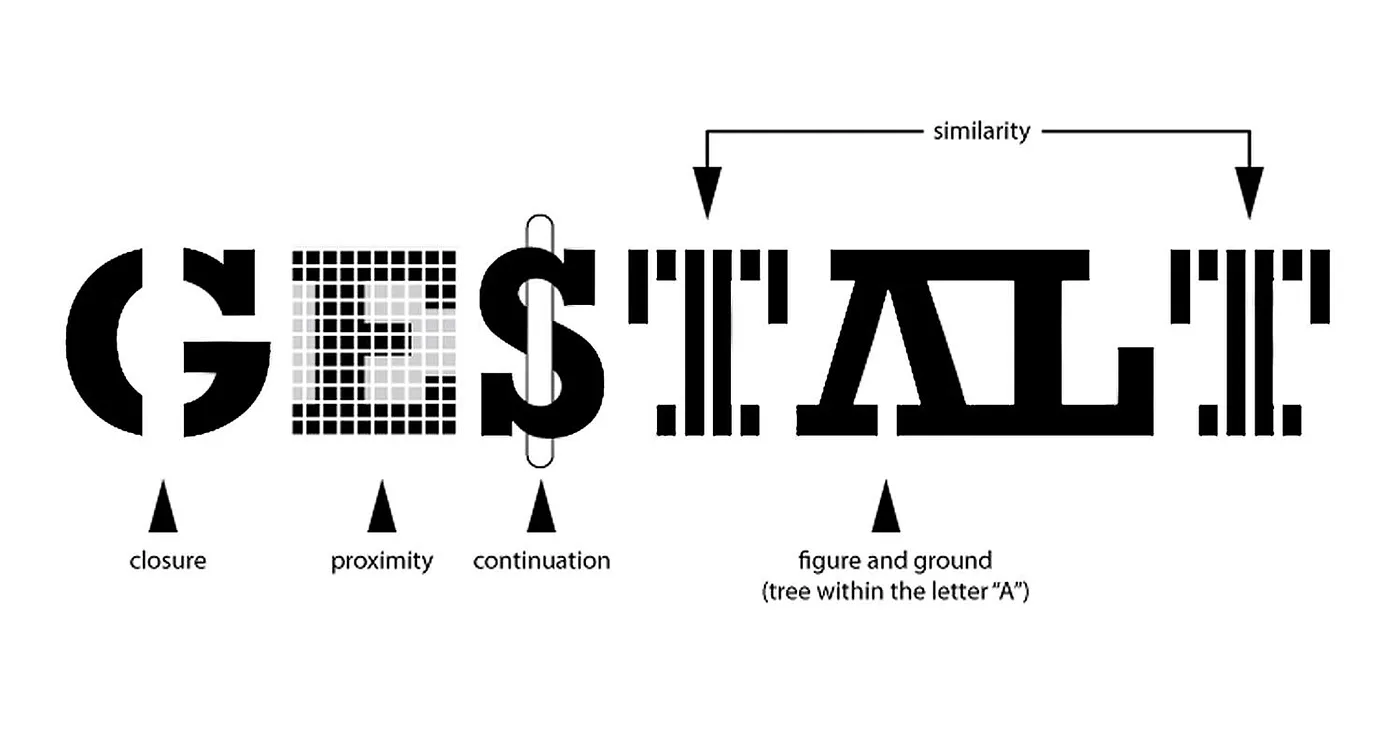

  • Proximity Things that are spatially near to one another seem to be related.
  • Similarity Things that look alike seem to be related.
  • Connection Things that are visually tied to one another seem to be related.
  • Continuity Partially hidden objects are completed into familiar shapes.
  • Closure Incomplete shapes are perceived as complete.
  • Figure and Ground Visual elements are taken to be either in the foreground or the background.
  • Common Fate Elements sharing a direction of movement are perceived as a unit.

Our brains look for structure

Let’s start with {ggplot}

The grammar of {ggplot}

Component Function Explanation
Data ggplot(data) The raw data that you want to visualise.
Aesthetics aes() Aesthetic mappings between variables and visual properties.
Geometries geom_*() The geometric shapes representing the data.
Statistics stat_*() The statistical transformations applied to the data.
Scales scale_*() Maps between the data and the aesthetic dimensions.
Coordinate System coord_*() Maps data into the plane of the data rectangle.
Facets facet_*() The arrangement of the data into a grid of plots.
Visual Themes theme() The overall visual defaults of a plot.

Geometries and aesthetic mapping

data |>
  ggplot(aes(x = year, y = value, color = category)) +
  geom_point(alpha = 0.5, shape = 21) +
  scale_color_manual(values = c("red", "blue", "yellow"))


Geometries Aesthetics Scales Dimensions
points positions (x, y) scale_x_*(), scale_y_*() position (continuous, discrete, reverse, log10, sqrt, date)
lines colors (color, fill) scale_color_*(),
scale_fill_*()		 colors (continuous, discrete, manual, gradient, gradient2, brewer)
polygons shapes (shape, linetype) scale_shape_*(), scale_linetype_*() shapes (continuous, discrete, manual, ordinal)
text size (size) scale_size_*(), scale_radius_*() sizes (continuous, discrete, manual, ordinal, area, date)
boxplot transparency (alpha) scale_alpha_*() transparency (continuous, discrete, manual, ordinal, date)
…many more! groupings (group)

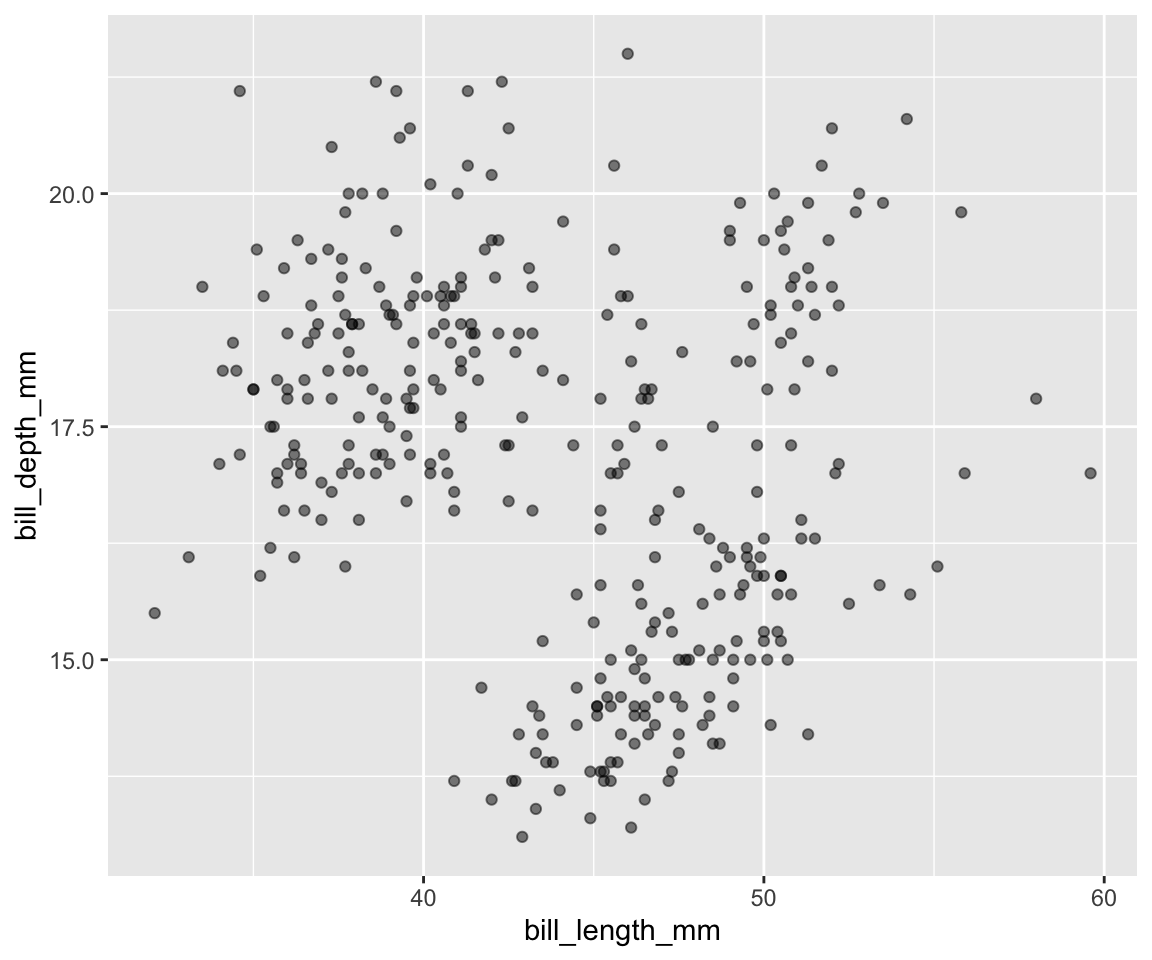

First steps

data |> ggplot(aes(x = bill_length_mm,
                  y = bill_depth_mm)) +
  geom_point(size = 1.5, alpha = 0.5)
Warning: Removed 2 rows containing missing values or values outside the scale range
(`geom_point()`).

Colors

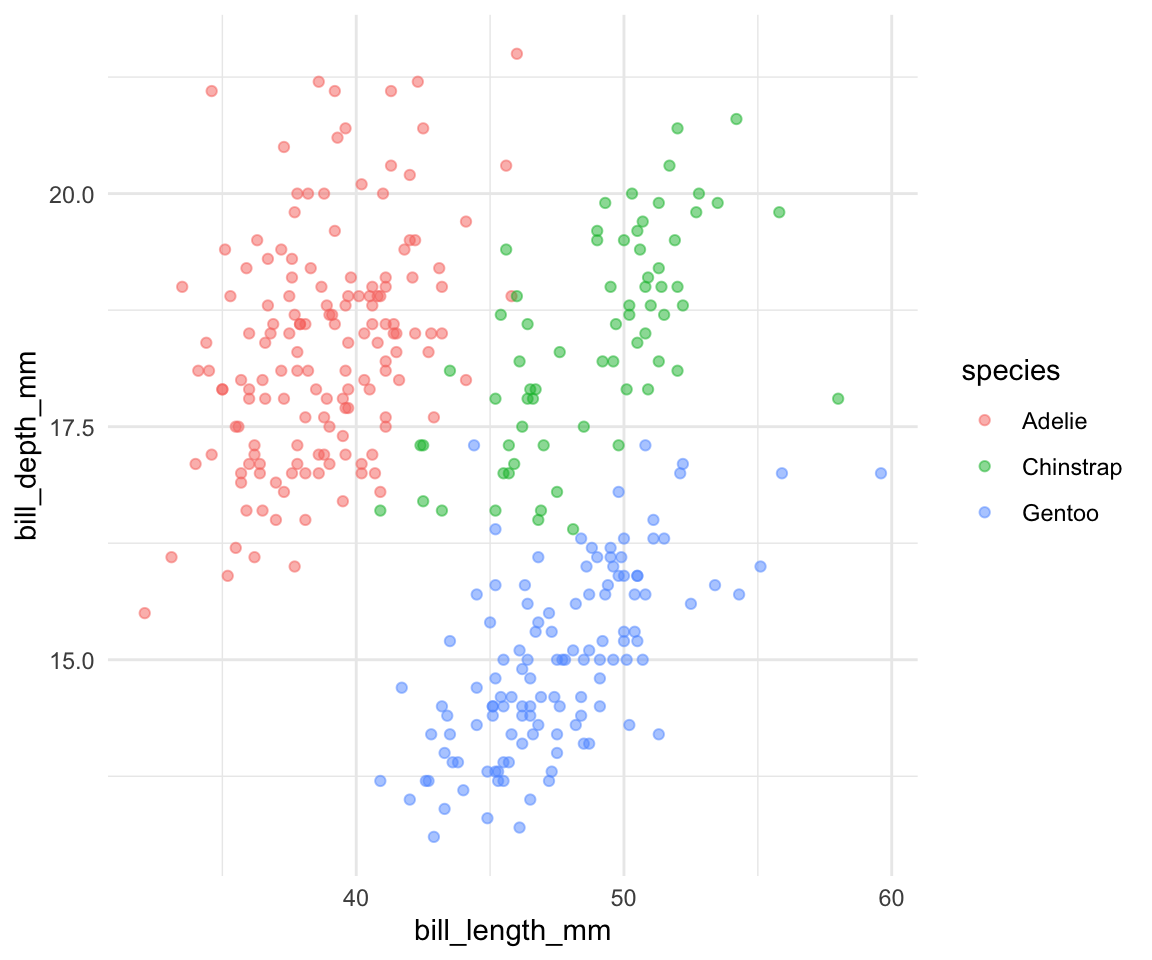

data |> ggplot(aes(x = bill_length_mm,
                  y = bill_depth_mm,
                  color = species)) +
  geom_point(size = 1.5, alpha = 0.5) +
  theme_minimal()
Warning: Removed 2 rows containing missing values or values outside the scale range
(`geom_point()`).

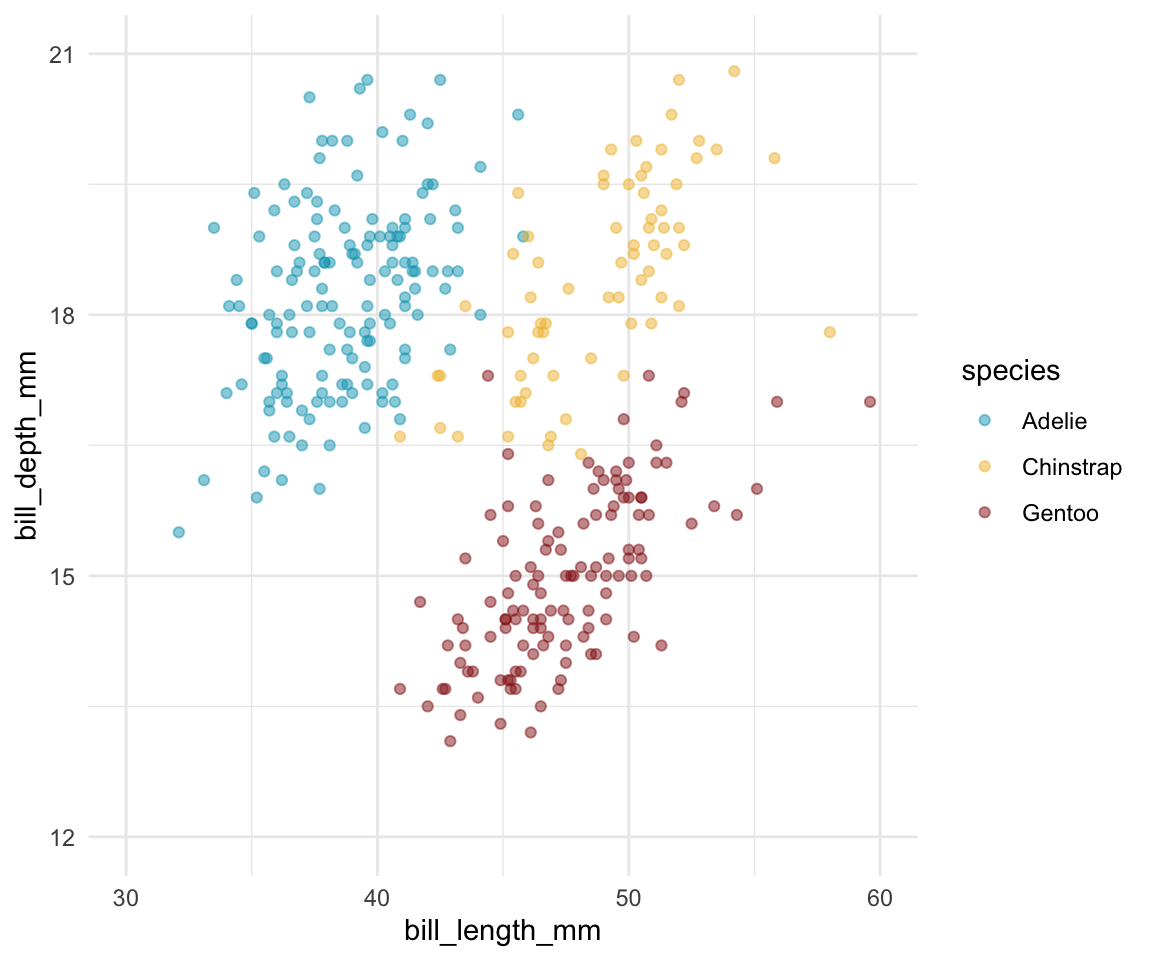

Scales

data |> ggplot(aes(x = bill_length_mm,
                  y = bill_depth_mm,
                  color = species)) +
  geom_point(size = 1.5, alpha = 0.5) +
  scale_color_manual(values = MetBrewer::met.brewer("Lakota")) +
  scale_x_continuous(limits = c(30,60), breaks = seq(30,60,10)) +
  scale_y_continuous(limits = c(12,21), breaks = seq(12,21,3)) +
  theme_minimal()
Warning: Removed 8 rows containing missing values or values outside the scale range
(`geom_point()`).

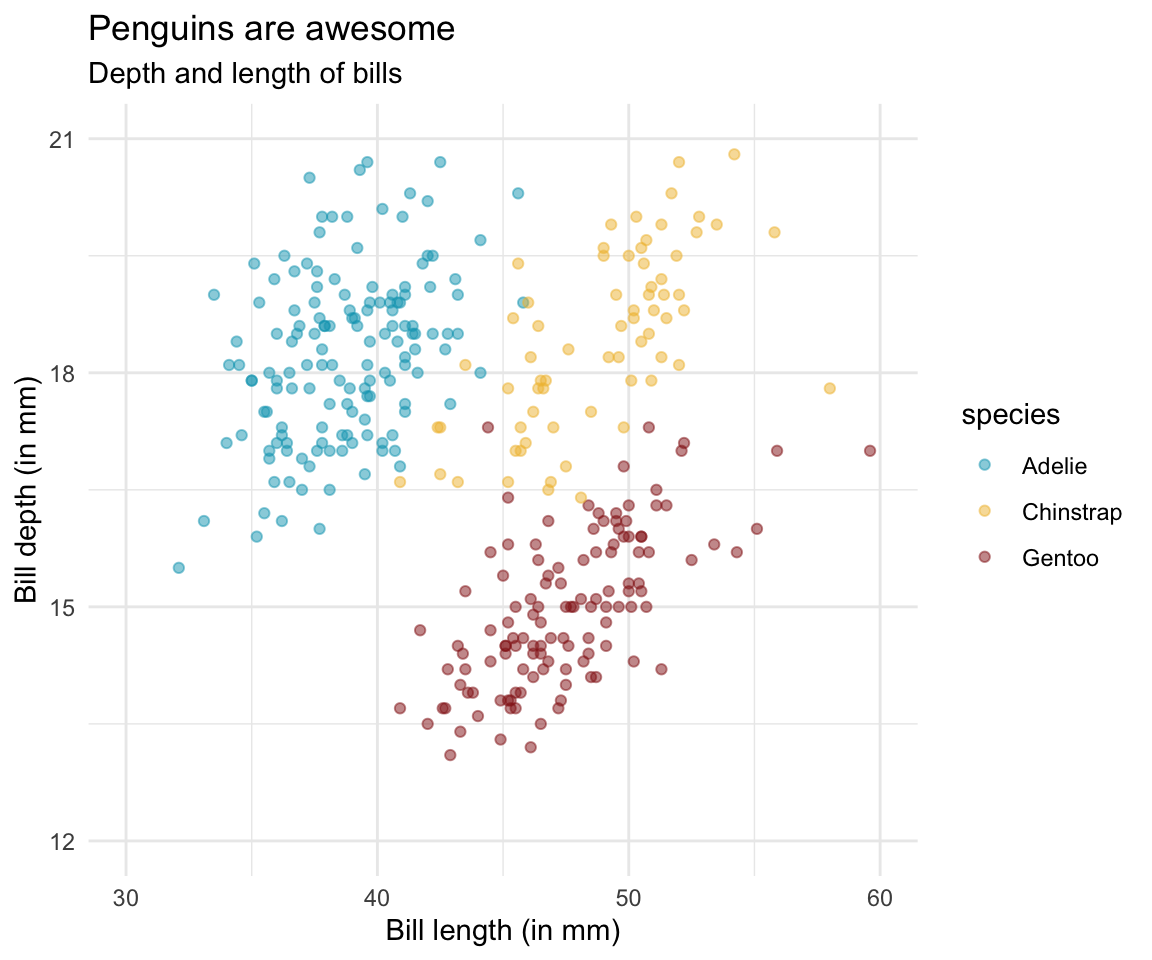

Labels

data |> ggplot(aes(x = bill_length_mm,
                  y = bill_depth_mm,
                  color = species)) +
  geom_point(size = 1.5, alpha = 0.5) +
  scale_color_manual(values = MetBrewer::met.brewer("Lakota")) +
  scale_x_continuous(limits = c(30,60), breaks = seq(30,60,10)) +
  scale_y_continuous(limits = c(12,21), breaks = seq(12,21,3)) +
  labs(x = "Bill length (in mm)", y = "Bill depth (in mm)",
      title = "Penguins are awesome",
      subtitle = "Depth and length of bills") +
  theme_minimal()
Warning: Removed 8 rows containing missing values or values outside the scale range
(`geom_point()`).

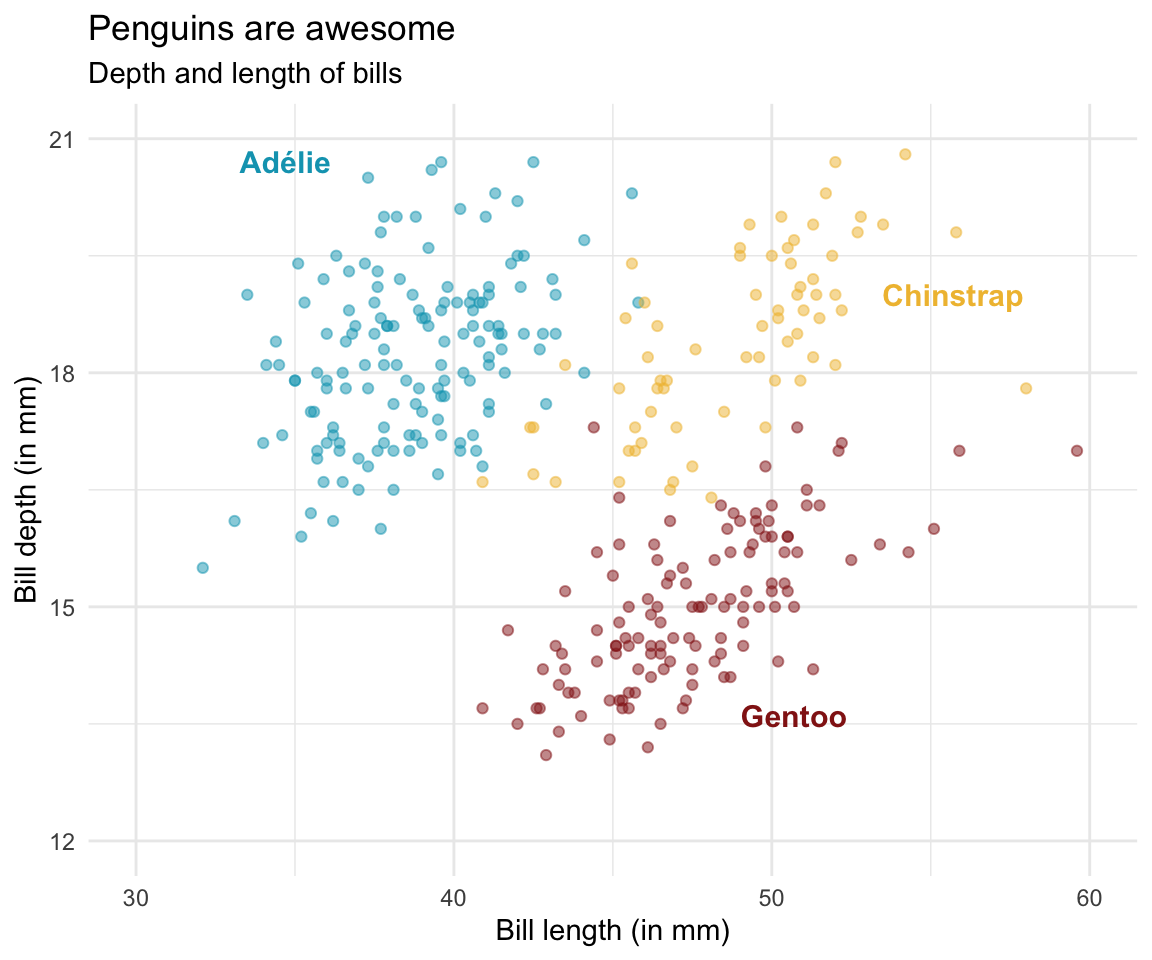

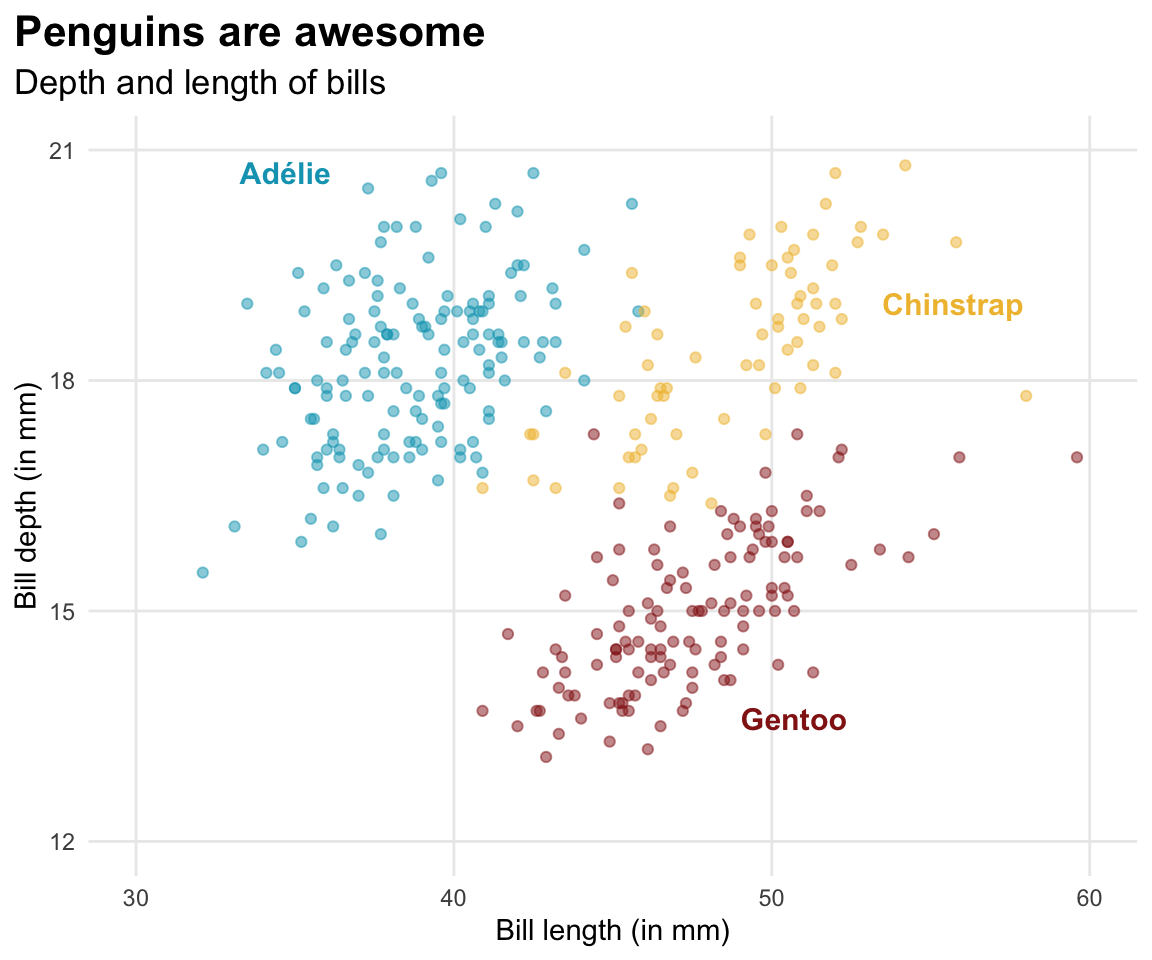

Annotation rather than legend

data |> ggplot(aes(x = bill_length_mm,
                  y = bill_depth_mm,
                  color = species)) +
  geom_point(size = 1.5, alpha = 0.5) +
  scale_color_manual(values = MetBrewer::met.brewer("Lakota")) +
  scale_x_continuous(limits = c(30,60), breaks = seq(30,60,10)) +
  scale_y_continuous(limits = c(12,21), breaks = seq(12,21,3)) +
  annotate("text", x = c(34.7, 55.7, 50.7), y = c(20.7, 19, 13.6),
  color = MetBrewer::met.brewer("Lakota")[1:3],
  label = c("Adélie","Chinstrap","Gentoo"), fontface = "bold", size = 4) +
  labs(x = "Bill length (in mm)", y = "Bill depth (in mm)",
      title = "Penguins are awesome",
      subtitle = "Depth and length of bills") +
  theme_minimal() +
  theme(legend.position = "none")
Warning: Removed 8 rows containing missing values or values outside the scale range
(`geom_point()`).

Themes

data |> ggplot(aes(x = bill_length_mm,
                  y = bill_depth_mm,
                  color = species)) +
  geom_point(size = 1.5, alpha = 0.5) +
  scale_color_manual(values = MetBrewer::met.brewer("Lakota")) +
  scale_x_continuous(limits = c(30,60), breaks = seq(30,60,10)) +
  scale_y_continuous(limits = c(12,21), breaks = seq(12,21,3)) +
  annotate("text", x = c(34.7, 55.7, 50.7), y = c(20.7, 19, 13.6),
  color = MetBrewer::met.brewer("Lakota")[1:3],
  label = c("Adélie","Chinstrap","Gentoo"), fontface = "bold", size = 4) +
  labs(x = "Bill length (in mm)", y = "Bill depth (in mm)",
      title = "Penguins are awesome",
      subtitle = "Depth and length of bills") +
  theme_minimal() +
  theme(legend.position = "none",
  plot.title.position = "plot",
  plot.title = element_text(size = 16, face="bold"),
  plot.subtitle = element_text(size = 13),
  panel.grid.minor = element_blank())
Warning: Removed 8 rows containing missing values or values outside the scale range
(`geom_point()`).

Calculate median and standard deviation

data_summary <- data |>
  group_by(species) |>
  summarise(across(c(bill_length_mm, bill_depth_mm),
  list(median = ~median(., na.rm = TRUE),
       sd = ~sd(., na.rm = TRUE))))

data_summary
# A tibble: 3 × 5
  species   bill_length_mm_median bill_length_mm_sd bill_depth_mm_median
  <fct>                     <dbl>             <dbl>                <dbl>
1 Adelie                     38.8              2.66                 18.4
2 Chinstrap                  49.6              3.34                 18.4
3 Gentoo                     47.3              3.08                 15
# ℹ 1 more variable: bill_depth_mm_sd <dbl>

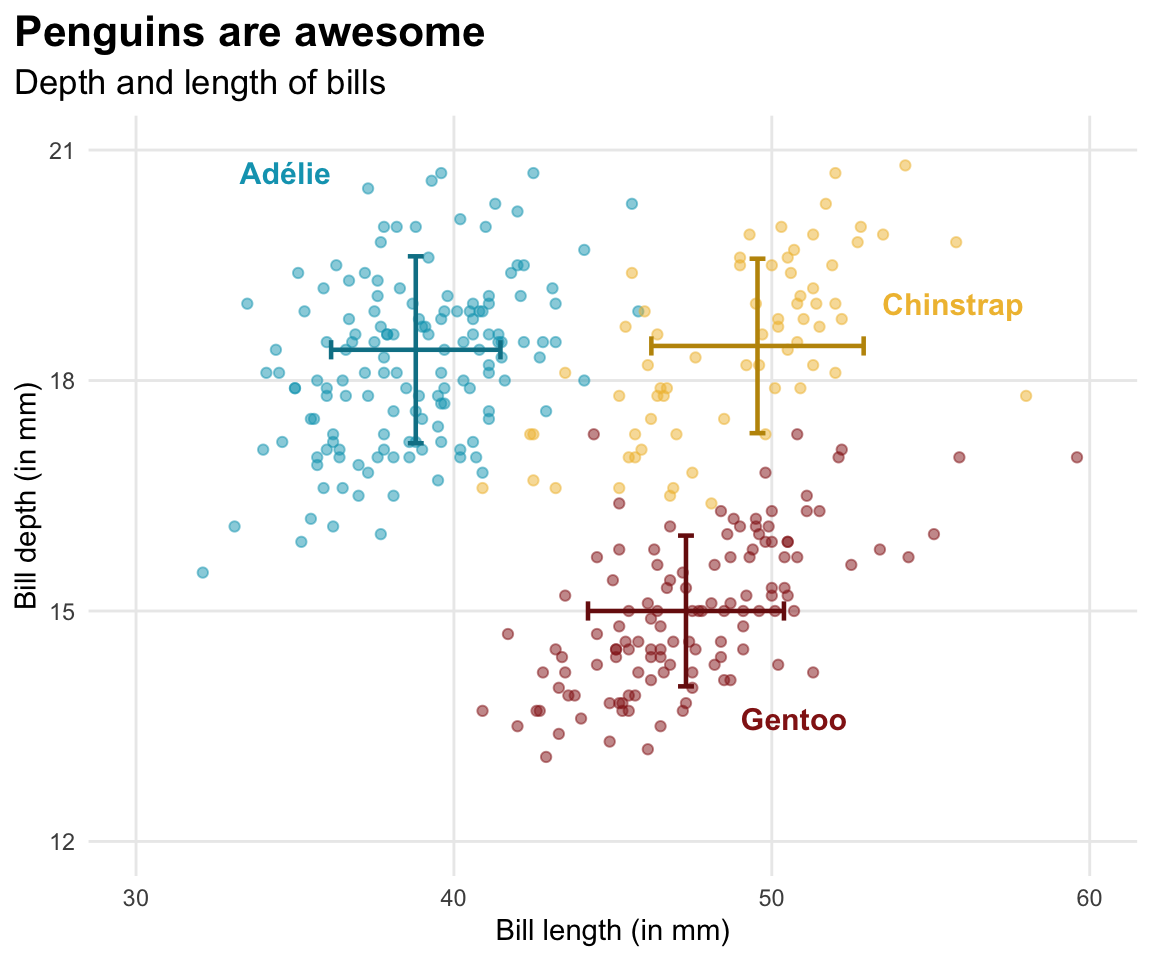

Median

data |> ggplot(aes(x = bill_length_mm,
                  y = bill_depth_mm,
                  color = species)) +
  geom_point(size = 1.5, alpha = 0.5) +
  geom_errorbar(
    data = data_summary,
    aes(x = bill_length_mm_median,
      ymin = bill_depth_mm_median - bill_depth_mm_sd,
      ymax = bill_depth_mm_median + bill_depth_mm_sd,
      color = species,
      color = after_scale(colorspace::darken(color, .2, space = "combined"))),
      inherit.aes = FALSE, width = .5, size = .8) +
  geom_errorbar(
    data = data_summary,
    aes(y = bill_depth_mm_median,
      xmin = bill_length_mm_median - bill_length_mm_sd,
      xmax = bill_length_mm_median + bill_length_mm_sd,
      color = species,
      color = after_scale(colorspace::darken(color, .2, space = "combined"))),
      inherit.aes = FALSE, width = .25, size = .8) +
  scale_color_manual(values = MetBrewer::met.brewer("Lakota")) +
  scale_x_continuous(limits = c(30,60), breaks = seq(30,60,10)) +
  scale_y_continuous(limits = c(12,21), breaks = seq(12,21,3)) +
  annotate("text", x = c(34.7, 55.7, 50.7), y = c(20.7, 19, 13.6), color = MetBrewer::met.brewer("Lakota")[1:3], label = c("Adélie","Chinstrap","Gentoo"), fontface = "bold", size = 4) +
  labs(x = "Bill length (in mm)", y = "Bill depth (in mm)",
      title = "Penguins are awesome",
      subtitle = "Depth and length of bills") +
  theme_minimal() +
  theme(legend.position = "none",
  plot.title.position = "plot",
  plot.title = element_text(size = 16, face="bold"),
  plot.subtitle = element_text(size = 13),
  panel.grid.minor = element_blank())
Warning: Duplicated aesthetics after name standardisation: colour
Duplicated aesthetics after name standardisation: colour
Warning: Removed 8 rows containing missing values or values outside the scale range
(`geom_point()`).

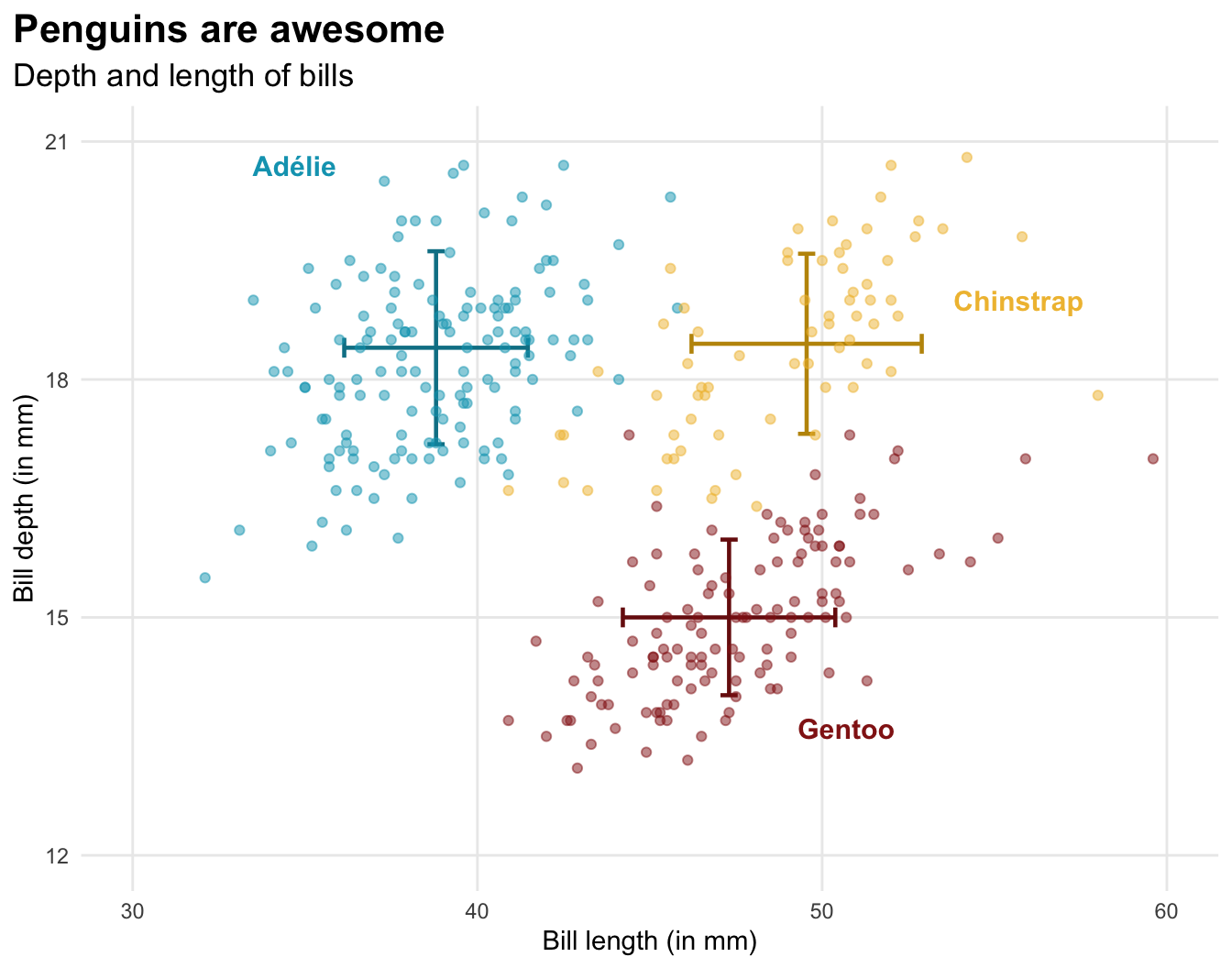

Final plot

Warning: Duplicated aesthetics after name standardisation: colour
Duplicated aesthetics after name standardisation: colour
Warning: Removed 8 rows containing missing values or values outside the scale range
(`geom_point()`).
