Economic Policy Visualization

Data

Dr. Matthias Schnetzer

October 14, 2024

The era of evidence in economics

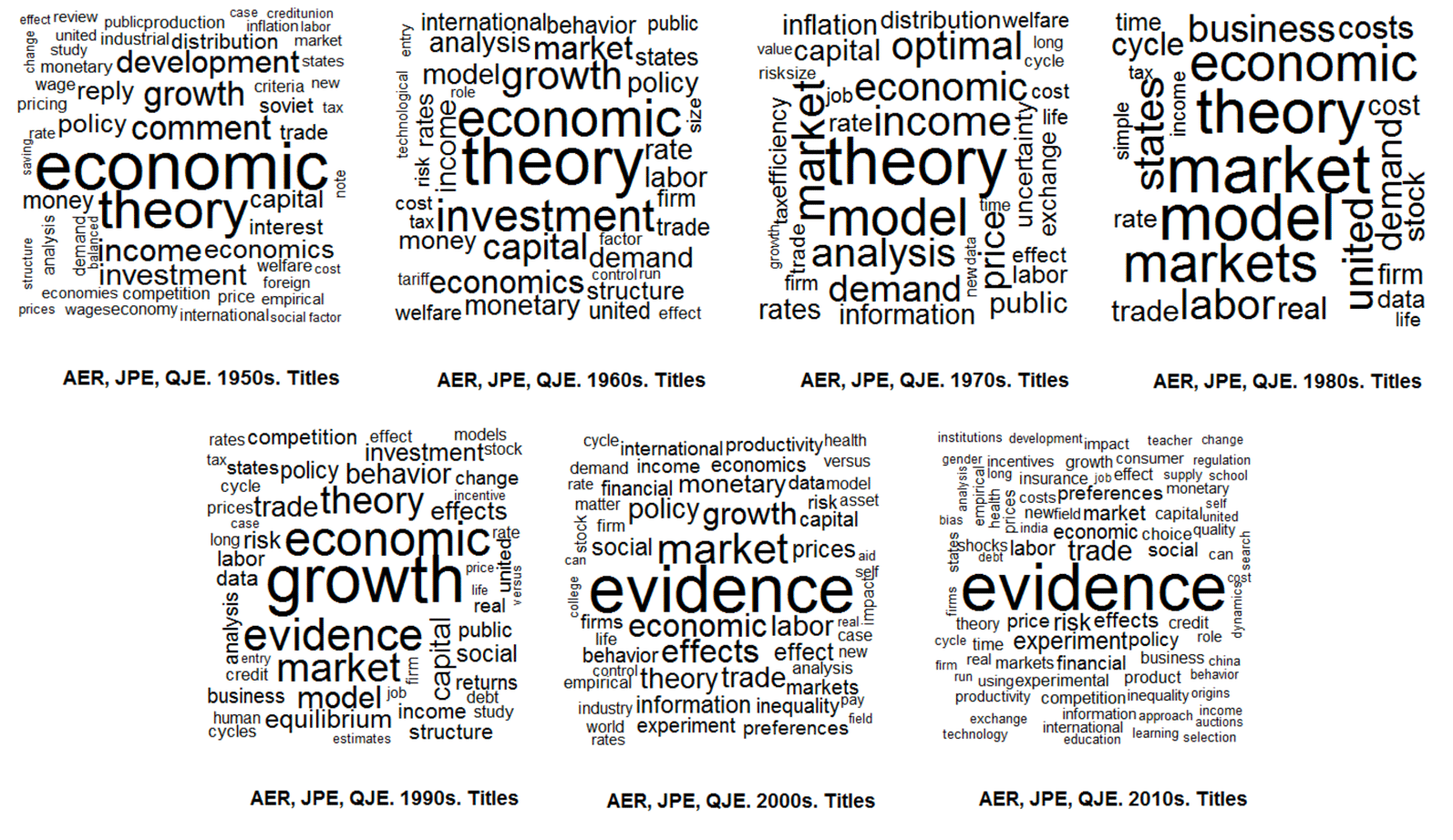

The figure shows the evolution of economics literature by text mining the 500 most-cited titles in top journals by decade. There is a shift from advancing theory towards empirical evidence.

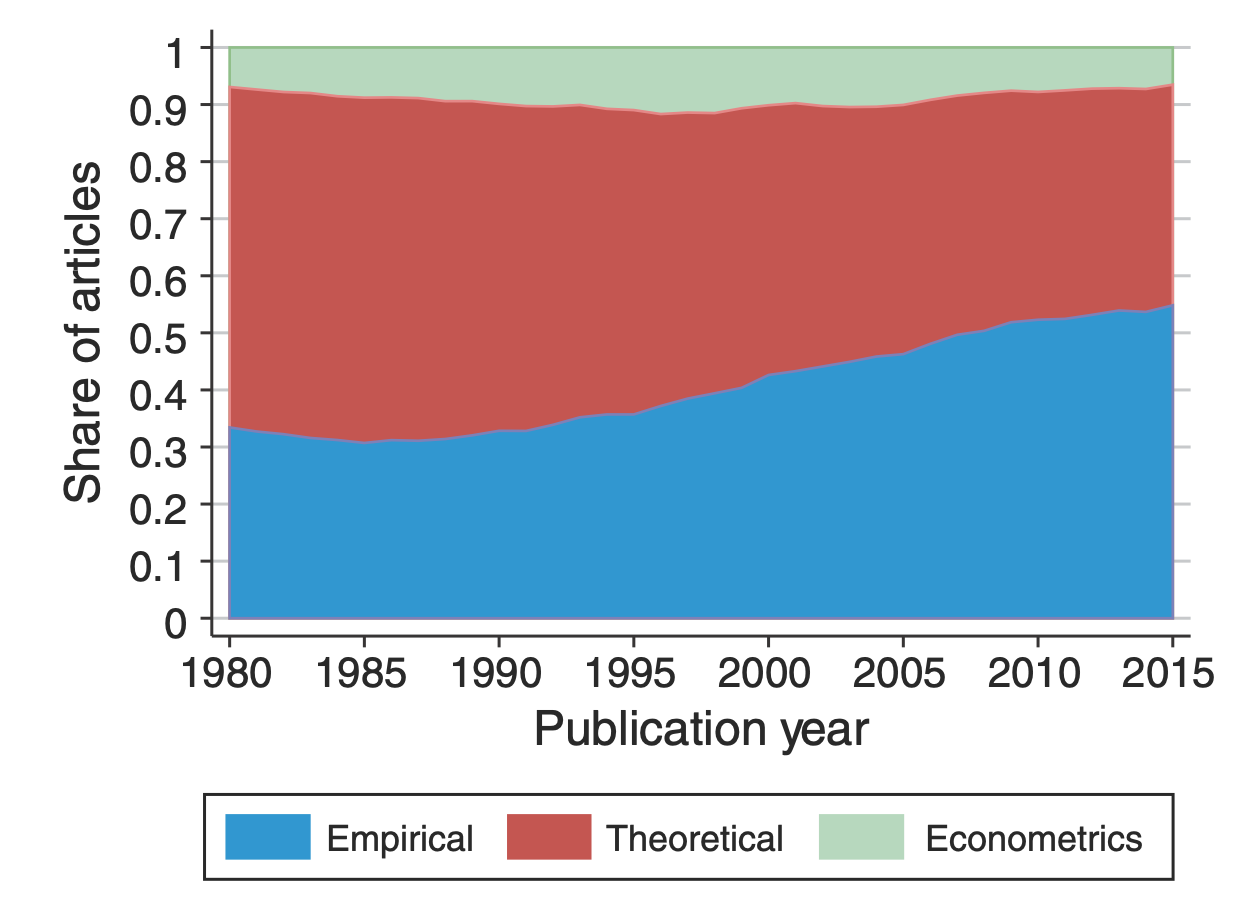

The rise of empirical articles

Evidence-based economic policy

  • Data collection: Collection of relevant and high-quality data (administrative data, surveys, interviews, observations, etc.). Researchers should be aware of the qualities but also of the flaws of the data.
  • Data analysis: The design and type of analysis depends on the question being asked and resources available. The methods range from qualitative to quantitative analysis. The choice of application might unwittingly involve normative reflections by the researcher.
  • Policy suggestions: A major goal of empirical economics is to serve and improve policy making. The findings should, however, be carefully interpreted with regard to the limitations of empirical analyis. Economic policy, even if it’s evidence-based, is affected by norms, beliefs, etc.

Mind the (data) gap!

The limits of data

  • Data is never a perfect reflection of the world!
  • It’s only a subset: not crime but reported crime
  • Information is collected by humans and processed by machines: imprecisions and errors are inevitable!
  • Be aware of potential (cognitive and statistical) biases!

Invisible women

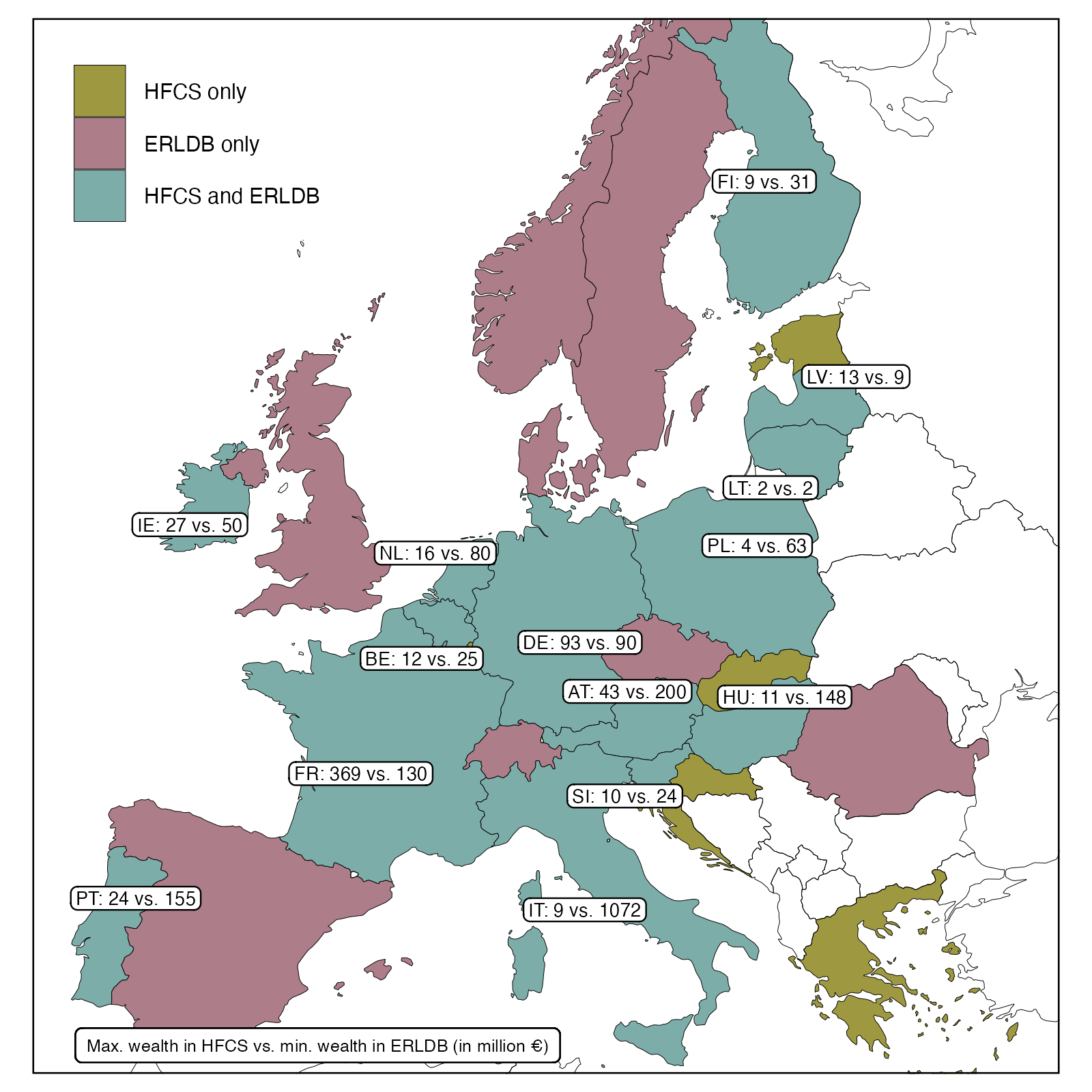

Invisible rich

Discuss with your neighbour

What other potential flaws and challenges of data collection come to your mind?

How could these flaws be tackled by the researcher?

Disparities in data acquisition and definitions

Administrative and survey data

Administrative Data Survey Data
Purpose Collected also for non-statistical purposes (e.g., taxation, regulation). Collected specifically for statistical analysis.
Coverage Can cover large populations (e.g., entire tax base or workforce). Often based on samples, though some are nationally representative.
Frequency Often collected regularly (e.g., monthly, annually). Can be periodic (quarterly, annually, sometimes even every few years).
Accuracy High for administrative processes (e.g., tax filing) but may not capture informal sectors (many estimations!). High precision for sample groups but subject to sampling error and response bias.
Timeliness May have delays in processing or availability for statistical use. Data collection timelines can be long, but surveys are often designed for quick use.
Cost Generally lower cost, since the data is already being collected. Higher cost, as it requires specific planning, data collection, and processing.
Adaptability Limited flexibility; cannot be easily tailored for specific statistical needs. Can be customized to gather specific data, but requires careful design and execution.

Survey modes

  • Survey modes: Computer-assisted personal interviews (CAPI), telephone interviews (CATI), web interviews (CAWI)
  • Mixed-mode survey: Improve coverage (several modes to contact hard-to-reach respondents) and reduce non-response (respondents may choose preferential mode)
  • Caveats: Selection effects, i.e. different types of respondents choose different modes, and measurement effects, i.e. respondents give different answers in different modes (Vannieuwenhuyze et al., 2010)

The survey mode might be important for critical questions, for instance, party preferences. Aichholzer (2018) finds that survey responses of voting for far right FPÖ is higher in CAWI among other things due to lower effects of social desirability.

Income according to Canberra Group

ID Concept Aggregate
1 Income from employment 1a + 1b
  1a Employee income
  1b Income from self-employment
2 Property income
3 Income from household production
4 Current transfers received
5 Income from production 1 + 3
6 Primary income 1 + 2 + 3
7 Current transfers paid (taxes, fees, etc.)
8 Disposable income 6 + 4 - 7

Income according to the National Accounts

ID Concept
D.1 Compensation of employees
  D.11 Wages and salaries
  D.12 Employers social contributions
B.2G Operating surplus, gross
B.3G Mixed income, gross
D.4 Property income
  D.41 Interest
  D.42 Distributed income of corporations
  D.43 Reinvested earnings on foreign direct investment
  D.44 Investment income disbursements (e.g. insurances)
  D.45 Rent

Income according to the Austrian tax law

ID Concept Description
1 Income from agriculture and forestry Farmers, forest managers
2 Income from self-employment E.g. Freelancers, Architects, Lawyer, Doctors, Consultants, CEO if she holds > 25%
3 Business income All other self-employed activities
4 Employee income Employees, retirees
5 Renting and lease of land Particularly renting of real estate properties
6 Property income Savings accounts, dividends (final taxation with capital income tax)
7 Other income Income from speculation, income from selling private property, etc.

Income data sources in Austria

Income Type Long-term aggregate Long-term distribution Short-term distribution
Employee income WTD SSD WTD SSD WTD SSD SES EU-SILC HFCS
Self-employed ITD (IWITD) ITD (IWITD) ITD (IWITD) EU-SILC HFCS
Property income CGT (ITD) EU-SILC HFCS
Transfers Various admin. sources EU-SILC HFCS
Disposable household income SNA HBS EU-SILC HFCS

Administrative and survey data sources: Wage tax data (WTD), Income tax data (ITD), Integrated wage and income tax data (IWITD), Social security data (SSD), Capital gains tax data (CGT), System of National Accounts (SNA), European Survey of Income and Living Conditions (EU-SILC), Household Finance and Consumption Survey (HFCS), Household Budgetary Survey (HBS), Structure of Earnings Survey (SES)

Be aware of differences between data sources!

Income data in EU-SILC

Individual level:

  • employee cash or near cash income
  • cash benefits or losses from self-employment
  • pension from individual private plans
  • unemployment benefits
  • old-age benefits
  • survivor benefits
  • sickness benefits
  • disability benefits
  • education-related allowances

Household level:

  • income from rental of a property or land
  • family/children related allowances
  • social exclusion not elsewhere classified
  • housing allowances
  • regular inter-household cash transfers received
  • alimonies received
  • interest, dividends, profit from capital investments in incorporated business
  • income received by people aged under 16

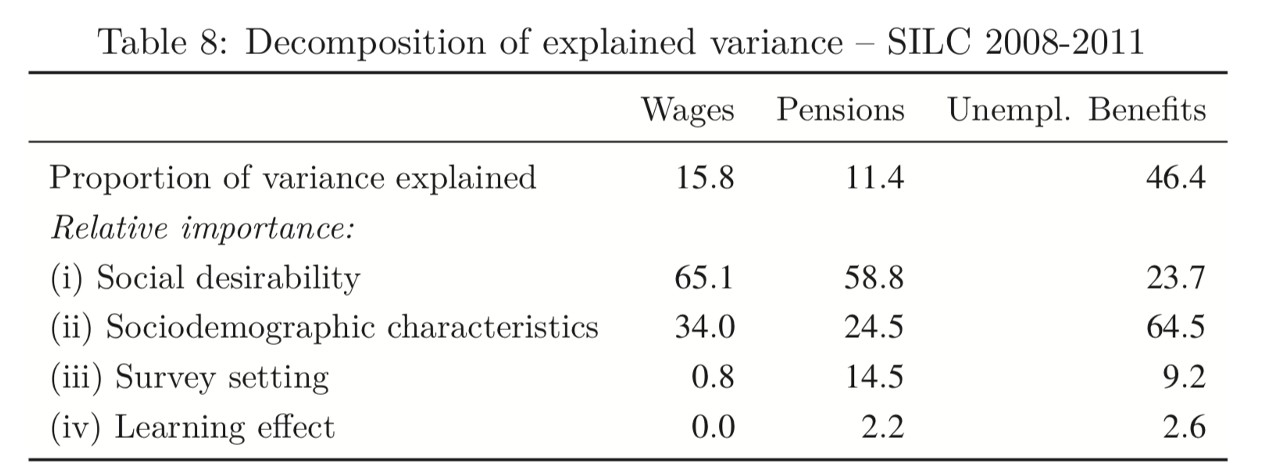

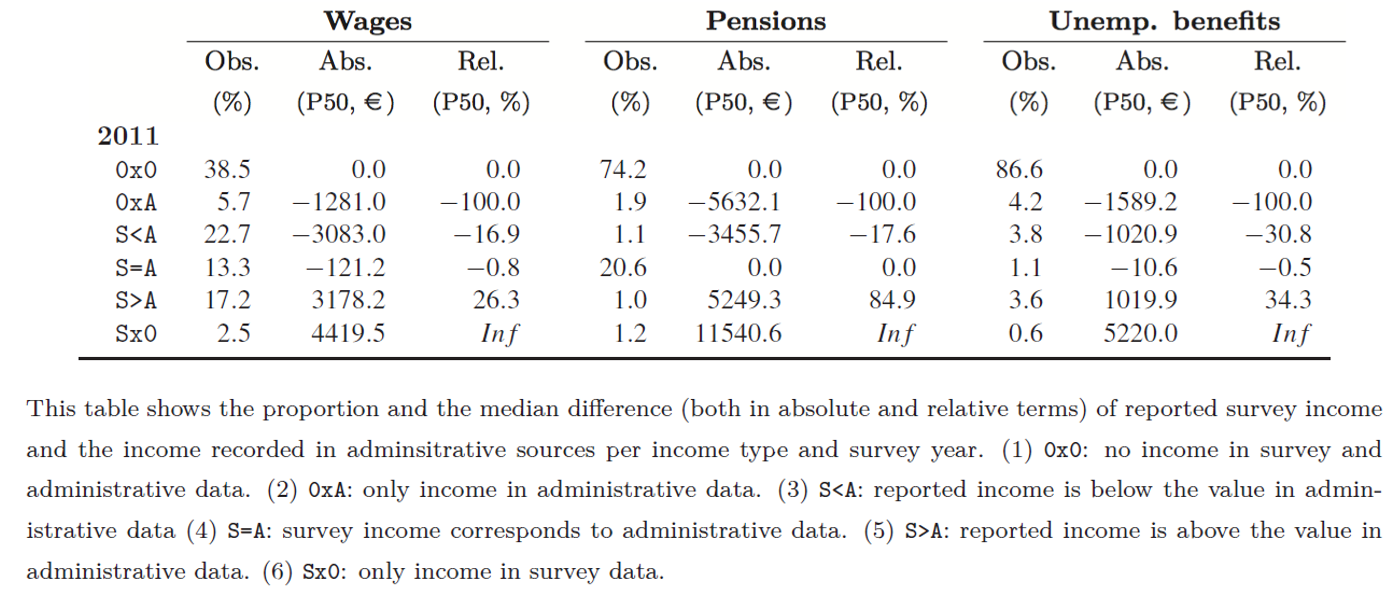

Administrative versus survey data

Impact on response behavior:

  • Social desirability
  • Sociodemographic characteristics
  • Survey design
  • Learning effect

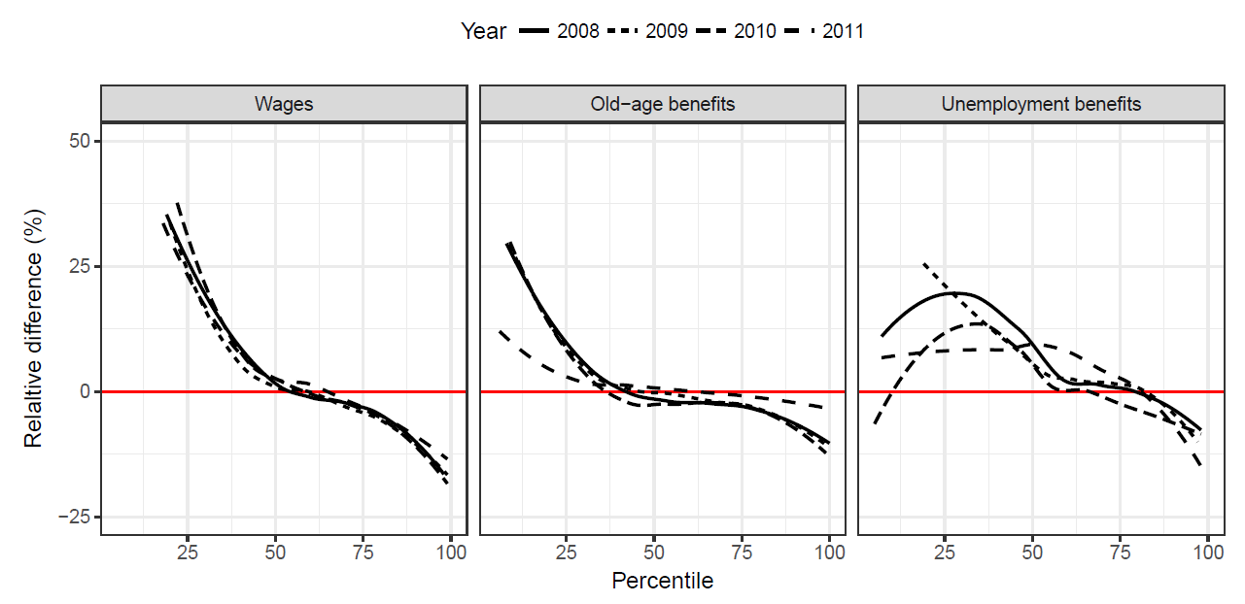

Mean reverting errors

How do we explain the mismatch?

Why should we plot data?

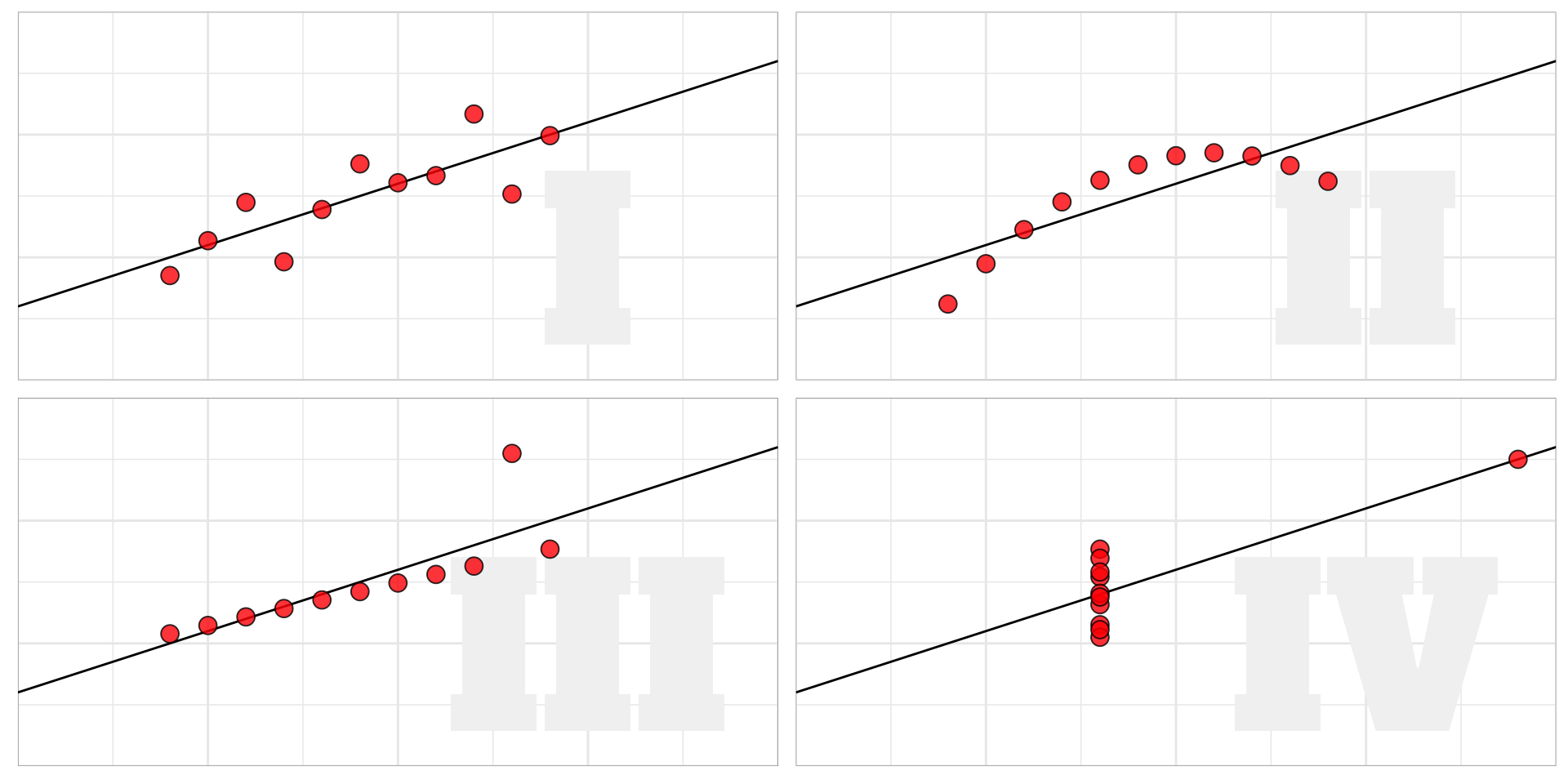

Anscombe’s quartet

I
II
III
IV
Obs. X Y X Y X Y X Y
1 10.00 8.04 10.00 9.14 10.00 7.46 8.00 6.58
2 8.00 6.95 8.00 8.14 8.00 6.77 8.00 5.76
3 13.00 7.58 13.00 8.74 13.00 12.74 8.00 7.71
4 9.00 8.81 9.00 8.77 9.00 7.11 8.00 8.84
5 11.00 8.33 11.00 9.26 11.00 7.81 8.00 8.47
6 14.00 9.96 14.00 8.10 14.00 8.84 8.00 7.04
7 6.00 7.24 6.00 6.13 6.00 6.08 8.00 5.25
8 4.00 4.26 4.00 3.10 4.00 5.39 19.00 12.50
9 12.00 10.84 12.00 9.13 12.00 8.15 8.00 5.56
10 7.00 4.82 7.00 7.26 7.00 6.42 8.00 7.91
11 5.00 5.68 5.00 4.74 5.00 5.73 8.00 6.89
Mean 9.00 7.50 9.00 7.50 9.00 7.50 9.00 7.50
SD 3.32 2.03 3.32 2.03 3.32 2.03 3.32 2.03
Corr 0.82 0.82 0.82 0.82

What do we learn when plotting the data?

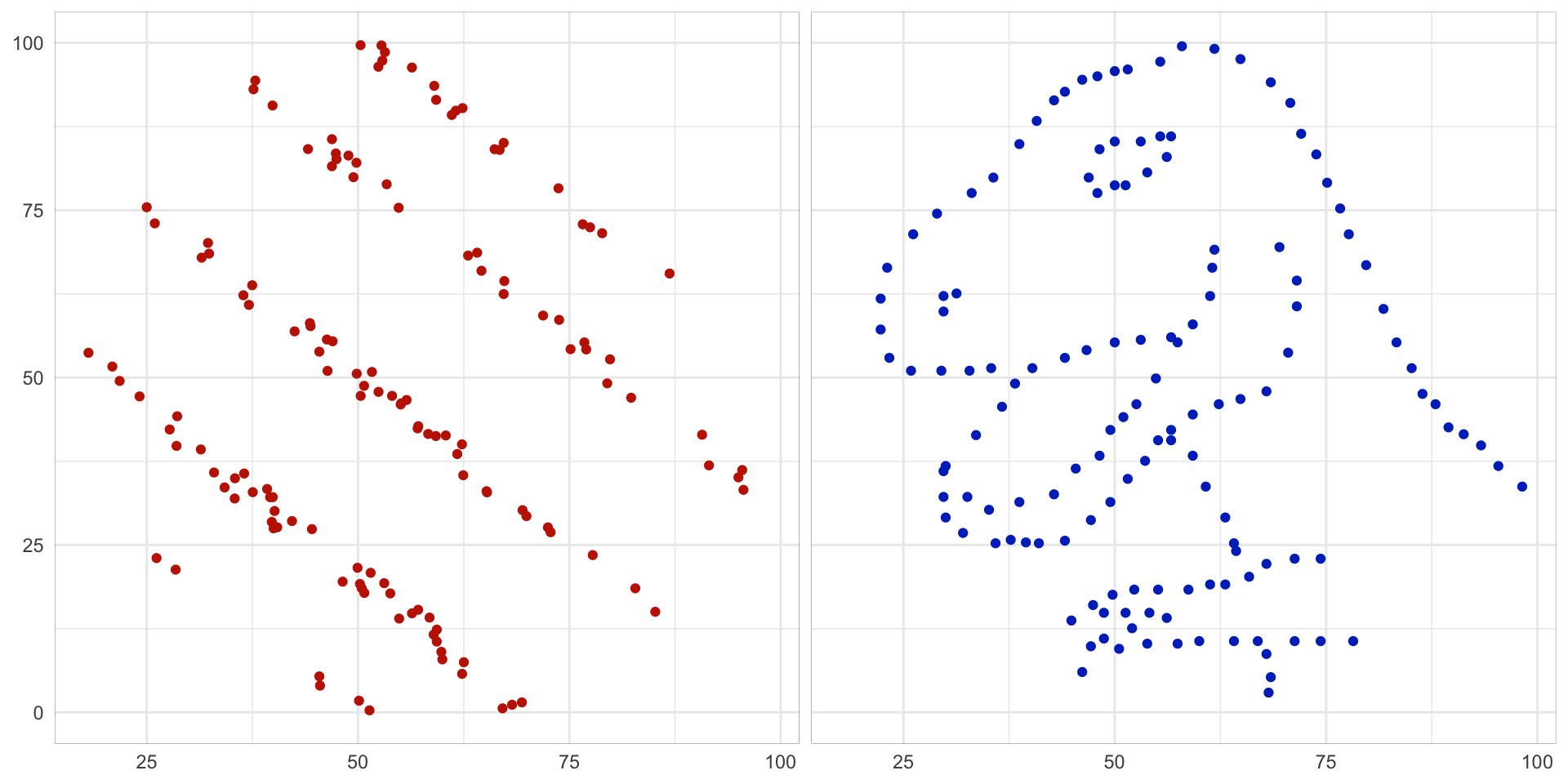

Do you see correlation?

Correlation: -0.07

Correlation: -0.07

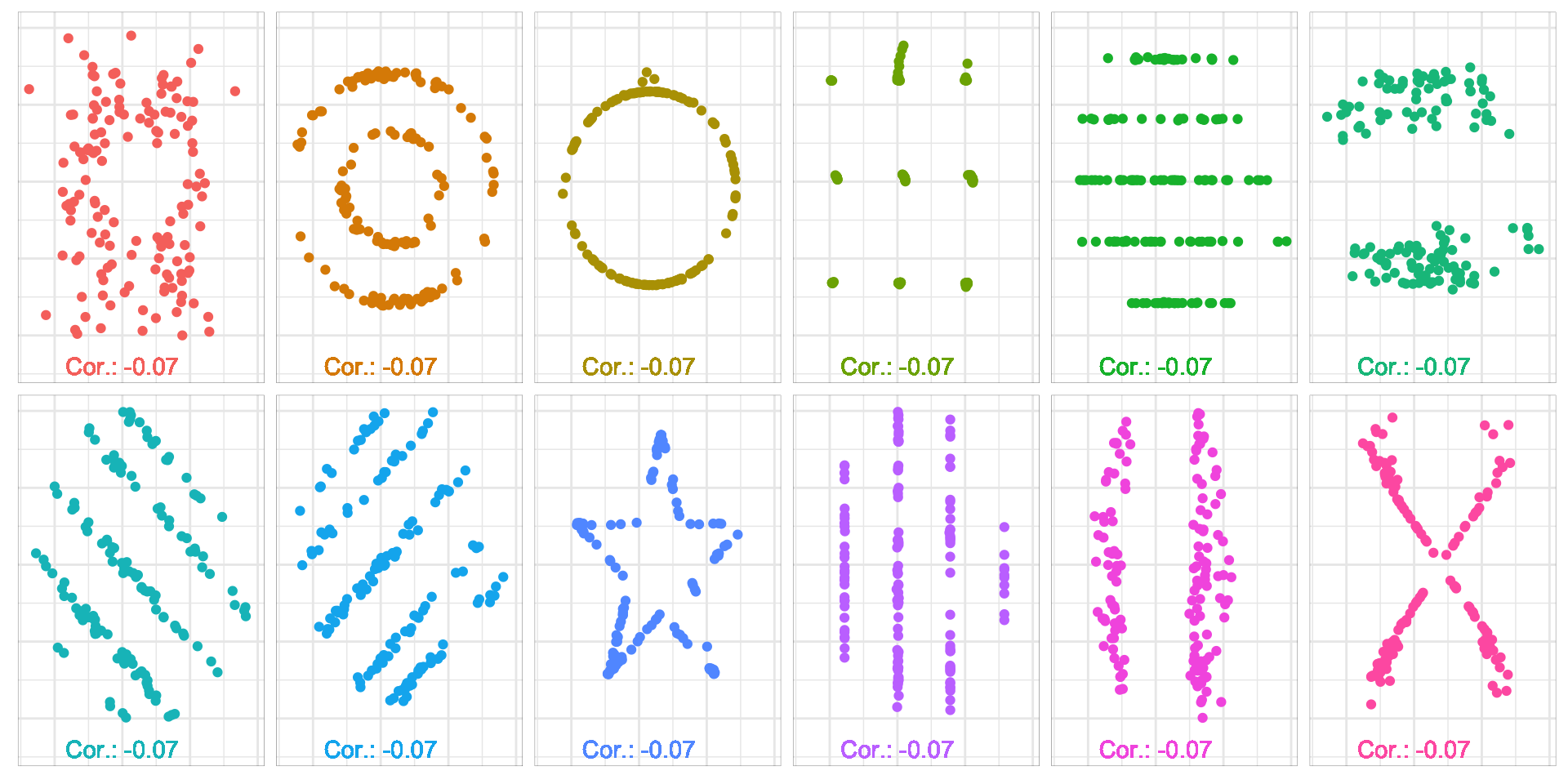

Same same but different

Let’s start coding with the penguins

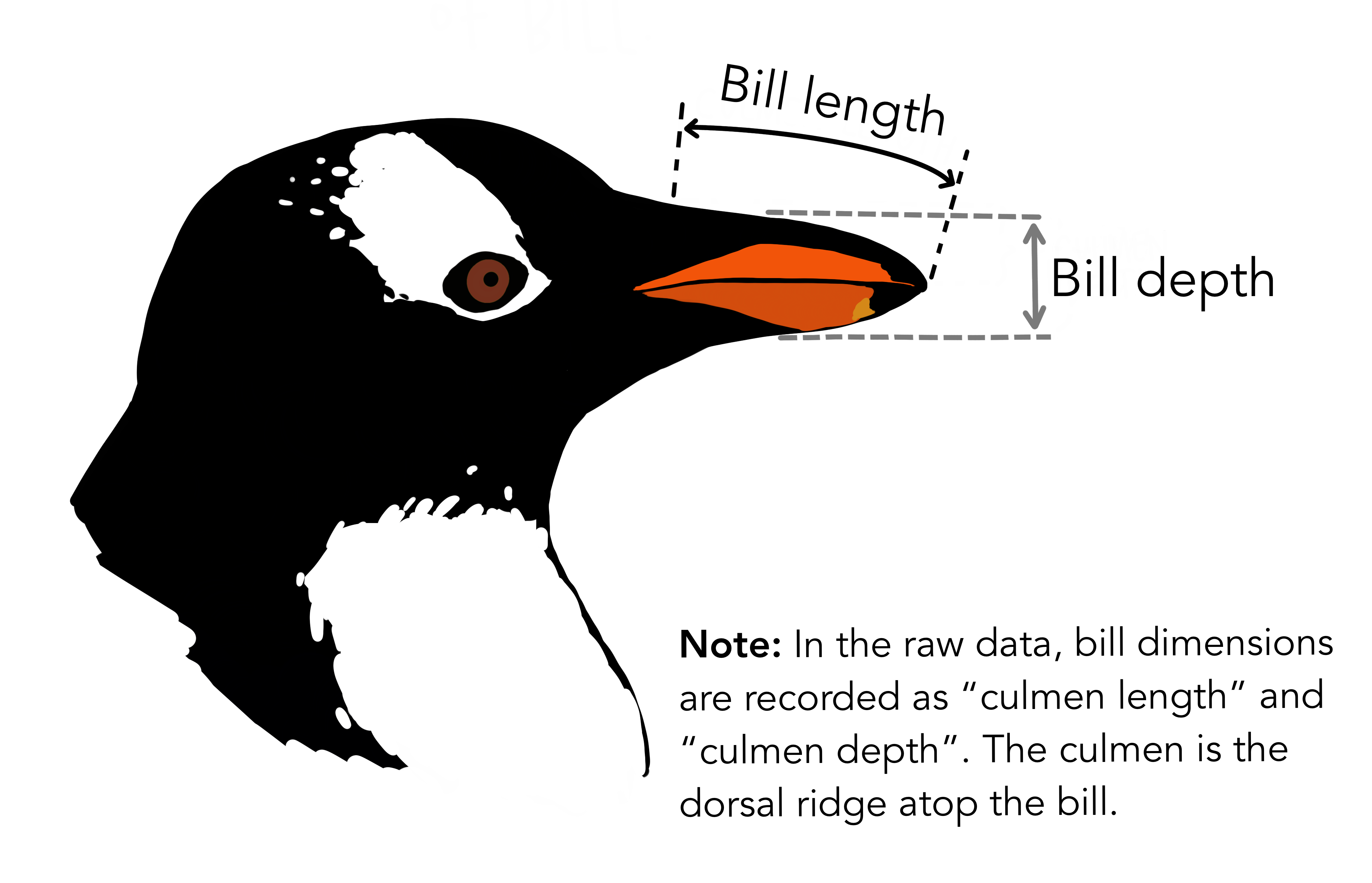

The Palmer Penguins

The data was collected from 2007-2009 by Dr. Kristen Gorman with the Palmer Station Long Term Ecological Research Program. The dataset contains data for 344 penguins. There are 3 different species of penguins, collected from 3 islands in the Palmer Archipelago, Antarctica.

Bibliography

Aichholzer, Julian (2018). Verschiedene Befragungsmodi, Unterschiedliche Ergebnisse? Moduseffekte Und Soziale Erwünschtheit Am Beispiel Wahl Der FPÖ. Österreichische Zeitschrift für Politikwissenschaft, 47(2), 21–33. DOI: 10.15203/OZP.2017.VOL47ISS2
Angel, Stefan/Disslbacher, Franziska/Humer, Stefan/Schnetzer, Matthias (2019). What Did You Really Earn Last Year?: Explaining Measurement Error in Survey Income Data. Journal of the Royal Statistical Society: Series A (Statistics in Society). DOI: 10.1111/rssa.12463
Angrist, Joshua/Azoulay, Pierre/Ellison, Glenn/Hill, Ryan/Lu, Susan Feng (2017). Economic Research Evolves: Fields and Styles. American Economic Review, 107(5), 293–297. DOI: 10.1257/aer.p20171117
Brice, Brandon D./Montesinos-Yufa, Hugo M. (2019). The era of empirical evidence. Mimeo.
Disslbacher, Franziska/Ertl, Michael/List, Emanuel/Mokre, Patrick/Schnetzer, Matthias (2020). On top of the top - adjusting wealth distributions using national rich lists (Working Paper Series No. 20). INEQ.
Gorman, Kristen B./Williams, Tony D./Fraser, William R. (2014). Ecological Sexual Dimorphism and Environmental Variability Within a Community of Antarctic Penguins (Genus Pygoscelis). PLoS ONE, 9(3), e90081. DOI: 10.1371/journal.pone.0090081
United Nations (2011). Canberra group handbook on household income statistics (2nd ed.). Geneva: United Nations.
Vannieuwenhuyze, J./Loosveldt, G./Molenberghs, G. (2010). A Method for Evaluating Mode Effects in Mixed-Mode Surveys. Public Opinion Quarterly, 74(5), 1027–1045. DOI: 10.1093/poq/nfq059
