Economic Policy Visualization

Climate · Facets

Dr. Matthias Schnetzer

June 12, 2023

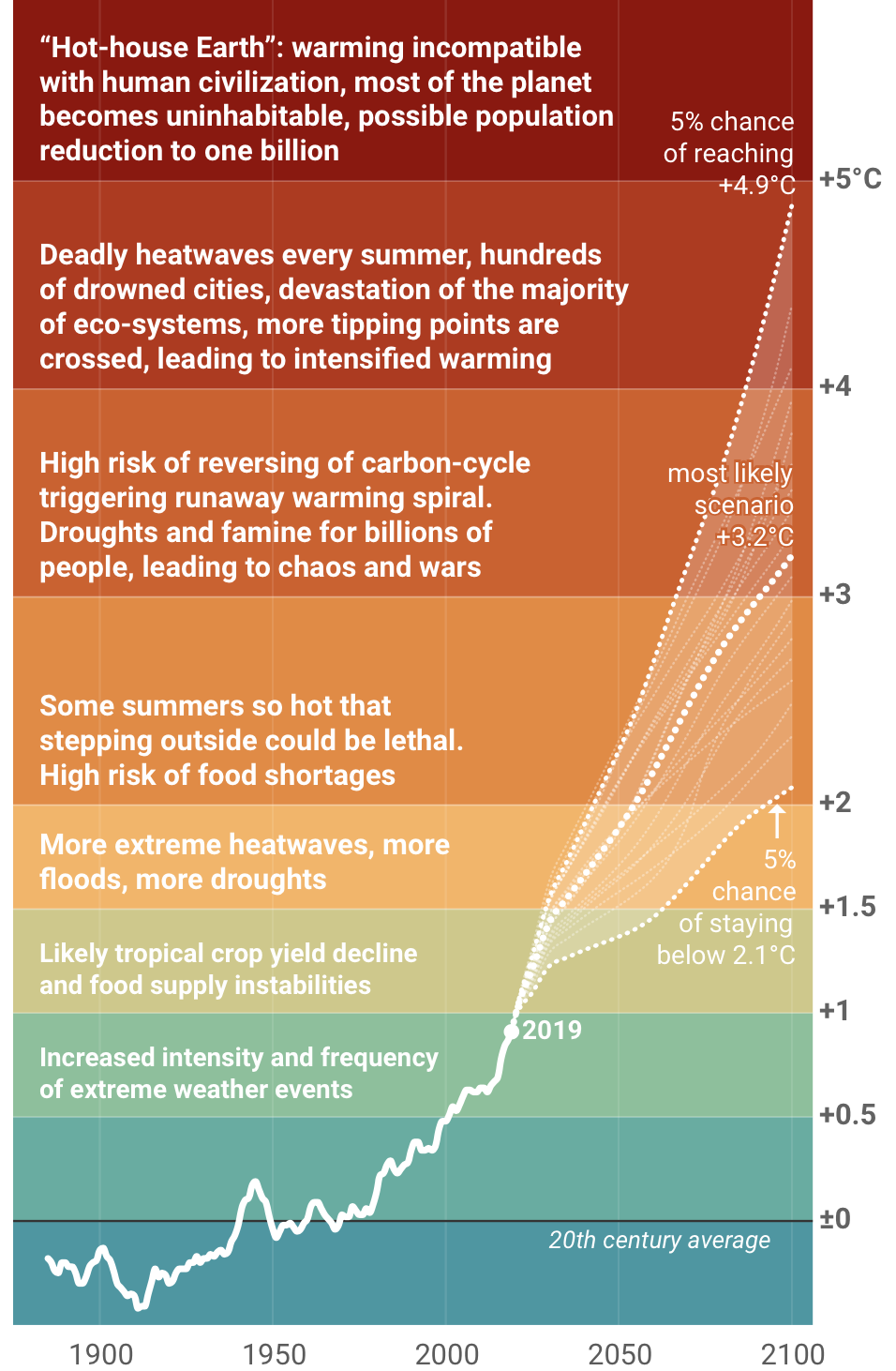

What does global warming mean?

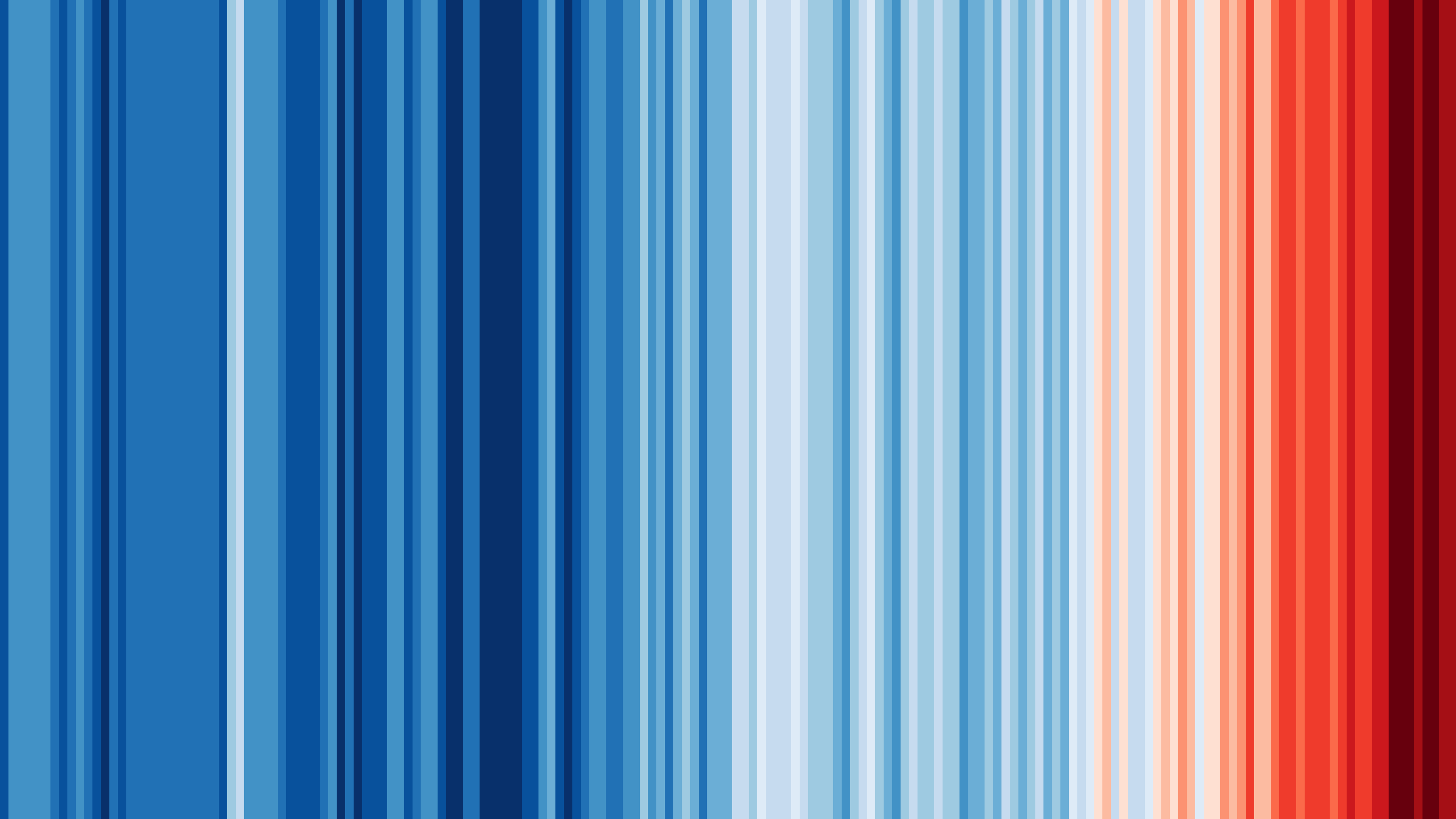

Global warming stripes for 1850-2022

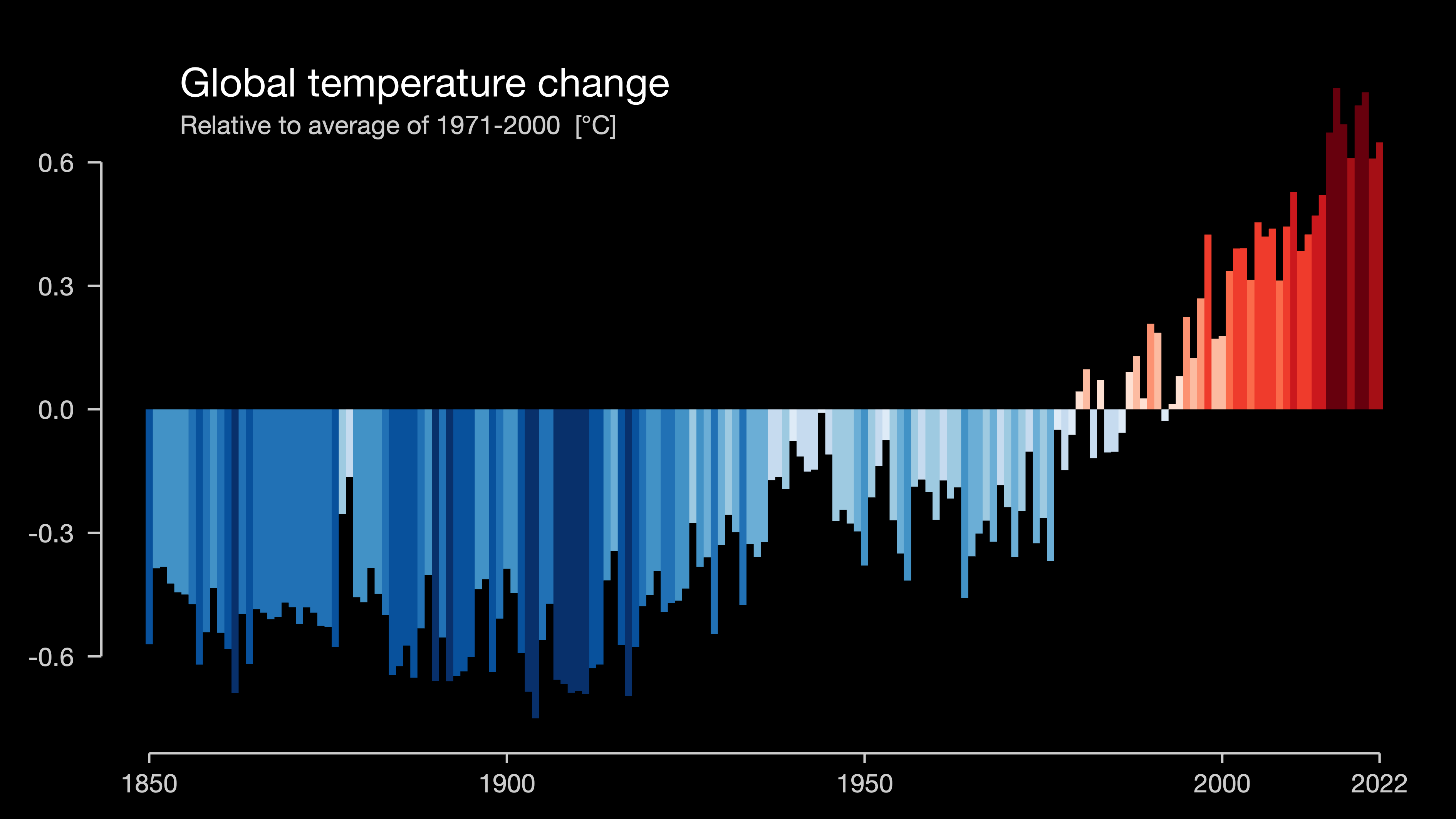

Global warming stripes explained

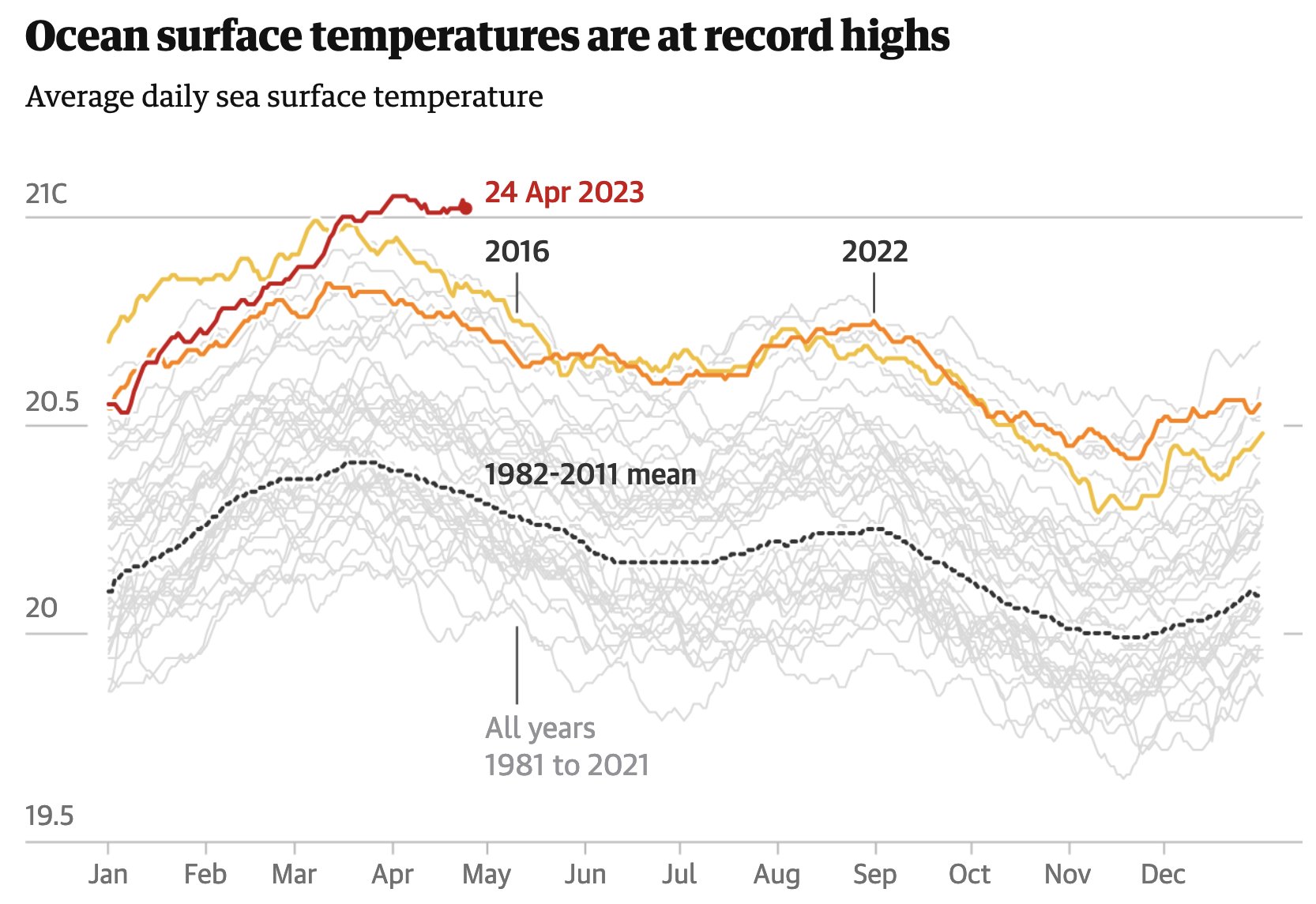

Ocean surface temperature at record high

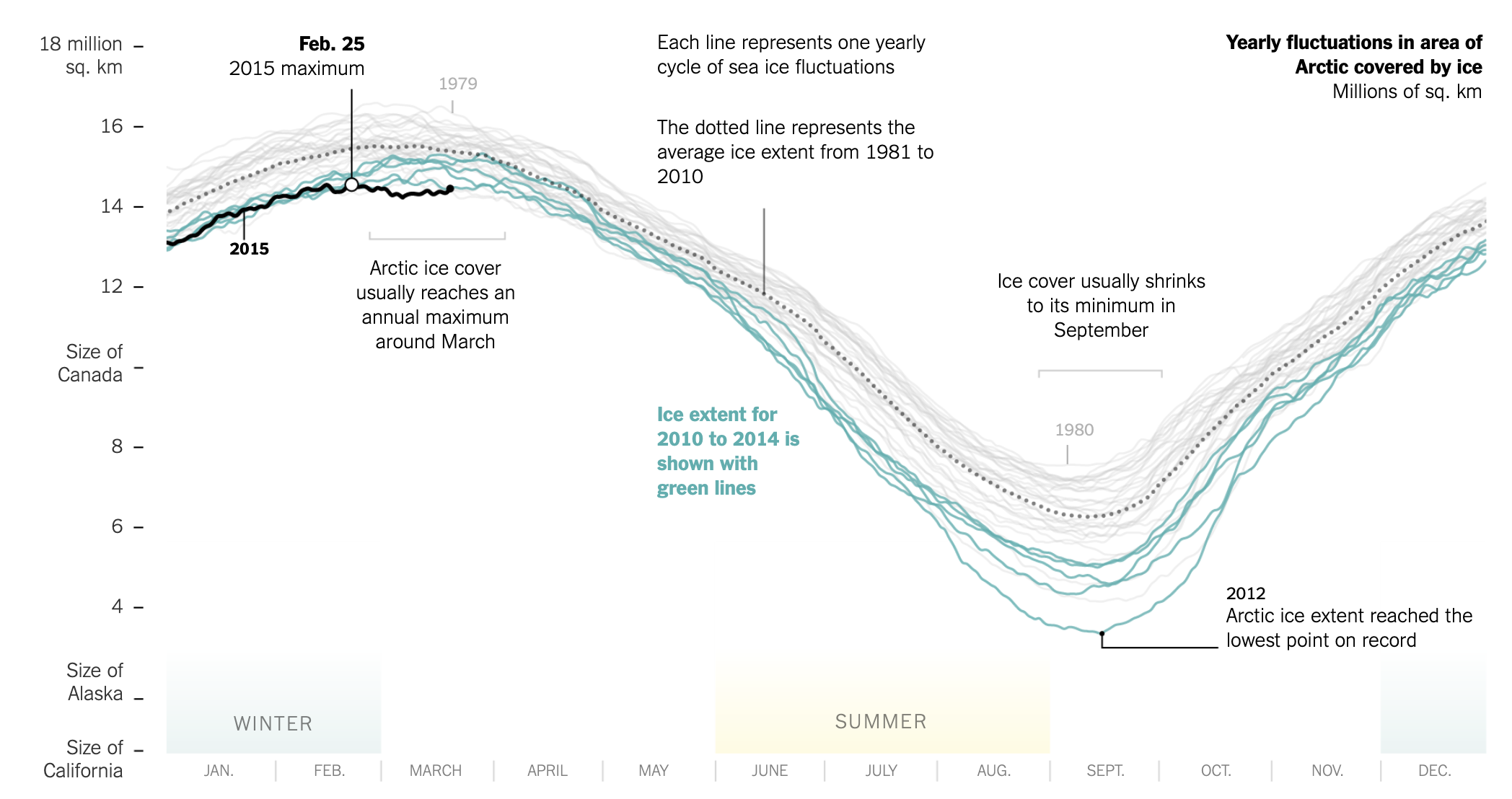

Arctic ice at record low

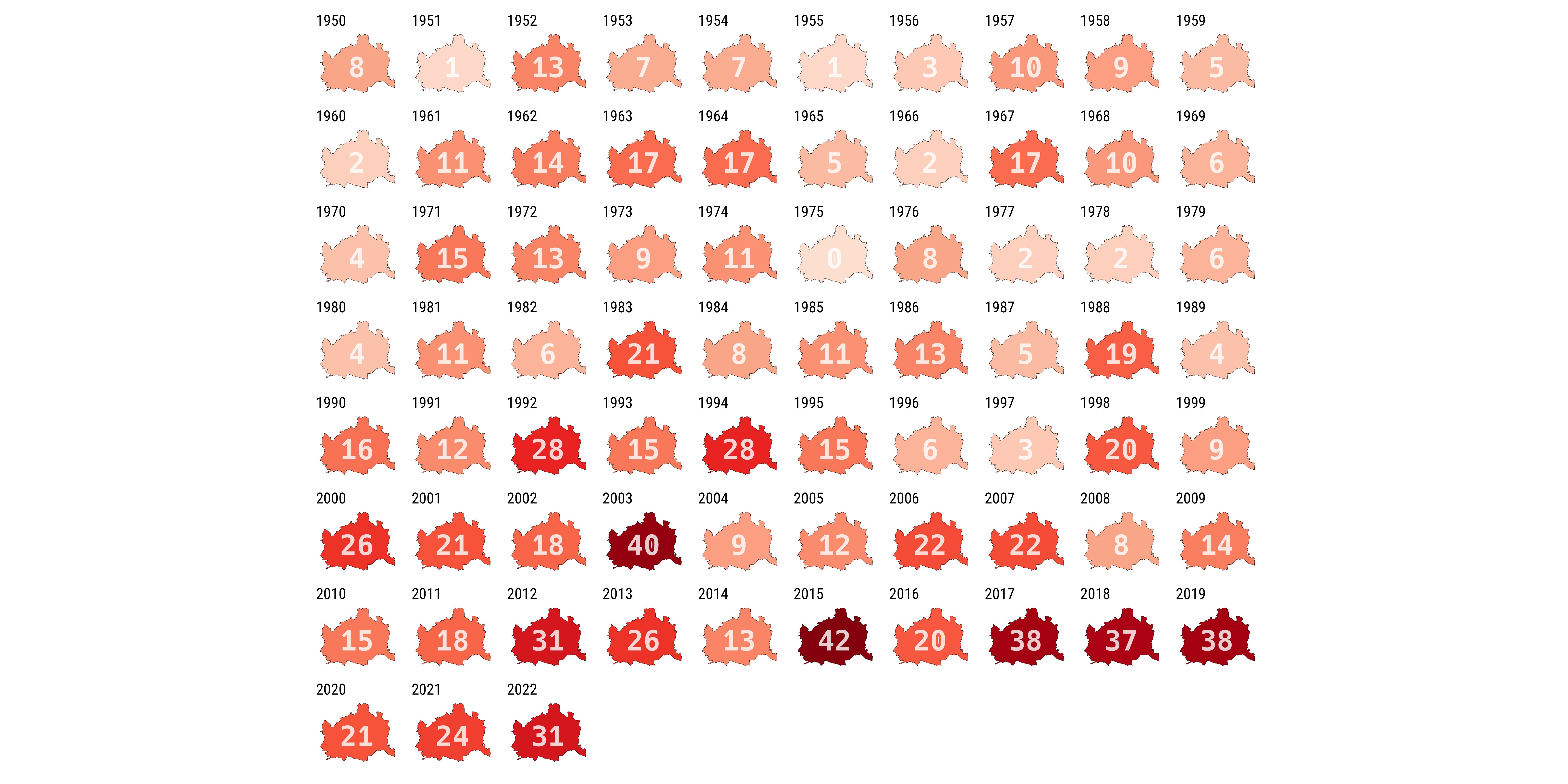

Number of very hot days (+30°C) in Vienna

What is ecological economics?

  • Economics of natural resources has a long history dating back to classical economists like Malthus and the phyisocrats where land is source of wealth
  • 1960s: Revival of Pigou’s concept of externalities to describe pollution
  • 1970s: Are there limits to growth? (Meadows et al., 1972)
  • 1980s: Institutionalization of ecological economics with establishment of the International Society for Ecological Economics in 1988 (Røpke, 2004)
  • Ecological economics addresses the interdependence and coevolution of human economies and natural ecosystems

Climate in economic policy

  • Ecological sustainability is no explicit goal in traditional economic policy frameworks
  • Climate and the environment are addressed in several SDGs, like in SDG 7 (clean energy) or SDG12 (responsible consumption & production)
  • SDG 13: “Take urgent action to combat climate change and its impacts” but only vague targets
  • The UN “Paris agreement” of 2015 is a legally binding treaty to limit the temperature increase to 1.5°C above pre-industrial levels and to reduce global emissions by 43% by 2030.

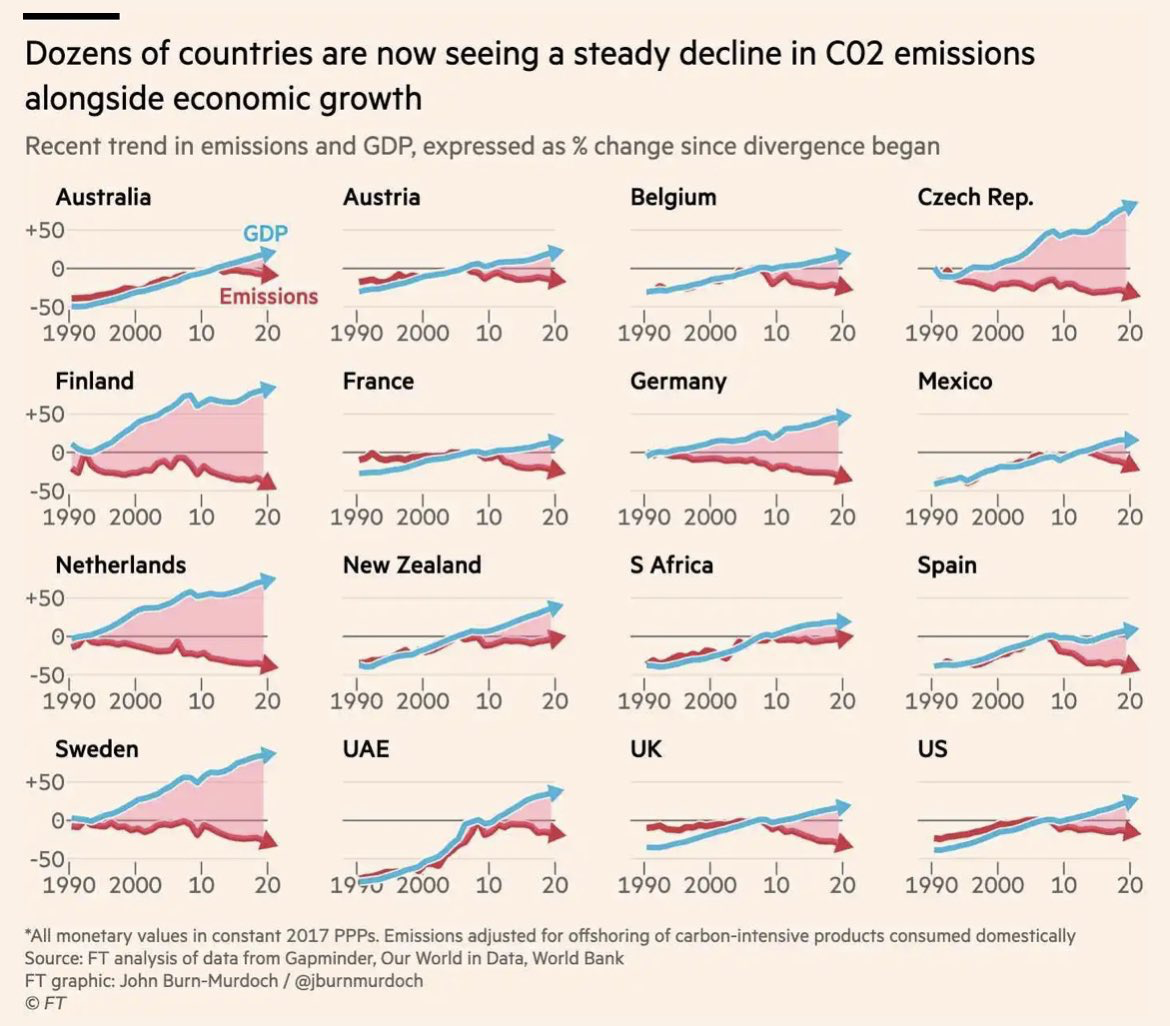

Decoupling growth from emissions

Attention!

  • Consumption-based versus production-based emissions!
  • These countries represent less than 15% of global population and less than 30% of global emissions!
  • Global emissions still continue to rise!

Climate crisis and inequality

  • There is ample evidence of inequality in (consumption-based) greenhouse gas emissions. However, studies typically find emissions inequality being smaller than income or wealth inequality.
  • 20 global billionaires emit 164,000 tons of CO2e whereof two thirds origin from their yachts only. The global average is 5 tons per capita, thus 20 indiviuals emit 100 tons. (Barros/Wilk, 2021)
  • In the EU, top 1% of households emit 22 times the per capita climate target of 2.5 tons of CO2e. Only 5% of EU households live within the targets. (Ivanova/Wood, 2020)
  • In Austria, the top decile in the income distribution emits 4 times more than the bottom decile. (Theine et al., 2022)

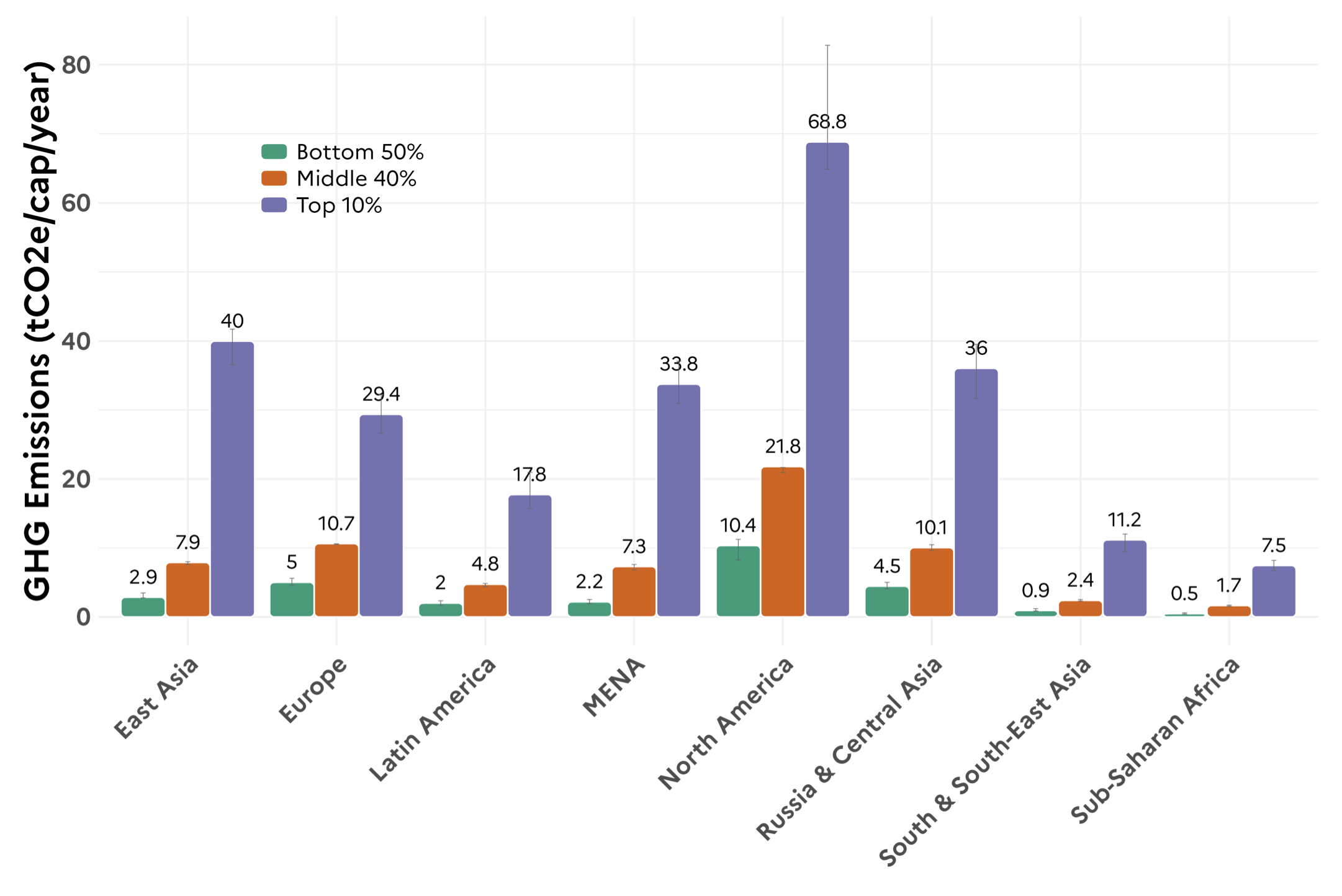

Global emissions inequality

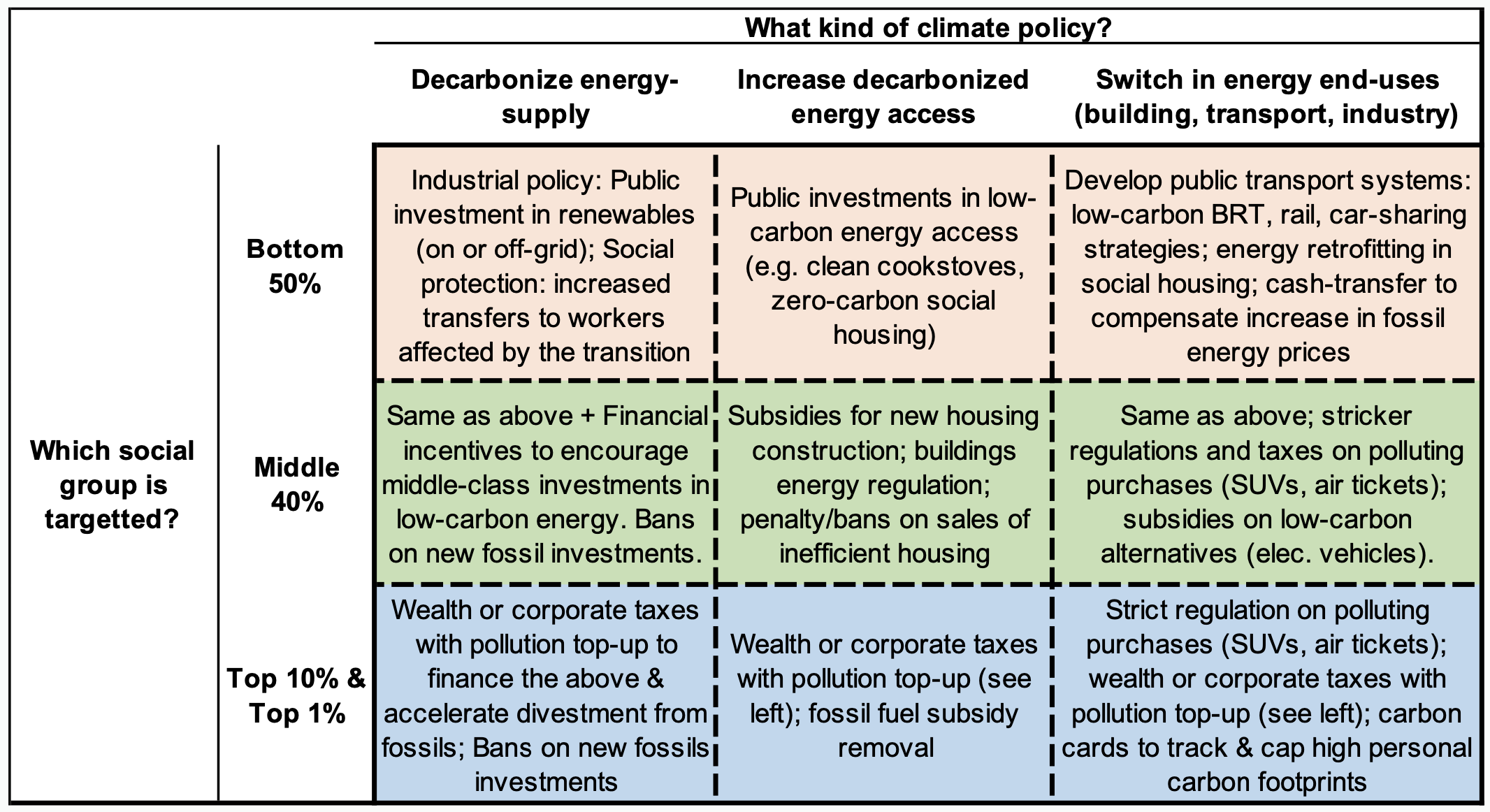

A framework for climate policy

Facets

What are facets?

Facets show small multiples (or subplots) for different subsets of data


Code Result
facet_wrap(~continent) Plot for each continent
facet_wrap(continent ~ year) Plot for each continent/year
facet_wrap(…, ncol = 1, nrow = 1) Specify grid layout with columns and rows
facet_wrap(…, scales = “fixed”) Specify fixed axis, alternatively “free_x” or “free_y”
facet_wrap(…, dir = “h”) Direction of facets, horizontal (“h”) or vertical (“v”)
facet_wrap(…, strip.position = “top”) Positioning of the facet labels (strips)

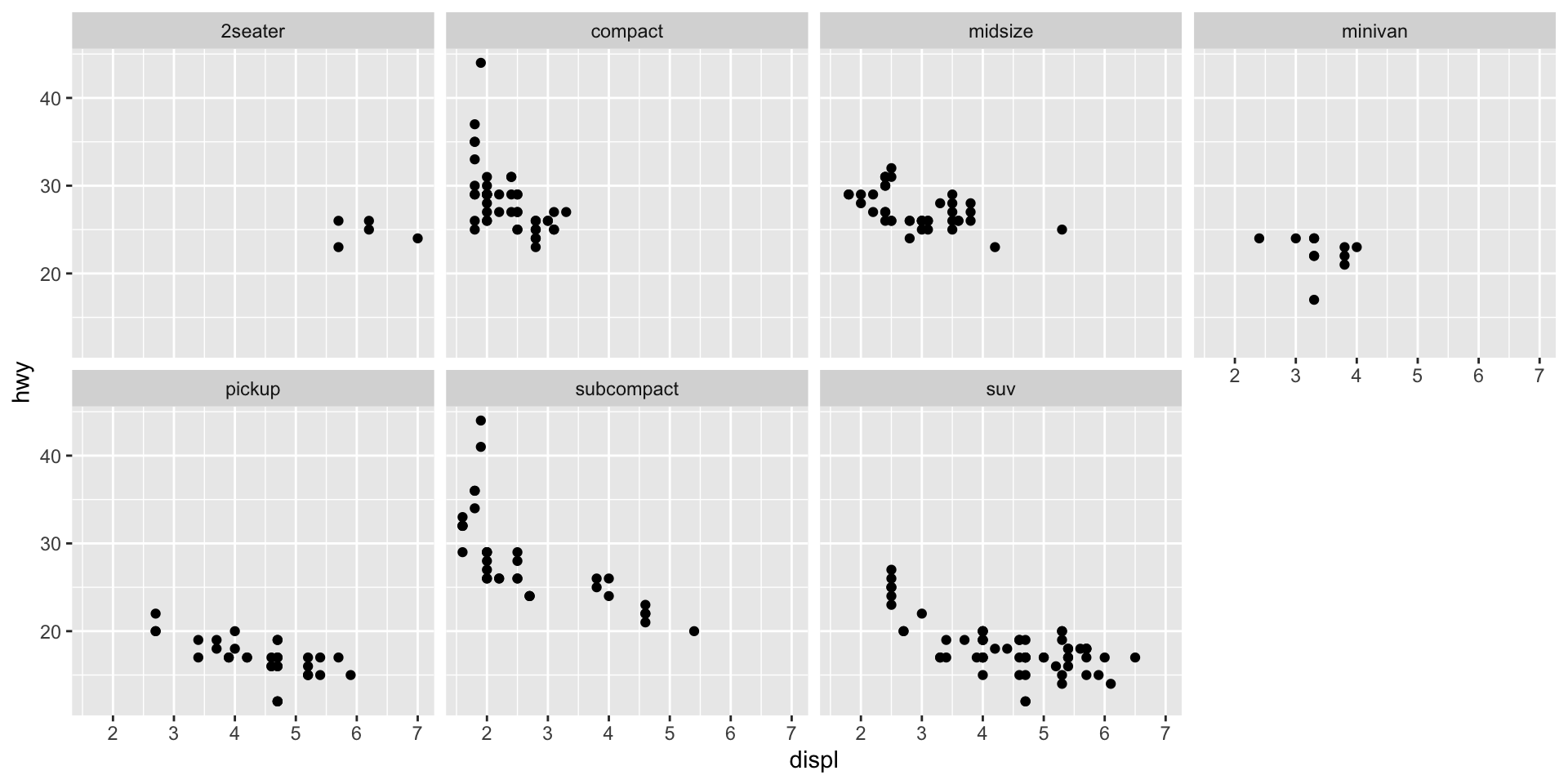

Create facets by a variable of interest

ggplot(data = mpg) +
  geom_point(aes(x = displ, y = hwy)) +
  facet_wrap(~class, nrow = 2)

Bibliography

PI 5620 Advanced Economic Policy | Summer term 2023

Barros, Beatriz/Wilk, Richard (2021). The outsized carbon footprints of the super-rich. Sustainability: Science, Practice and Policy, 17(1), 316–322. DOI: 10.1080/15487733.2021.1949847
Chancel, Lucas/Bothe, Philipp/Voituriez, Tancrède (2023). Climate inequality report. World Inequality Lab Study 2023/1.
Ivanova, Diana/Wood, Richard (2020). The unequal distribution of household carbon footprints in europe and its link to sustainability. Global Sustainability, 3(e18), 1–12. DOI: 10.1017/sus.2020.12
Meadows, Dennis L./Meadows, Donella/Randers, Jørgen/Behrens, William W. (1972). The limits to growth. Universe Books, New York.
Røpke, Inge (2004). The early history of modern ecological economics. Ecological Economics, 50(3-4), 293–314. DOI: 10.1016/j.ecolecon.2004.02.012
Theine, Hendrik/Humer, Stefan/Moser, Mathias/Schnetzer, Matthias (2022). Emissions inequality: Disparities in income, expenditure, and the carbon footprint in austria. Ecological Economics, 197, 107435. DOI: 10.1016/j.ecolecon.2022.107435
